Antelope Audio Orion 32+ Gen 3 Audio Interface

Orion32+ | Gen 3

64-channel Thunderbolt™ and 32-channel USB AD/DA Audio Interface





The world’s first 32-channel AD/DA converter just got a lot better! The Orion 32+’s proven flexibility and exemplary sound quality have been expanded even further with upgraded, industry-leading conversion and a major facelift. Like its predecessor, the Orion 32+ | Gen 3 stands ready to take over studios and live shows across the globe once again.



Major improvement in the Line Out DACs & Line In ADCs



D/A Monitor Converter

• Dynamic Range: 129 dB
• THD + N: -108 dB

D/A Converters

• Dynamic Range: 120 dB
• THD + N: -107 dB

A/D Converter

• Dynamic Range: 121 dB
• THD + N: -112 dB

Line Input / Output levels

• Now 24dBU max



Refined looks

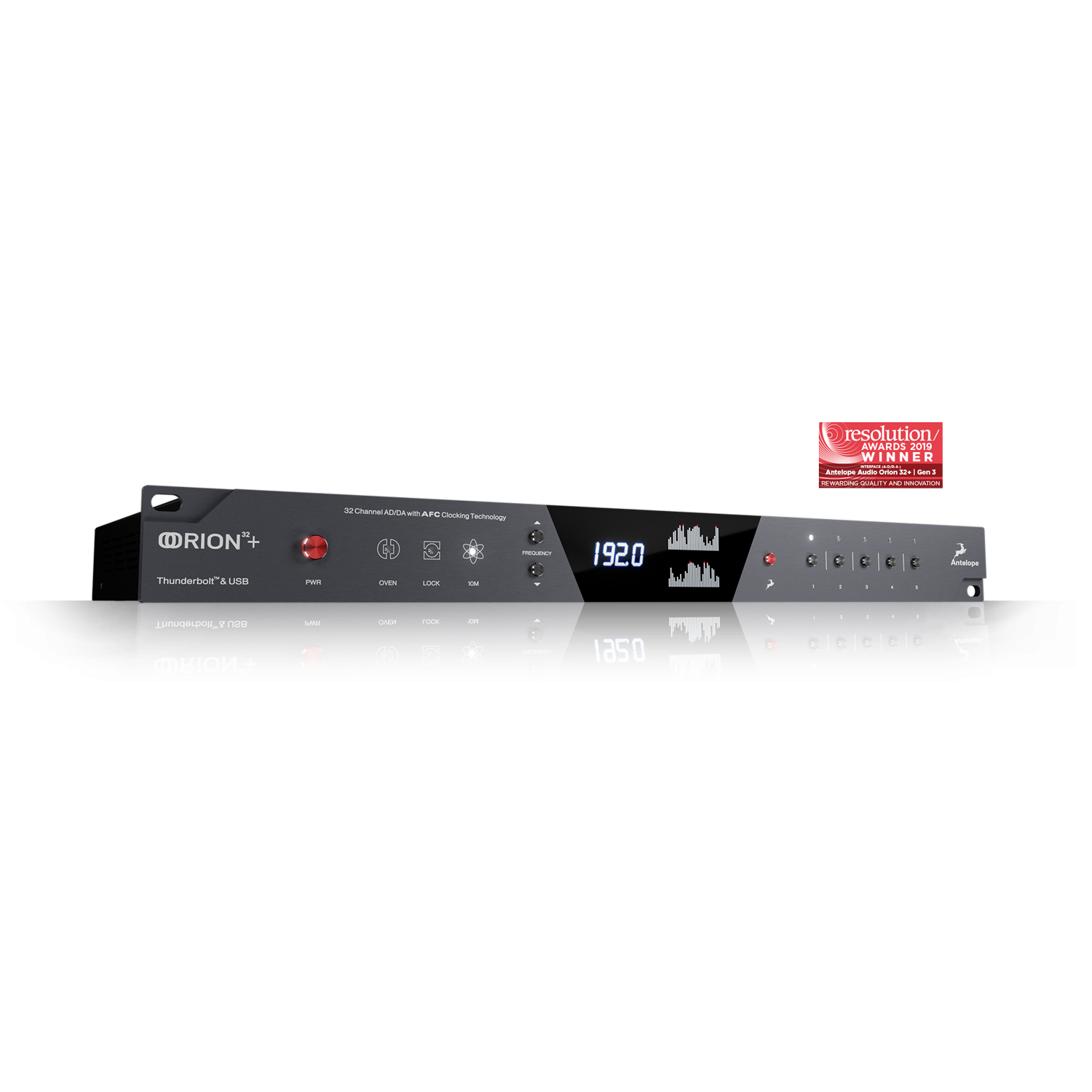

A gorgeous Carbon Grey faceplate adorns the Orion 32+ | Gen 3’s front panel.



Key Product Features



• FPGA-based real-time FX models of iconic studio gear

• 64 channels of 24-bit, 192 kHz audio via Thunderbolt^TM / 32 channels via USB

• Thunderbolt^TM, MADI, USB, ADAT, S/PDIF, 8x DB25 connectivity

• Flawless 4th Generation 64-bit clocking and jitter management

• Networking Control from multiple computers

• Routing, mixing, and effects chaining via macOS & Windows app



Explore Vintage Studio Equipment

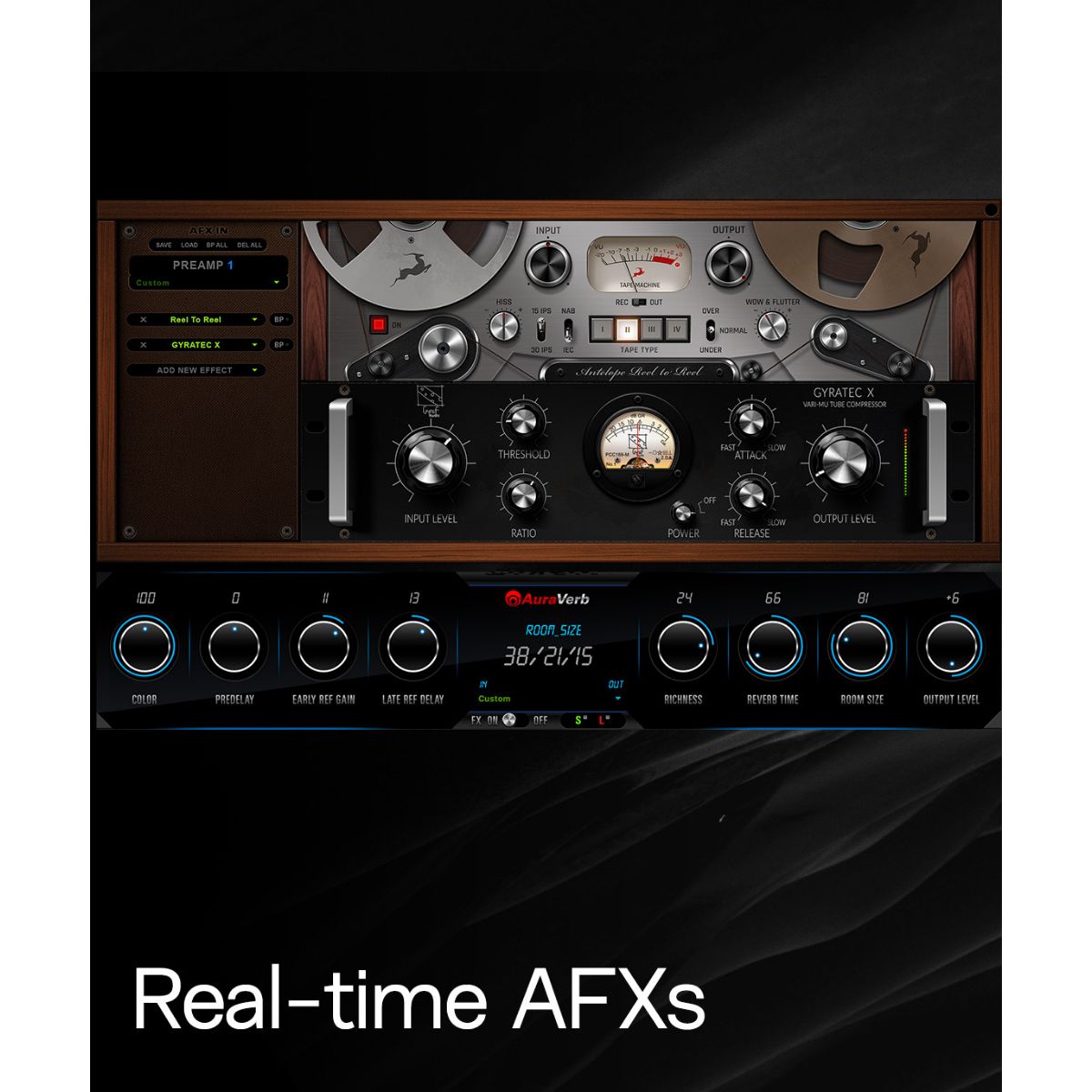

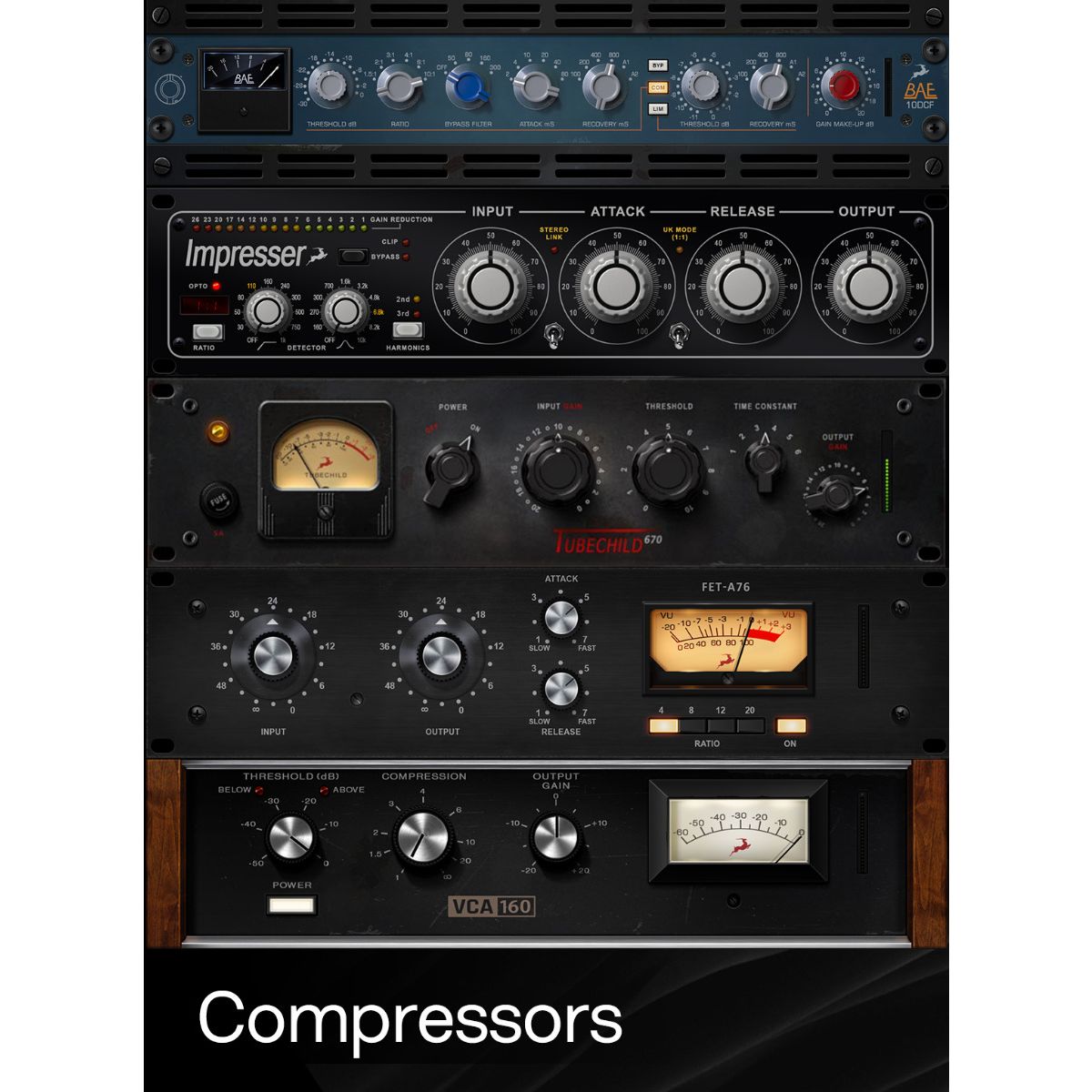

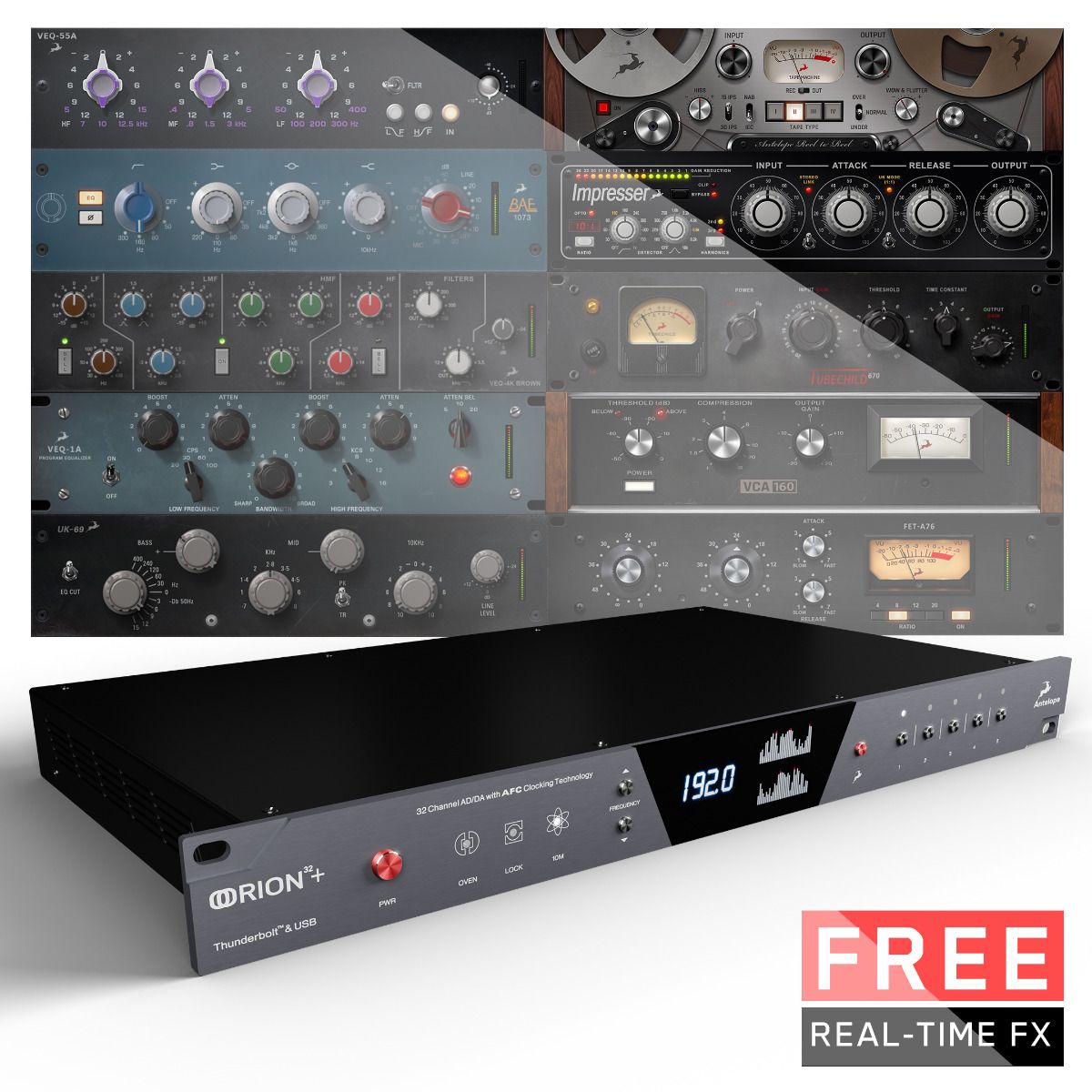

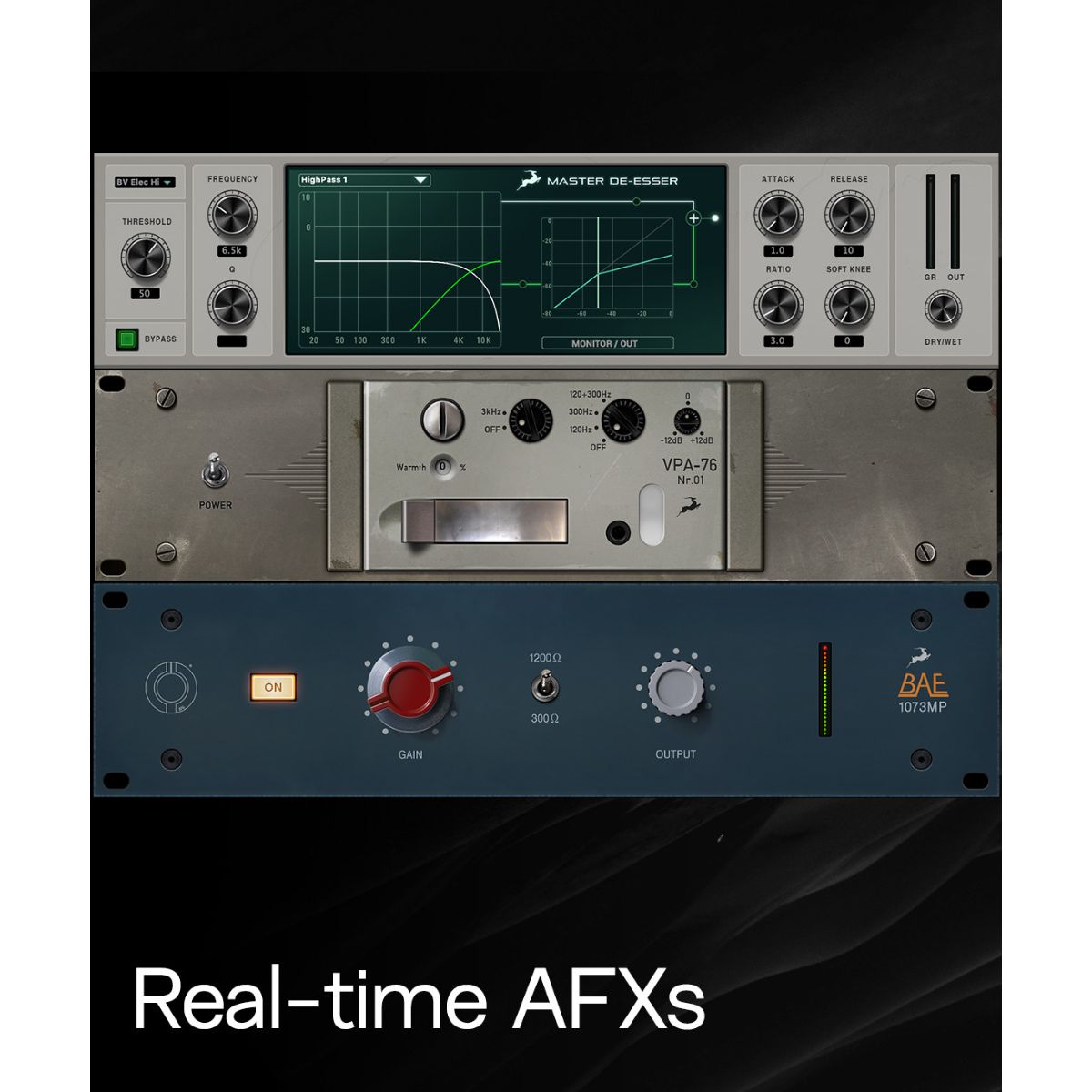

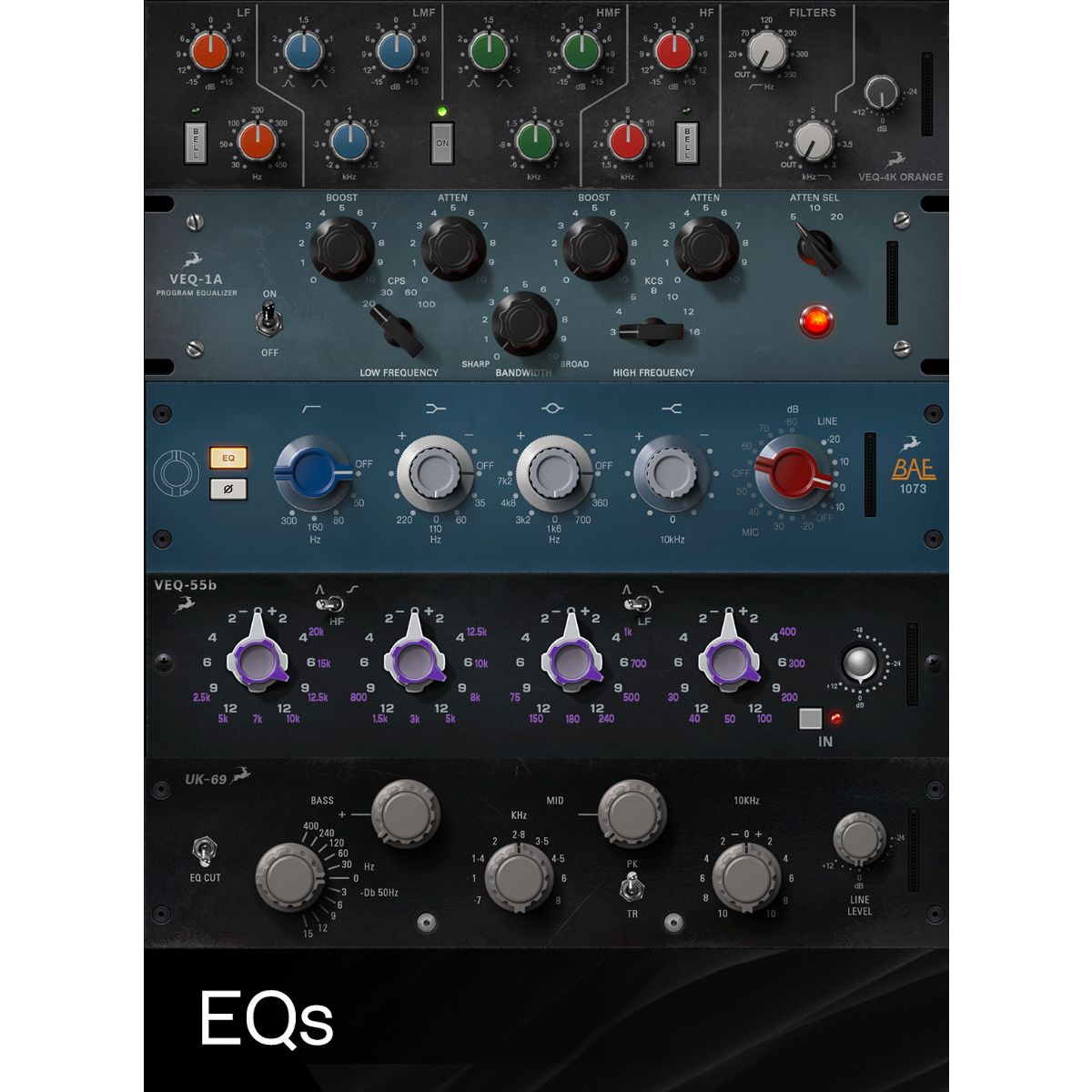

The Orion 32+ | Gen 3 features a suite of essential effects from Antelope Audio’s vast library of FPGA FX models. Customers can purchase additional effects as they deem fit, as well as invest in the AFX2DAW software bridge which lets them use on-board processed, low-latency effects as inserts in their preferred digital audio workstation.



64-CHANNELS OF AUDIO VIA THUNDERBOLT™

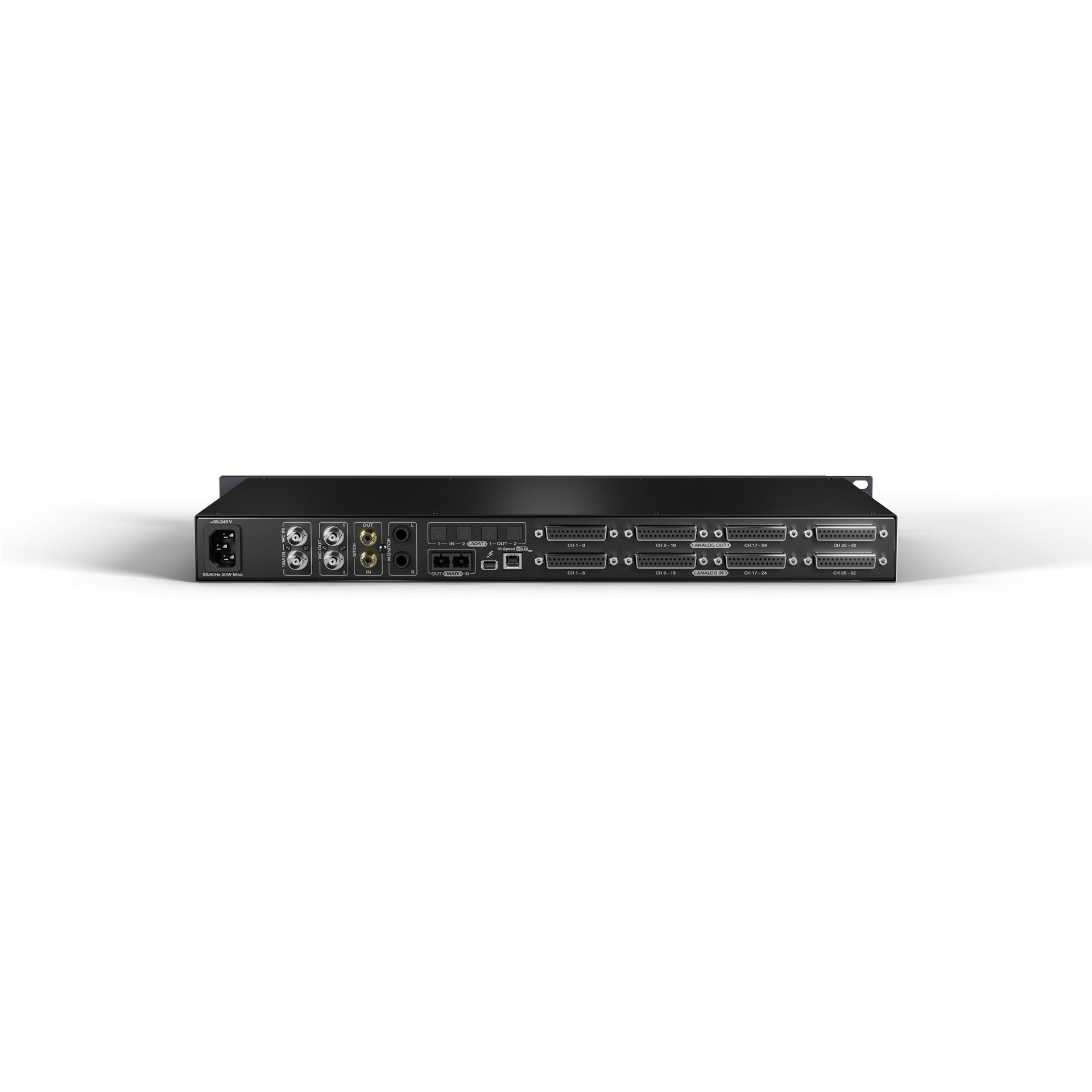

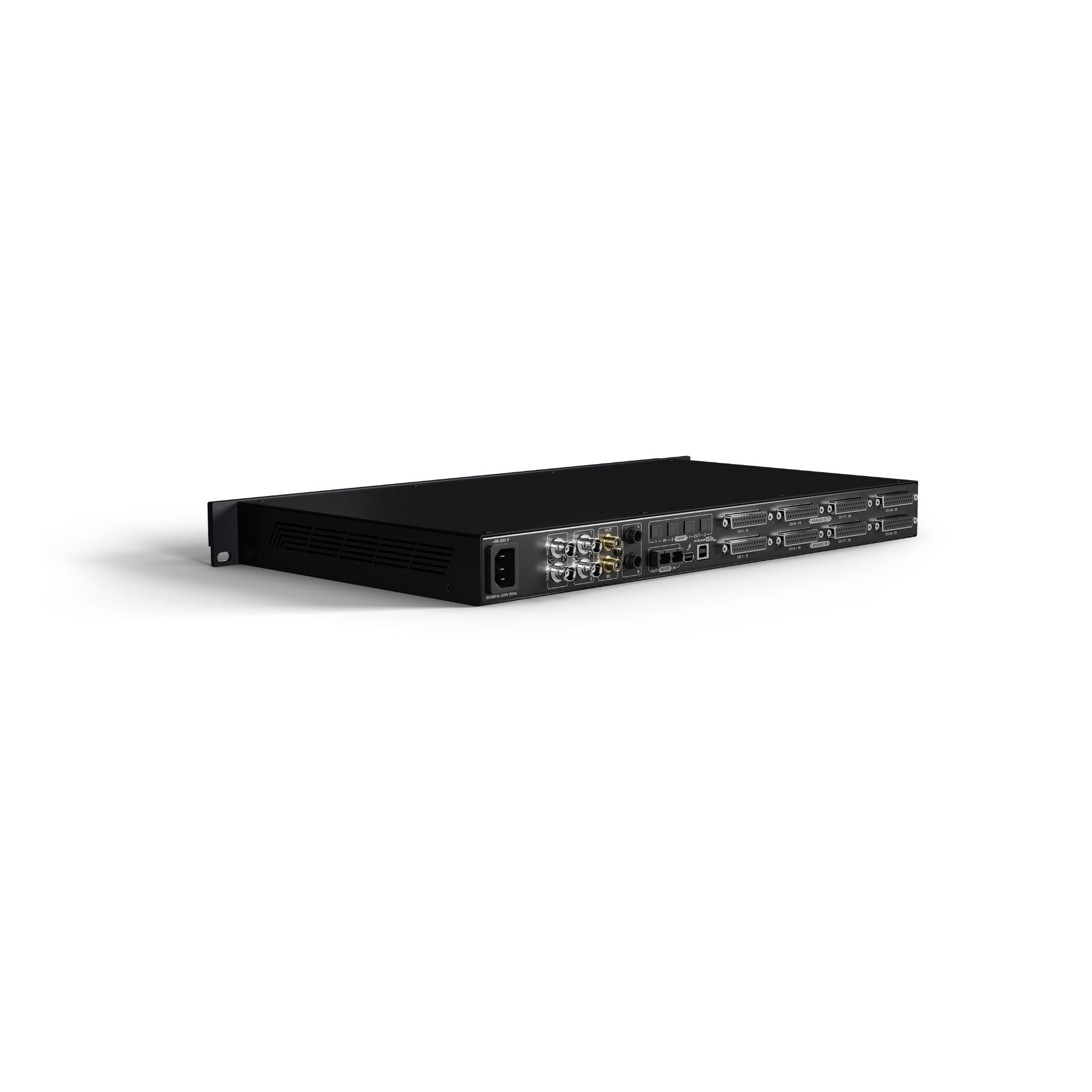

Orion 32+ | Gen 3 provides seamless connectivity to any DAW, with low-latency, simultaneous streaming of 64 channels of 24-bit, 192 kHz audio via Thunderbolt^TM and 32 channels via USB. The analog I/O are handled by 8 DB25 connectors and a pair of TRS connectors for monitoring. Digital connectivity options are complemented by ADAT and S/PDIF.



EXTENSIVE FLEXIBILITY

Orion 32+ | Gen 3 offers extensive flexibility for excellent productivity. A color-coded software routing matrix with four separate mixers, effects chaining, and zero latency monitoring is provided. The routing matrix, mixers, and control panel are found within an intuitive desktop application for macOS and Windows.



HIGH-END CLOCKING & CONVERSION

Digital clarity meets analog musicality to form the signature Antelope Audio sound.

Our proven clocking accuracy is ensured by Antelope’s renowned 64-bit Acoustically Focused Clocking (AFC) jitter management technology. A 10 MHz input enables connectivity to Antelope’s legendary 10M Atomic Clock and its successor 10MX. That, and a pair of word clock outputs make the Orion 32+ | Gen 3 a great fit in any setup - not just as an interface, but as a premium master clock as well.



REDESIGNED SOFTWARE PANEL

Control all Orion 32+ | Gen 3 features and functionality from its intuitive desktop app. macOS and Windows compatible, it implements Antelope Audio’s networking control concept to let you access the interface from multiple computers in the same network. For added convenience and flexibility, the control panels are freely movable and resizable, facilitating multi-screen workflows.



SPECIFICATIONS



ANALOG

Analog Inputs

• 4 x D-SUB 25 (32 channels total), +24 dBu max, 11.2 kOhms

Analog Outputs

• 4 x D-SUB 25 (32 channels total), +24dBu, 56 Ohms
• 2 x Monitor Outs on TRS 1/4 Jacks

D/A Monitor Converter

• Dynamic Range: 129 dB
• THD + N: -108 dB

A/D Converter

• Dynamic Range: 121 dB
• THD + N: -112 dB

D/A Converters

• Dynamic Range: 120 dB
• THD + N: -107 dB



DIGITAL

Digital Inputs

• 1 x Fiber Optic MADI (up to 64CH)
• 2 x ADAT (up to 16CH)
• 1 x S/PDIF

Digital Outputs

• 1 x Fiber Optic MADI (up to 64CH)
• 2 x ADAT (up to 16CH)
• 1 x S/PDIF



USB I/O

• USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
• 32 channels I/O, Type B

Thunderbolt™

• 1 x Thunderbolt™ (64 channels I/O)

CLOCKING

Word Clock Input

• 1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Word Clock Outputs

• 2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Atomic Clock Input

• 1 x 10M Input @ 75 Ohms 1Vpp on BNC

Clocking System

• 4th Generation Acoustically Focused Clocking
• 64-bit DDS
• Oven Controlled Crystal Oscillator

Clock Stability

• <+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF

Clock Aging

• < 1 ppm per year

Clock Calibration

• < +/-0.001 ppm

Sample Rates (kHz)

• 32, 44.1, 48, 88.2, 96, 176.4, 192

OTHER

Operating Temperature

• 0-50°C, 32-122°F

Weight (Approx)

• 3kg/ 6.6 lbs

Dimensions (Approx)

• Width: 483 mm / 19”
• Height: 44 mm / 1.75”
• Depth: 220 mm / 8.66”

Electrical specs

• AC Universal input: ~95-245 V
• Power Consumption: 20 Watts Max

In the box

• Orion 32+ | Gen 3 - 32-channel AD/DA Interface with AFC™ Clocking Technology
• Warranty Card
• Power cable
• USB cable
