AMX NMX-ENC-N1115-WP-WH N1000 Series AV Over IP Decor Style Wallplate
Share
- Brand new in original box
- Full AMX manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- FGN1115-WP-WH
Description

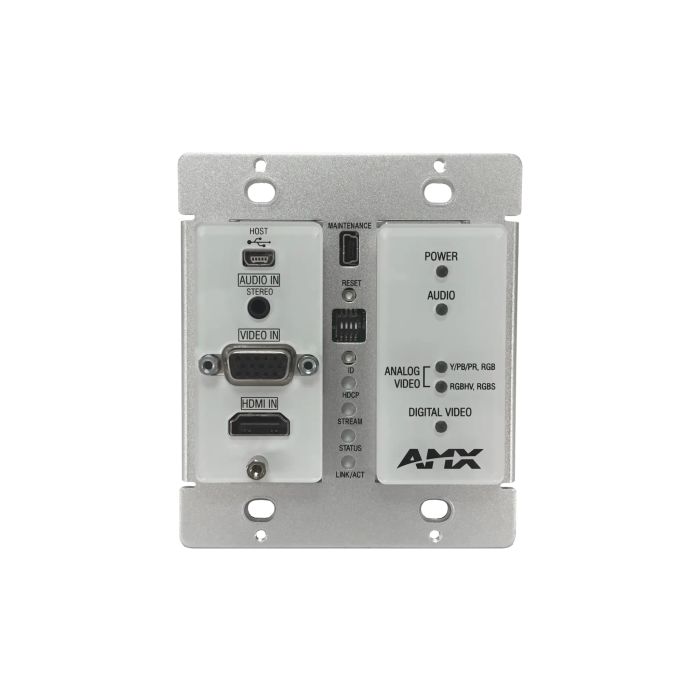

AMX NMX-ENC-N1115-WP-WH N1000 Series AV Over IP Decor Style Wallplate Encoder with KVM in White
The AMX N1000 Series encoder mounts directly into a standard wall plate, keeping your venue control and AV infrastructure out of sight. This decor-style wallplate design eliminates the need for separate rack equipment while delivering professional-grade AV-over-IP encoding with integrated KVM control in a single unified device—ideal for live venues, broadcast setups, and touring installations where rack space is premium or aesthetics matter.
Installation & Form Factor
Built for direct wall integration using a standard 2-gang US back box, this encoder mounts flush without requiring additional cabinetry or external hardware. The wallplate design keeps control rooms, monitor stations, and front-of-house setups clean and organized while consolidating network connectivity, power, and video inputs behind a single faceplate. Straightforward installation gets you up and running without major infrastructure changes.
Video Processing & Network Transport
The encoder handles WUXGA (1920 × 1200) resolution video with 10 ms combined encode/decode latency at 60 fps, delivering responsive, real-time AV distribution over standard network infrastructure. This low-latency performance is critical for live sound and AV operations where timing between cameras, monitors, and playback systems directly impacts your show.
Key Features
- Maximum video resolution: 1920 × 1200 (WUXGA)
- Form factor: Decor-style wall-mountable wallplate encoder
- Mounting: Standard 2-gang US back box installation
- Video inputs: 1 HDMI port + 1 VGA port
- USB ports: 2 USB connections for peripheral and KVM control
- Latency: 10 ms combined encode/decode at 60 fps
- Connectivity: Single category cable for power and network via RJ-45
- Integrated KVM: Keyboard, video, and mouse control functionality
- Video graphic mode: Full WUXGA support
- Network protocol: Standard wired RJ-45 Ethernet connectivity
The N1000 Series encoder delivers enterprise-class AV-over-IP encoding with the discrete installation profile required for live and touring operations where equipment visibility must be minimized and reliability is non-negotiable.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX N1000 Series is a professional-grade AV-over-IP encoder that mounts directly into a standard wall plate, eliminating the need for rack equipment while delivering WUXGA video at 10 ms latency over standard network infrastructure. Built for control rooms, boardrooms, and presentation spaces where clean aesthetics matter as much as reliable performance, it combines video encoding with integrated KVM control in a single unified device. Choose this for permanent installations where you need enterprise-class AV distribution without visible equipment clutter.
Who This Is For
Great for
- ✓ AV system integration
- ✓ corporate conferencing
- ✓ presentation spaces
- ✓ control room installation
Not the best pick for
- – live music performance
- – portable touring
Skill level: Professional
Frequently Asked Questions
What video resolutions and latency does this encoder support?
The N1000 Series encodes and decodes WUXGA (1920 × 1200) resolution video at 60 fps with a combined latency of 10 ms, enabling real-time AV distribution suitable for mission-critical applications like live presentations and control-room monitoring.
How does it mount, and what space does it require?
It mounts flush into a standard 2-gang US back box, eliminating the need for separate rack equipment or external cabinetry. The wallplate design preserves aesthetic consistency in any control environment while keeping all connectivity consolidated behind a single faceplate.
What inputs and connectivity does it provide?
The encoder includes 1 HDMI port and 1 VGA port for video input, 2 USB ports for peripherals and KVM control, and a single RJ-45 Ethernet connection that carries both network and power over standard category cabling.
Does this include KVM functionality?
Yes, the N1000 Series has integrated keyboard, video, and mouse control built in, allowing you to manage peripherals and remote endpoints through the same network infrastructure without additional control systems.
Is this suitable for live performance or touring applications?
No; this encoder is designed for permanent wall installation in control rooms, boardrooms, and professional AV systems. It is not intended for portable or touring use.
