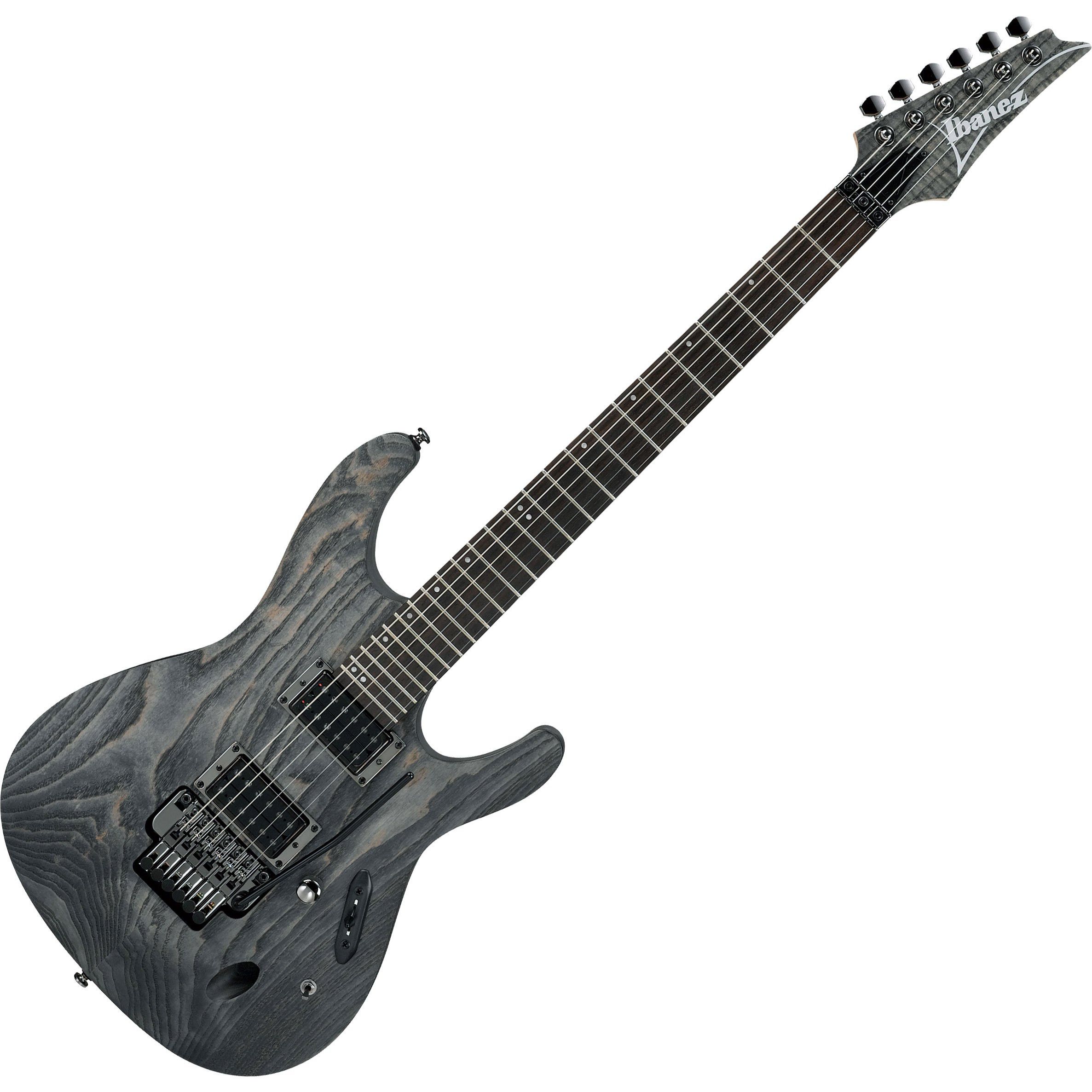

Ibanez Paul Waggoner Signature PWM10 Electric Guitar

The Ibanez Paul Waggoner signature PWN10 electric guitar features a PWN Ash body, a set of Mojotone PW Hornet pickups, an extra switch for coil-tap, and the Edge-Zero II tremolo bridge.

Specifications

neck type   Wizard III 3pc Maple/Bubinga neck

body   Ash body (44mm Body Thickness)

fretboard   Rosewood fretboard w/Off-set White dot inlay

fret   Jumbo frets

bridge   Edge-Zero II tremolo bridge

neck pickup   Mojotone® PW Hornet (H) neck pickup (Passive/Alnico)

bridge pickup   Mojotone® PW Hornet (H) bridge pickup (Passive/Ceramic)

factory tuning   1C#, 2G#, 3E, 4B, 5F#, 6C#

string gauge   .012/.016/.024w/.034/.046/.059

hardware color   Cosmo black

case/bag   Case included

Neck Dimensions

Scale :   648mm/25.5"

a : Width   43mm at NUT

b : Width   58mm at 24F

c : Thickness   19mm at 1F

d : Thickness   21mm at 12F

Radius :   400mmR
