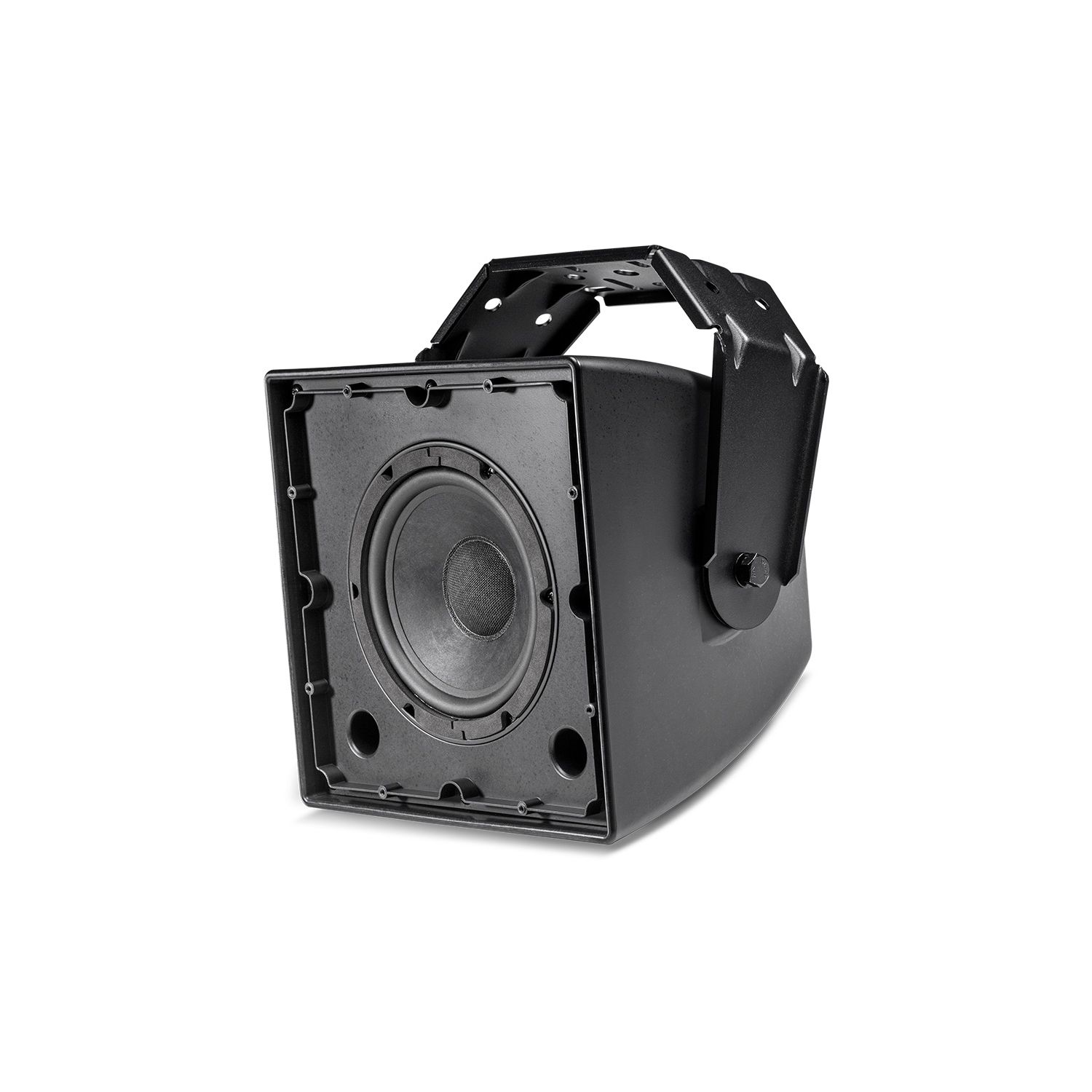

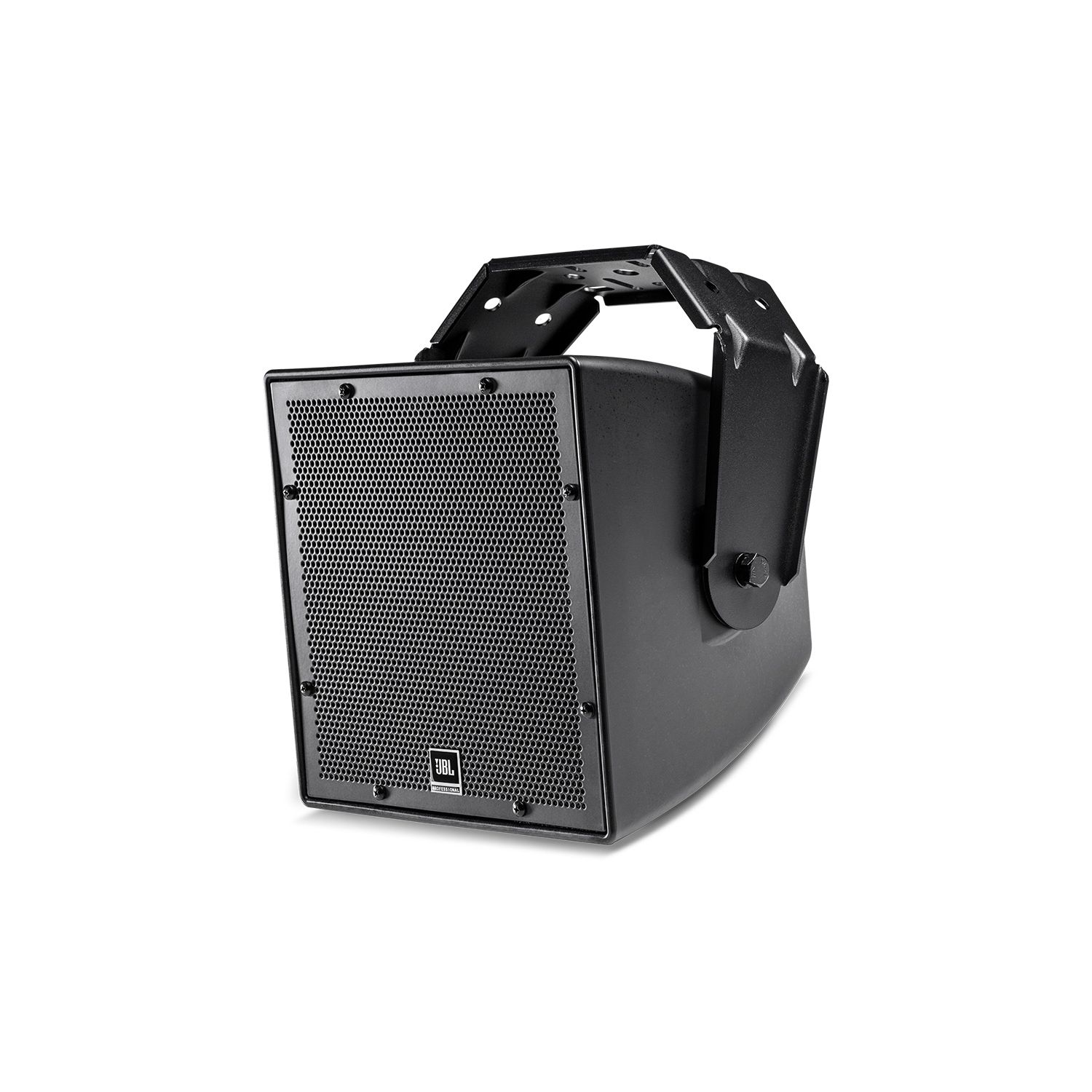

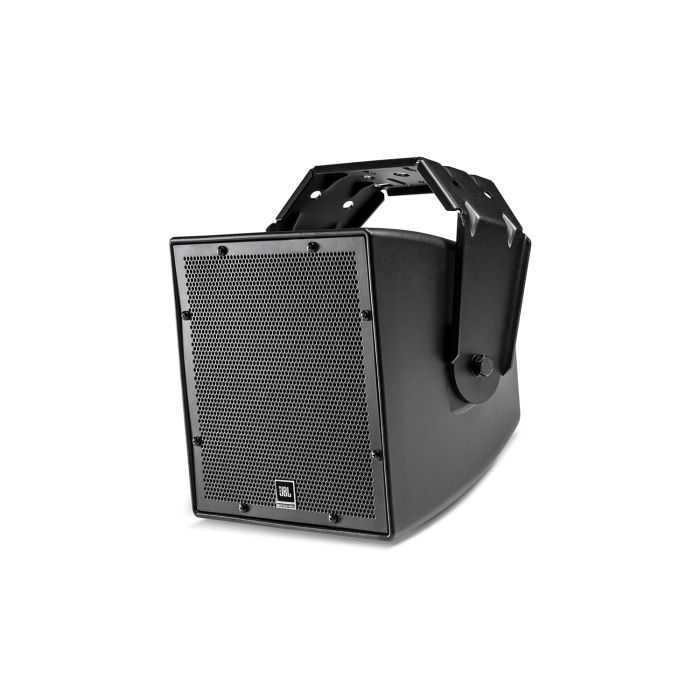

JBL AWC62 All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5 LF Bl
Share
Out of stock
- SKU
- AWC62-BK
Description
JBL AWC62 All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF (Black)
The AWC62 is built for musicians and sound engineers who need dependable output in tough conditions. Its coaxial design—woofer and compression driver aligned on the same acoustic axis—eliminates phase complications and delivers coherent sound across your coverage area. In a compact, rugged package, this speaker punches above its size for outdoor gigs, covered venues, and environments where weather won't stop the show.
Road-Ready Durability & Weather Resistance
Engineered with a paintable ABS enclosure and IP56 rating, the AWC62 survives rain, humidity, salt spray, and temperature swings—essential for rooftop rigs, beachside performances, patio installations, and touring. The steel grille backed with open-cell foam protects your investment while keeping the acoustic path clear, and internal bracing locks down the cabinet for tight, responsive low-frequency punch in a small form factor.
Live Sound & On-Stage Performance
At the heart: a 165 mm (6.5 in) Kevlar-reinforced woofer paired with a 25 mm (1 in) compression driver that delivers 70 Hz to 20 kHz frequency response and 120 dB maximum SPL with 175W long-term power handling. The 110° × 110° dispersion pattern ensures your audience across the venue hears you clearly, while the integrated multi-tap transformer adapts to 70/100V systems or 8-ohm low-impedance rigs—no extra boxes needed.
Key Features
- 165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil
- 25 mm (1 in) exit compression driver
- Frequency response: 70 Hz to 20 kHz (-10 dB)
- Maximum peak SPL: 120 dB
- Power handling: 175W long-term
- Dispersion pattern: 110° × 110°
- Integrated multi-tap transformer for 70/100V or 8-ohm operation
- IP56 weather resistance rating with paintable ABS enclosure
- Steel grille with open-cell foam backing
- Two M10 mounting points with included U-bracket and M6 secondary safety attachment
- Heavily braced cabinet design for low-frequency performance
- Weight: 20.00 lbs
The AWC62 merges all-weather toughness with pro-grade sound and flexible rigging options. Trust it to deliver your tone night after night, in any climate.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The JBL AWC62 is a compact, weather-sealed 2-way outdoor loudspeaker built for permanent installations in rain, salt spray, and extreme temperatures. Designed for venue operators, sound crews, and installers running outdoor events or covered spaces, it delivers 120 dB SPL from a coaxial design that keeps phase coherent across 110° coverage without requiring multiple cabinets. Choose it for rooftop bars, poolside venues, patios, and coastal installations where durability and consistent sound matter as much as size.
Frequently Asked Questions
What does IP56 weather resistance mean, and where can I install this speaker?
IP56 means the speaker resists rain, humidity, salt spray, and temperature extremes. It is suitable for rooftops, poolsides, patios, covered venues, and coastal applications. The paintable ABS enclosure can be finished to match outdoor décor, and the steel grille with open-cell foam backing protects internal components while maintaining sound clarity.
Can I use this in both 70V line systems and direct 8-ohm setups?
Yes. The integrated multi-tap transformer supports 70V/100V distributed systems as well as 8-ohm low-impedance operation, making it compatible with most commercial and residential audio configurations.
What is coaxial design, and why does it matter?
Coaxial means the 6.5-inch woofer and 1-inch compression driver are mounted on the same acoustic axis. This alignment eliminates phase problems that occur with separate cabinets, ensuring coherent sound across the entire 110° × 110° coverage area without dead zones.
How powerful is this speaker, and what size venue can it cover?
The AWC62 handles 175W long-term power and delivers a 120 dB maximum SPL peak with a 110° × 110° dispersion pattern. It is designed for compact outdoor installations and covered venues; for larger areas, multiple units should be deployed.
What mounting options are included?
Two M10 mounting points with an included U-bracket and M6 secondary safety attachment hardware allow flexible wall, pole, or structural mounting. The compact footprint and 20 lb weight make it practical for most outdoor installation scenarios.
