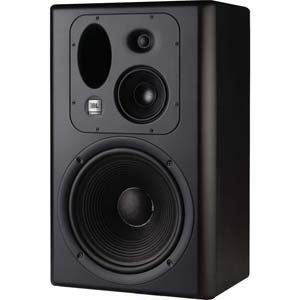

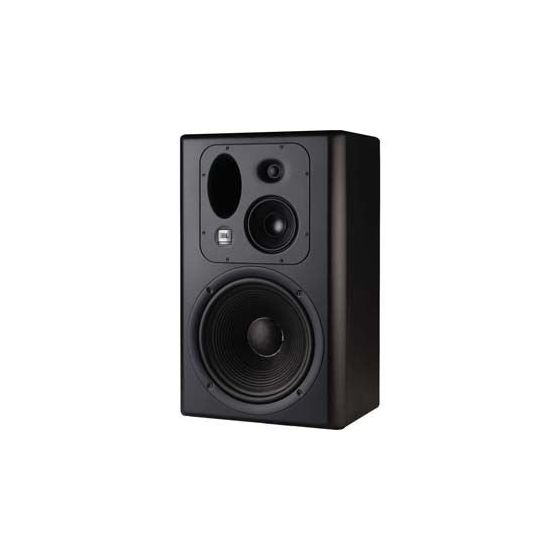

The JBL LSR6332L 3-way Mid-Field Passive Monitor - Left. For use as a near or mid-field reference monitor,or as a soffit-mounted main monitor in applications requiring exceptional spectral accuracy and high SPL capability.

The JBL LSR6332L studio monitor is designed for use as a near or mid-field reference monitor,or as a soffit-mounted main monitor in applications requiring exceptional spectral accuracy and high SPL capability. The LSR6332 combines the latest in JBL's renowned transducer and system technology with psychoacoustically derived spatial response criteria,resulting in a more accurate studio monitoring reference. In this design process,the system's frequency response over the forward listening range (+/-15 vertically and +/-30 horizontally) is optimized,as opposed to the conventional approach of optimizing the response directly on-axis. This design approach involves careful component design,selection of crossover frequency,and precise baffle geometry and detail. The result is a system that can be used for the most critical judgements of recording balance,image placement,and equalization. The LSR6332 has a neodymium 12 inch woofer based on JBL's patented Differential Drive technology. With the neodymium structure and dual drive coils,power compression is kept to a minimum to reduce spectral shift as power levels increase. An added third coil between the drive coils acts as a dynamic brake to limit excess excursion and reduce audible distortion at the highest levels. The cone is made of a graphite polypropylene composite forming a rigid piston supported by a soft butyl rubber surround. The LSR 6332 midrange is delivered by a 5 inch midrange transducer,2 inch neodymium magnetic structure with a woven Kevlar cone. The powerful motor structure was chosen to support the low crossover frequency to the woofer. In order to achieve the goal of accurate spatial response the crossover points are placed at 250 Hz and 2.2 kHz. These transition points match the directivity characteristics of the three transducers. The high frequency transducer in the LSR6332 has a composite diaphragm integrated with an Elliptical Oblate Spheroidal (EOS) waveguide with wide uniform dispersion,which is critical to the smooth spatial response required in today's working environments. The mid and high frequency devices are mounted within millimeters of each other on a cast aluminum sub-baffle that can be rotated for horizontal or vertical placement,giving maximum flexibility in placement to reduce console and ceiling splash that interferes with stereo imaging and depth.

The main features of the JBL LSR6332L include:

• For use as a near or mid-field reference monitor,or as a soffit-mounted main monitor in applications requiring exceptional spectral accuracy and high SPL capability
• Advanced Linear Spatial Reference design ensures flatter response at the mix position
• Neodymium Differential Drive NDD technology with dynamic braking for extended low frequency response and low power compression
• Neodymium midrange with 2 inch voice coil and Kevlar cone material for extended frequency response and low distortion
• Titanium composite high frequency transducer with elliptical oblate spheroidal waveguide and damped polepiece
• High-Density baffle for low enclosure resonance and stable inertial ground
• Linear Dynamics Aperture port design eliminates port turbulence and reduces port compression
• Magnetically shielded for use near video monitors
• Reinforced enclosure and convenient mounting points allow mounted installation
• Frequency Range: 60 Hz - 20 kHz
• Low Frequency Extension : -10 dB : 35 Hz
• Long-Term Maximum Power (Continuous/Peak) : 200w / 800w
• Sensitivity: 90 dB 1W,1m
• System Impedance: 4 Ohms
• Crossover Frequencies : 250 Hz / 2.2 kHz
• Components (LF,MF,HF): 12 inch / 5 inch / 1 inch
• Enclosure Material: 19 mm (3/4 in) MDF
• Finish: dark graphite
• Termination: 5-way binding posts
• Dimensions (WxHxD): 635 x 394 x 292 mm / 25 x 15.5 x 11.5 inches
• Weight : 20.4 kg (45 lb)
