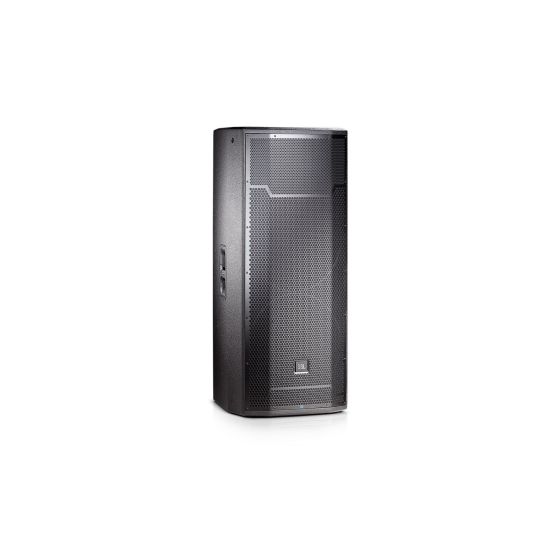

Name: JBL PRX725 15" Two-Way Full-Range Main System
Brand: JBL
SKU: PRX725
Price: 1299.00 USD
Availability: OutOfStock

The PRX725 is a self-powered,lightweight two-way loudspeaker system capable of delivering a very high level of performance over a broad bandwidth.

139 dB peak SPL
Dual 15" Differential Drive® low-frequency driver for low-distortion and higher SPL
1.5" diameter next generation JBL neodymium compression driver
JBL designed waveguide for accurate coverage
Efficient Class-D amplifier technology
Normal and Boost user selectable EQ presets
DSP input section,crossover,dynamic limiting,component optimization,selectable system EQ
Line level and direct microphone input capability
Professional XLR-1/4" combination inputs,RCA inputs,and XLR loop-through
Multiple injection molded handles with backing cup for easy transport
Integrated M10 suspension points for easy setup
Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
Cloth backed,dent-resistant 16 gauge steel grilles

Applications:

If a simple set-up is required and full bandwidth output at high levels is a must,then the PRX725 is most likely the optimum solution. With the same foot print as the PRX715,the dual 15" woofer design creates enough low frequency content to serve most live music or music playback situations. When coupled with a PRX subwoofer (or multiple subwoofers) the system becomes a high volume sound reinforcement solution,perfect for regional tour companies and AV Rental companies looking for a scalable,easy to employ audio solution. We recommend using the PRX718XLF in conjunction with the PRX725 as the extended low frequency capabilities of the subwoofer compliment the frequency response of the PRX725.
For live music,recorded music playback and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick on-the-fly PA applications.
The PRX725 is a self-powered,lightweight two-way loudspeaker system capable of delivering a very high level of performance over a wide bandwidth. The PRX725 is comprised of two 380 mm (15 in) 275 Differential Drive® woofers,a 2408H-2,37.5mm (1.5 in) annular polymer diaphragm,neodymium compression driver mounted to a 90° by 50° horn,all driven by a Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section,providing user selectable system EQ,protection,input sensitivity selection,cross-over functionality,dynamic limiting and discrete component optimization.
All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm,strong,light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility,making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level,via the level control knob.

Specifications:

Power Rating: 1500 W
AC Power Input: 100V - 240V~ 50/60 Hz
Frequency Range (-10 dB): Normal: 42 Hz – 18.5 kHz / Boost: 40 Hz – 18.5 kHz
Frequency Response (±3 dB): Normal: 49 Hz – 17 kHz / Boost: 46 Hz – 17 kHz
Coverage Pattern: 90° x 50° nominal
Directivity Index (DI): 10.4 dB
Directivity Factor (Q): 11
Crossover Frequency: 2.4 kHz
Maximum SPL: Normal: 139 dB / Boost: 139 dB
Signal indicators:

Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
Signal: Green LED indicates signal present
Power/Standby: Blue indicates system has power and ready to pass audio,Red indicates system has power but is in a power saving mode and will not pass audio.

Dynamic Control (Input): dbx Type IV™ limiter circuit
Input Impedance: 20K Ohms (balanced),10K Ohms (Unbalanced)
LF Driver: 2 x JBL 275 (15 in) woofer
HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm,neodymium compression driver
Enclosure: Trapezoidal,18 mm,plywood
Suspension/Mounting: 8 x M10 Suspension Points,1 x M10 pull back point
Transport: 2x integrated handle with injection molded backing cup
Finish: Obsidian DuraFlex™ finish
Grille: Powder coated,Obsidian,16 gauge perforated steel with acoustical transparent black cloth backing.
Input Connectors: 2 x Balanced XLR / 1/4 inch input,2 x unbalanced RCA input
Output Connectors: 1 male XLR balanced output.
Dimensions (H x W x D): 1070.36 mm x 445.0 mm x 537.97 mm (42.14 in x 17.52 in x 21.18 in)
Net Weight: 37.19 kg (82 lb.)

Condition	New
Country of Manufacture	China
