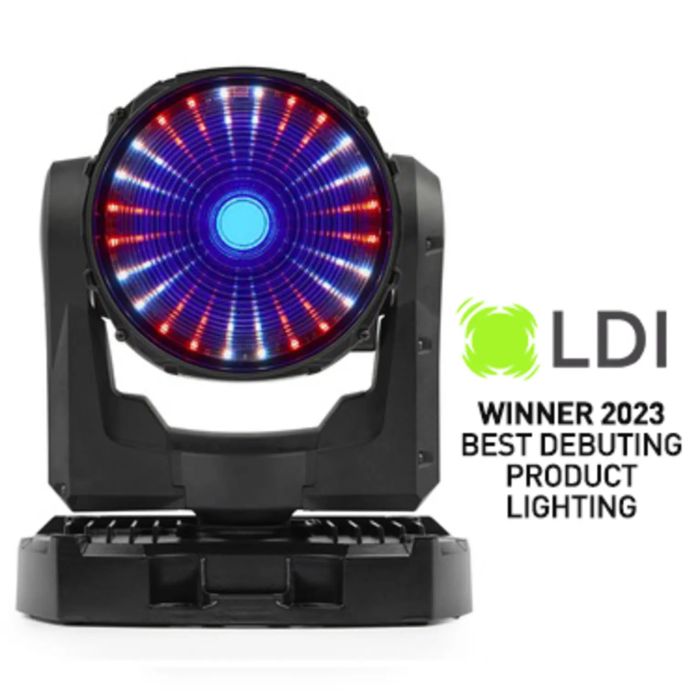

Martin MAC One in dual SiP

Martin MAC One in dual SiP

The Martin MAC One is a compact moving light fixture built for touring and live production work where reliability and speed matter. Its lightweight frame and responsive control make it easy to position on a rig, while the silent cooling system keeps noise out of your broadcast and theater mix. This dual SiP configuration gives you solid output and control in a footprint that actually fits on a truss without eating up your rig's hanging space.

Optical Performance & Beam Quality

With 2,500 lumens output and 375,000 cd narrow beam intensity, the MAC One holds its own across mid-throw distances and cuts through ambient light on stage. The 4–27° zoom range lets you dial in tight spotlights for front-of-house work or open it up for broad wash coverage across a stage, while the 24 RGB effect LEDs embedded in the lens give you dynamic backlight texturing independent of the main beam.

Engine & Control Architecture

The 120 W custom RGBL LED engine delivers superior color rendering—higher CRI, TM-30, and TLCI values compared to conventional RGBW fixtures—so your colors stay saturated and skin tones read true in broadcast and live settings. DMX, Art-Net, sACN, and Martin P3 control options plug directly into your existing infrastructure, while 200+ built-in FX macros and P3 video mapping support let you build complex looks and run sophisticated programming without dragging an external media server to the venue.

Key Features

• Weight: 4.4 kg (9.7 lbs)
• 2,500 lumens output; 375,000 cd narrow beam intensity
• 120 W custom RGBL LED engine with higher CRI, TM-30, and TLCI
• Zoom range: 4–27°
• 24 RGB effect LEDs for backlight effects
• 200+ built-in FX macros and P3 video mapping
• DMX, Art-Net, sACN, and Martin P3 control
• LED lifetime: >50,000 hours (to >70% luminous output)
• Ultra-quiet cooling: 23 dB(A) in theater and broadcast mode
• Dimensions: 226 mm width (yoke), 336 mm height (head straight), 220 mm depth
• Part number (dual SiP): MAR-90250205HU (ordered in multiples of 2)

The MAC One is a road-tested moving light for live touring and production, delivering professional color accuracy and silent operation—the kind of fixture that earns its place on your rig.
