Martin P3 PowerPort 1000 Outdoor Power & Data Unit

Martin P3 PowerPort 1000 IP Outdoor Power & Data Unit

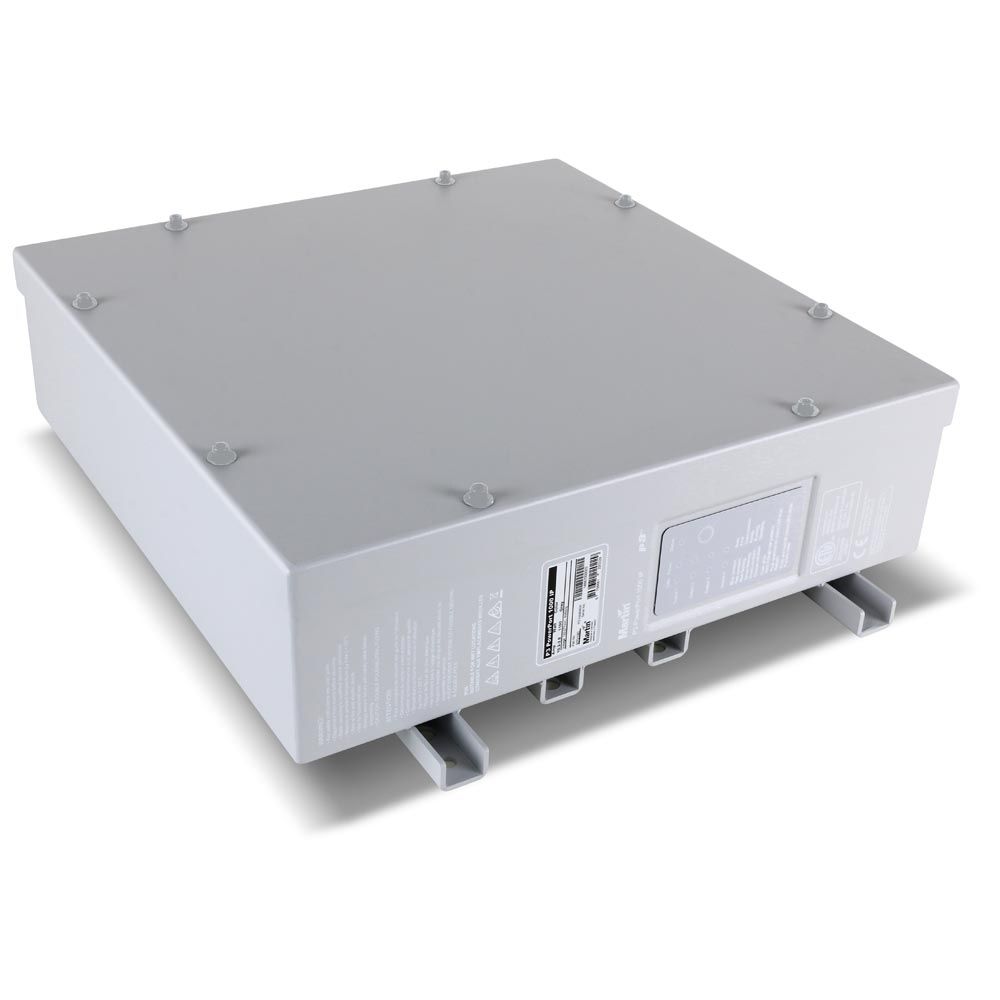

The P3 PowerPort 1000 IP is a robust integrated power supply and data processor designed for Martin's fixed-installation creative LED video systems. Its compact form factor—426 mm × 483 mm × 146 mm, weighing just 8 kg—allows flexible placement indoors or outdoors without sacrificing processing capability. Built to operate reliably across extreme temperature ranges, this unit delivers stable power and high-speed video data simultaneously to drive demanding LED installations.

Power Delivery & Connectivity

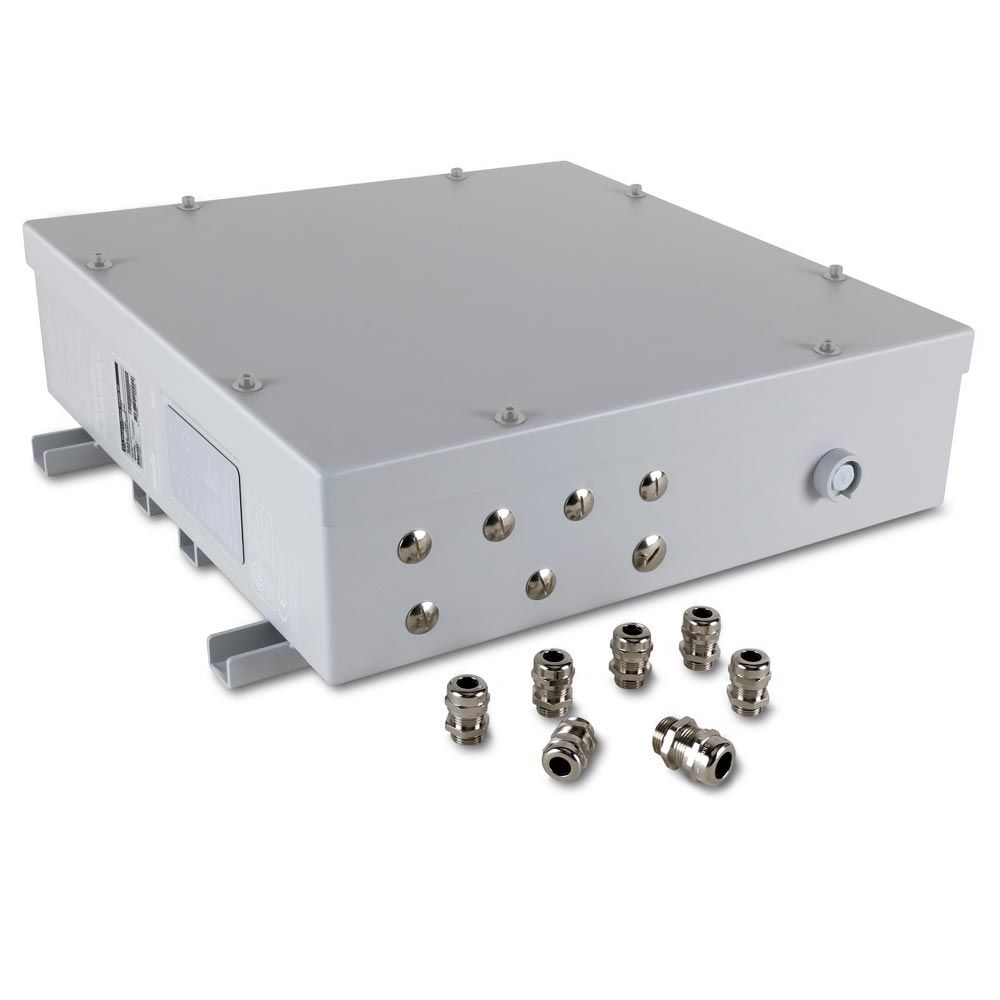

The unit accepts AC input from 120–277 V nominal at 50/60 Hz through an auto-ranging electronic switch-mode supply, with typical total power consumption of 1000 W and four outputs rated at maximum 5 amps per output (20 amps combined). Connectivity includes M20 cable gland power input with internal screw terminals, two M16 RJ45 connectors for P3 data in/out, and four M16 cable glands combining power and data output—all engineered for straightforward integration into permanent installations.

Environmental Performance & Thermal Management

A full outdoor rating ensures reliable operation across -30°C to 55°C, with convection cooling providing 345 BTU/hr heat dissipation to maintain stable performance under sustained loads. Idle-state power consumption of just 22 W, combined with the unit's thermal design, makes it efficient for 24/7 outdoor deployments where reliability is non-negotiable.

Key Features

• Integrated power supply and data processor for Martin creative LED video products
• AC input: 120–277 V nominal, 50/60 Hz with auto-ranging electronic switch-mode supply
• Typical total power consumption: 1000 W
• Four power outputs, maximum 5 amps per output (20 amps combined total)
• Idle state power consumption: 22 W
• Operating temperature range: -30°C to 55°C
• Full outdoor environmental rating
• M20 power input cable gland with internal screw terminals
• Two M16 RJ45 connectors for P3 data in/out
• Four M16 cable glands for combined power and data output
• Convection cooling with 345 BTU/hr heat dissipation
• Compact dimensions: 426 × 483 × 146 mm; Weight: 8 kg (17.7 lbs)

The P3 PowerPort 1000 IP combines straightforward configuration with professional-grade reliability, making it an essential component for permanent Martin LED installations requiring simultaneous power and high-speed data delivery in demanding outdoor environments.
