Is this a neck or bridge pickup, and can I use both?

The SM-1B is the bridge version. Seymour Duncan also makes the SM-1N for the neck position, and the pickup pairs especially well with the SM-2 Custom or SM-3 in the opposite slot for higher output and tonal variety across the guitar.

What kind of tone character should I expect?

The SM-1B delivers a bright, lively tone with a bell-like quality—a cross between a single-coil and a full humbucker. The Alnico 5 magnet and moderate output windings create warm, articulate response that excels in blues, jazz, rockabilly, and classic rock without the heaviness of high-gain humbuckers.

What woods and guitars work best with this pickup?

It's designed for balanced and warm instruments, particularly those with soft woods like mahogany or swamp ash and rosewood fingerboards. The pickup's character shines in guitars with body resonance and vintage character.

What's included in the box?

The SM-1B comes with a vintage-style single-conductor hookup cable, ready to install into your guitar.

Is this pickup suitable for metal or high-gain styles?

No—the SM-1B is voiced for blues, jazz, rockabilly, classic rock, and heavy rock. It's not designed for metal or djent styles, which typically require higher output and more aggressive tone characteristics.

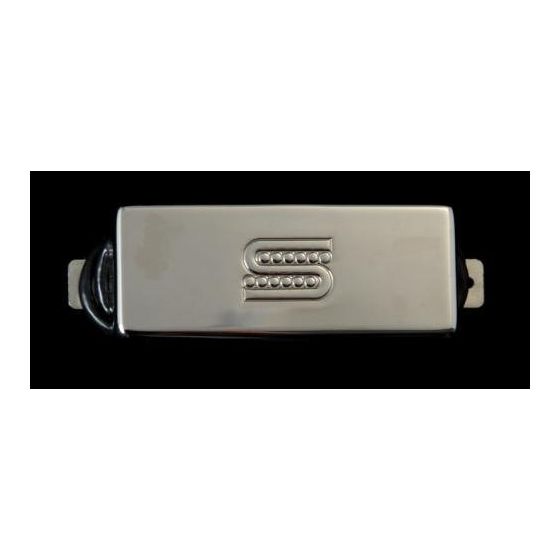

Seymour Duncan SM-1B Vintage Mini Humbucker 1-Conductor Bridge Pickup

The SM-1B delivers the compact footprint and articulate character of a true mini-humbucker with the clarity and definition that comes from Alnico V magnets and thoughtful EQ voicing. This bridge pickup excels in tight routes and vintage-spec applications where standard humbuckers won't fit, offering a focused midrange punch without sacrificing the harmonic complexity players expect from quality construction.

Tone & Frequency Response

A 6 kHz resonant peak and EQ curve of 5/4/6 (bass/mid/treble) create a pickup with articulate highs, present mids, and controlled low-end that cuts through dense playing without harshness. The 7.4k output sits in the sweet spot for bridge installations—hot enough to drive an amp but balanced enough to retain note definition and dynamic response across the fretboard.

Construction & Wiring

Vacuum wax potting eliminates microphonic feedback and squealing, ensuring stable performance even under high-gain conditions or aggressive playing. The 1-conductor braided shield cable supports standard grounding schemes, and the pickup mounts using a Firebird-style mounting ring with 3-48 humbucker screw, making installation straightforward in compatible mini-humbucker routes.

Key Features

DC Resistance (Bridge): 7.57 kΩ
Output: 7.4k
Magnet Type: Alnico V Bar
Resonant Peak: 6 kHz
EQ (Bass/Mid/Treble): 5 / 4 / 6
Cable: 1-conductor braided shield
Vacuum wax potted for squeal-free performance
Mini-humbucker sized route compatibility
Firebird-style mounting ring included
3-48 humbucker mounting screw compatible

The SM-1B combines vintage character with Seymour Duncan's commitment to stable, noise-free operation—a reliable choice for bridge installations in Firebirds, Jaguars, and other instruments requiring compact humbucker dimensions.

Condition	New
Country of Manufacture	United States
