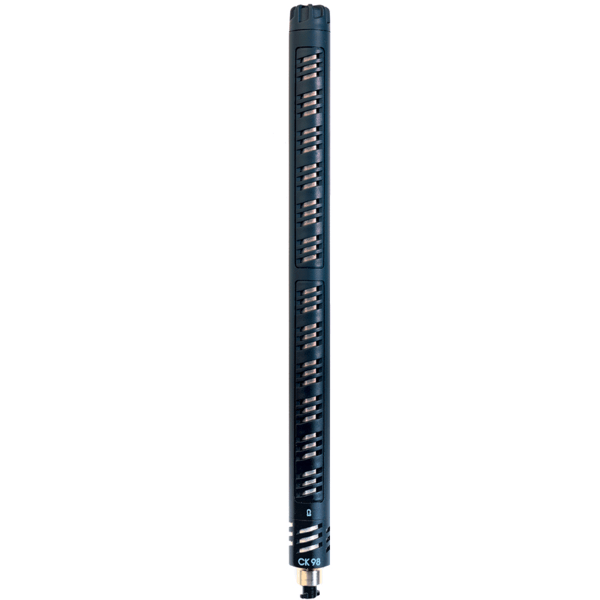

AKG CK98 High Performance Short Shotgun Condenser Microphone Capsule
Description
AKG CK98 High Performance Short Shotgun Condenser Microphone Capsule
The AKG CK98 is a compact shotgun condenser capsule engineered for precision directional recording in professional and live environments. Its lightweight construction and short form factor make it exceptionally easy to position for close-miking applications, while the hypercardioid polar pattern delivers focused sound capture with minimal off-axis coloration. The smooth, presence-peaked frequency response cuts through in any mix, making it equally effective on vocals, acoustic instruments, drum overheads, and detailed instrumental work.
Audio Performance & Specifications
The CK98 operates across a full 20Hz–20kHz frequency range with an equivalent noise level of 17dB-A, ensuring clean, transparent recordings with minimal self-noise. Maximum SPL reaches 124dB for 1% THD, extending to 134dB with 10dB preattenuation—sufficient headroom for capturing everything from intimate vocals to loud acoustic and percussion sources without distortion.
Design & Integration
This is a modular capsule system requiring the SE300 B pre-amp module and Modulock bayonet coupling for secure attachment and easy capsule changes. The compact dimensions of 19mm diameter by 247–262mm length and minimal weight of 80g integrate seamlessly into tight mic arrangements and boom setups. The capsule requires standard 12–48V phantom power, making it compatible with any professional mixing console or interface.
Key Features
- Self-polarized condenser element with combined pressure gradient and interference tube design
- Hypercardioid/directional polar pattern for focused sound isolation
- Frequency response: 20Hz–20kHz
- Equivalent noise level: 17dB-A
- Maximum SPL: 124dB (1% THD) / 134dB (with 10dB preattenuation)
- Compact dimensions: 19mm dia. × 247–262mm length
- Lightweight construction: 80g / 2.8 oz.
- Modulock bayonet coupling for quick capsule changes
- Works exclusively with SE300 B pre-amp module
- Requires 12–48V phantom power
The CK98 delivers articulate, detailed sound capture in a compact package, making it an essential tool for live sound engineers and studio professionals demanding reliable results from close-miking applications night after night.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AKG CK98 is a compact shotgun condenser capsule delivering focused, directional sound capture for live sound, instrument miking, and close-range recording work. Its hypercardioid pattern isolates your source cleanly while the presence-peaked response cuts through stage mixes and venue acoustics; weighing just 80g with a short 247–262mm body, it mounts easily on booms and tight mic stands for drums, vocals, and acoustic sources. Choose it for reliable, detailed capture in professional live and studio setups where precision positioning and minimal off-axis noise matter.
Frequently Asked Questions
What preamp does the CK98 require, and is it included?
The CK98 is a capsule-only module that requires the SE300 B pre-amp module and Modulock bayonet coupling for operation. These are sold separately and provide the interface between the capsule and your mixing console or audio interface.
How loud can this capsule handle before distortion?
The CK98 handles a maximum SPL of 124dB at 1% THD, or 134dB with 10dB preattenuation engaged, giving you plenty of headroom for loud drums, percussion, and brass instruments without clipping.
What makes the hypercardioid pattern useful for recording?
The hypercardioid polar pattern focuses sound capture tightly on the source in front of the mic while rejecting off-axis noise and room reflections, making it ideal for isolating vocals, drums, and instruments in live and studio environments.
Is this capsule compatible with standard phantom power?
Yes, the CK98 requires standard 12–48V phantom power, making it compatible with any professional mixing console, audio interface, or preamp that supplies phantom power.
How small and lightweight is this capsule?
The CK98 measures 19mm in diameter and 247–262mm in length, weighing just 80g (2.8 oz), allowing it to fit into tight boom arrangements and close-miking setups where space is limited.
