AKG D7 WL1 Reference Dynamic Microphone Head
Share
Out of stock
- SKU
- 3082X00030
Description

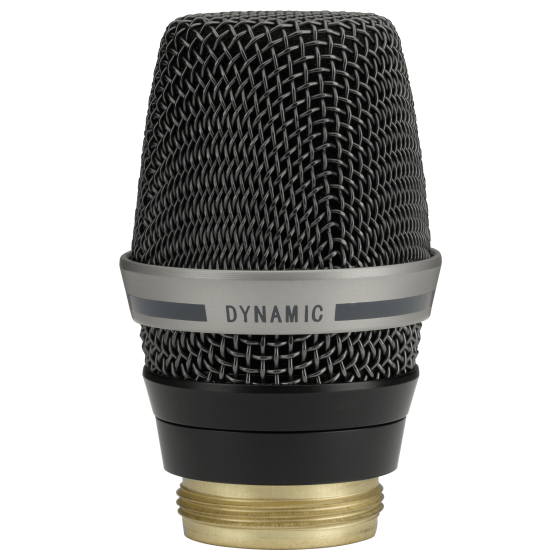

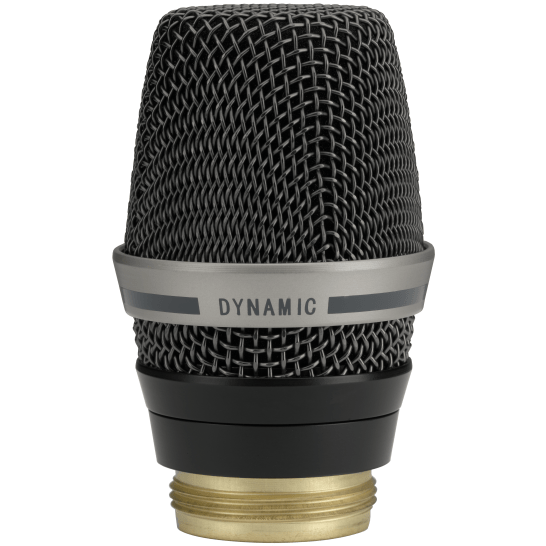

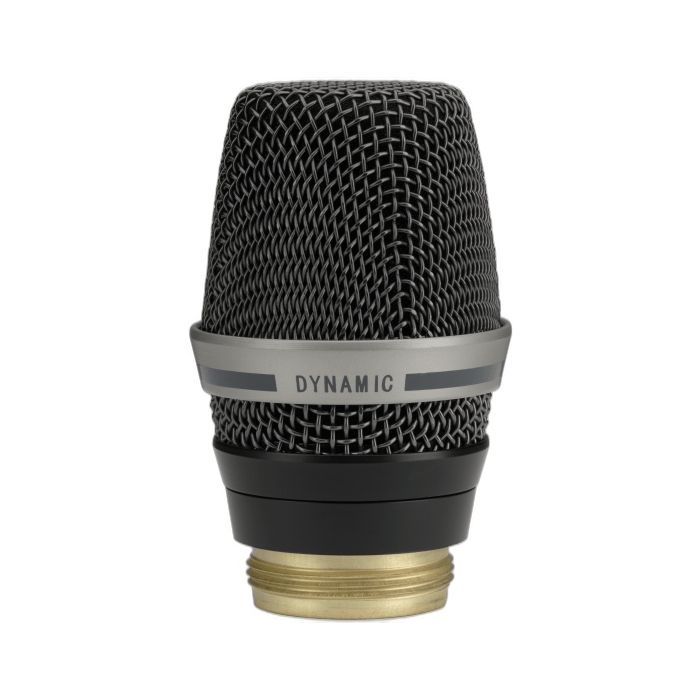

AKG D7 WL1 Reference Dynamic Microphone Head
The D7 WL1 sits confidently in your hand with a crisp, open sound character that bridges dynamic and condenser microphone territories—essential for lead vocalists who demand feedback rejection and clarity in equal measure. Its compact, balanced form factor feels natural during extended sets, while the supercardioid polar pattern provides the tight rejection needed for high-gain stage work without losing presence.
Design & Build Quality
Built with a metal body finished in dark stage blue, the D7 WL1 weighs 320g and measures 185mm in length with a 51mm diameter, keeping the microphone ergonomic through hours of live performance. The precision metal dust filter protects the capsule from road wear and environmental contamination while maintaining acoustic integrity, and dual shock mount isolation with an integrated humbucking coil ensures clean signal delivery free from electromagnetic interference—crucial for gigging musicians relying on consistent tone night after night.
Audio Performance & Specifications
The patented dual-layer Varimotion diaphragm produces an extraordinarily crisp sound by allowing unrestricted capsule vibration, while the laminated diaphragm material damps critical resonance peaks for smooth response across 70–20,000 Hz. With a supercardioid polar pattern, 147 dB maximum SPL (156 dB at 3%), and an 18 dB(A) equivalent noise level, this microphone delivers the gain-before-feedback performance that touring vocalists depend on, with sensitivity of 2.6 mV/Pa—essential for projecting through loud, dynamic vocal work without feedback breakup.
Key Features
- Type: Dynamic microphone
- Polar Pattern: Supercardioid
- Patented dual-layer Varimotion diaphragm
- Frequency response: 70–20,000 Hz with internal 80 Hz high-pass filter
- Sensitivity: 2.6 mV/Pa
- Maximum SPL: 147 dB @ 1% / 156 dB @ 3%
- Equivalent Noise Level: 18 dB(A) to IEC 60268-4
- Spring-steel wire-mesh grille
- Dual shock mount capsule with integrated humbucking coil
- Precision metal dust filter
- Compatible with DMS800 and WMS4500 wireless systems (DHT800 and HT4500 handheld transmitters)
- Weight: 320 g; Length: 185 mm; Diameter: 51 mm
The D7 WL1 combines feedback suppression, clarity, and live reliability into a reference-grade wireless microphone head engineered for vocalists who won't compromise on stage performance.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The AKG D7 WL1 is a supercardioid dynamic microphone head built for lead vocals and high-gain stage work, delivering crisp, open tone with exceptional feedback rejection and 147 dB SPL handling. Its compact, balanced design and patented dual-layer diaphragm sit naturally in the hand during extended performances, while dual shock mounts and a humbucking coil keep your signal clean and free from stage noise. Choose this mic when you need reference-grade clarity and gain-before-feedback performance on a budget.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Lead Vocals
- ✓ High-gain stage work
Not the best pick for
- – Intimate studio recording
- – Quiet acoustic applications
Frequently Asked Questions
What makes the dual-layer Varimotion diaphragm different?
The patented design allows unrestricted capsule vibration for crisp sound capture while laminated material damps resonance peaks, delivering smooth response without sacrifice to clarity. This approach bridges dynamic and condenser microphone character in a single capsule.
Is the D7 WL1 wireless-compatible?
Yes, the D7 WL1 head is compatible with AKG DMS800 and WMS4500 wireless systems using DHT800 and HT4500 handheld transmitters. You purchase the head separately and attach it to your chosen wireless body.
How does the supercardioid pattern help on stage?
The tight supercardioid pickup rejects sound from the sides and rear, providing 18 dB of gain-before-feedback advantage in high-volume stage environments while keeping nearby instruments and floor noise out of your vocal take.
What's the maximum SPL this microphone can handle?
The D7 WL1 handles 147 dB SPL at 1% THD and 156 dB SPL at 3% THD, making it suitable for screaming lead vocals and high-energy performances without distortion or signal clipping.
Does it include shock mounts and humbucking protection?
Yes, the D7 WL1 features dual shock mount isolation and an integrated humbucking coil to eliminate electromagnetic interference, ensuring a low 18 dB(A) noise floor even in electrically noisy venue environments.
