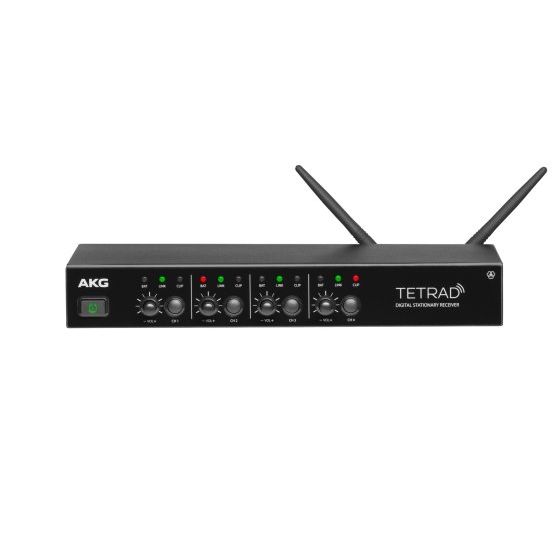

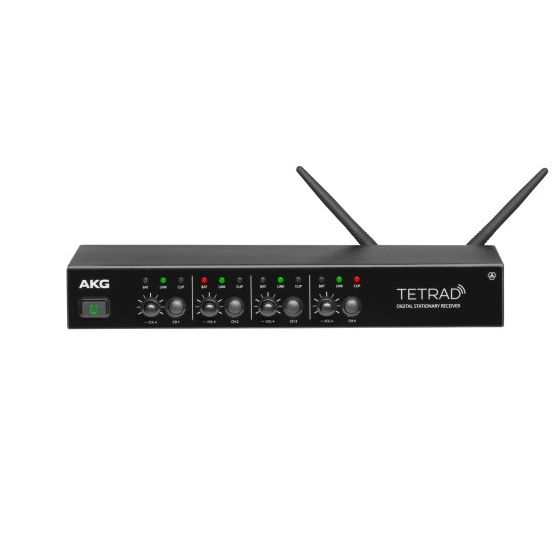

AKG DSR TETRAD Professional Digital Wireless Multichannel Receiver
Description
AKG DSR TETRAD Professional Digital Wireless Multichannel Receiver
The AKG DSR TETRAD puts four channels of wireless freedom in your hands—zero cable clutter, zero dropouts, complete control. Crystal-clear digital transmission captures every detail of your performance with remarkable transparency, whether you're running a multi-band setup, managing floor monitors, or coordinating a full touring rig. The intuitive multichannel interface lets you monitor and adjust all four feeds in real time, keeping your focus entirely on playing.
Audio Performance & Transmission
24-bit, 48kHz uncompressed audio coding delivers transparent transmission with a 120 dB(A) dynamic range and 20–20,000 Hz frequency response (±1 dB), ensuring your tone travels intact from stage to mixing console. The OFDM 16 MHz modulation combined with 128-bit AES standard encryption locks in both pristine signal character and bulletproof interference resistance—critical for touring venues and dense RF environments.
Design & Connectivity
The compact standalone footprint (300 × 45 × 185 mm) fits mobile rigs and modest pedalboards, while optional rack mounting (485 × 45 × 185 mm) integrates into larger touring setups. Balanced XLR sum output lets you mix all four channels into a single feed for simplified FOH runs, and the included detachable antennas, antenna cables, front mount kits, and rack ears adapt to any stage configuration.
Key Features
- Four wireless channels for simultaneous use of four handheld or body-pack transmitters
- Dynamic frequency selection in the 2.4 GHz ISM band with Dynamic Frequency Selection (DFS) technology
- 10 mW transmission power in Europe; 100 mW outside of Europe
- 24-bit, 48 kHz uncompressed studio-quality audio transmission
- Frequency response: 20–20,000 Hz (±1 dB)
- Overall dynamic range: 120 dB(A)
- OFDM 16 MHz modulation for stable, interference-resistant operation
- 128-bit AES standard encryption for secure wireless transmission
- Balanced XLR sum output for mixing all four channels
- Compact standalone dimensions: 300 × 45 × 185 mm; rack-mount option: 485 × 45 × 185 mm
- Weight: 1.2 kg
- Includes detachable antennas, antenna cables, front mount kits, and rack ears
The DSR TETRAD combines rock-solid four-channel capacity, transparent digital audio, and flexible mounting in a system purpose-built for gigging musicians, touring rigs, and demanding stage work.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AKG DSR TETRAD is a four-channel digital wireless receiver that handles up to four simultaneous mics or instruments without dropouts, delivering studio-quality 24-bit audio with a clean, transparent sound character ideal for live stages. Built for touring and installed systems alike, it offers flexible mounting (standalone or rack), secure encrypted transmission in crowded RF environments, and intuitive multichannel control so your sound operator can focus on mixing while you focus on playing. Choose it for rock-solid reliability, zero-compromise audio fidelity, and the freedom to move across any venue without cable constraints.
Frequently Asked Questions
How many wireless mics or instruments can this receiver handle at once?
The DSR TETRAD manages up to four simultaneous wireless channels, each at full 24-bit, 48 kHz studio-quality audio. You can use four handheld mics, four body-pack transmitters, or any combination of the two.
What audio quality should I expect from this digital wireless system?
You get uncompressed 24-bit, 48 kHz transmission with a 120 dB dynamic range and flat frequency response of 20–20,000 Hz (±1 dB), preserving the full transparency and detail of vocals and instruments with no coloration or signal loss.
Will this work in venues with lots of other wireless devices nearby?
Yes—the DSR TETRAD uses OFDM 16 MHz modulation with Dynamic Frequency Selection (DFS) technology to automatically find clear channels in the 2.4 GHz ISM band, plus 128-bit AES encryption to reject interference and ensure secure, stable operation even in RF-congested environments.
Can I mount this in a rack, or does it only work standalone?
You can use it either way: standalone dimensions are 300 × 45 × 185 mm, or switch to rack-mount mode (485 × 45 × 185 mm) with the included rack ears. It weighs 1.2 kg and includes detachable antennas, antenna cables, and front mount kits for flexible deployment.
How do I mix all four channels together for my main output?
The DSR TETRAD includes a balanced XLR sum output that mixes all four wireless channels into a single feed, letting you send one clean, combined signal directly to your mixer or interface.
