AKG PAESP M Reference Phantom Power Module
Description

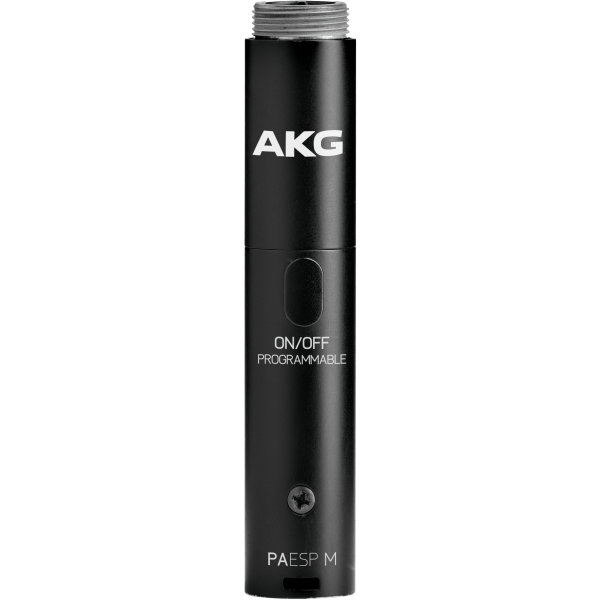

AKG PAESP M Reference Phantom Power Module
The AKG PAESP M is a compact, hand-held phantom power module engineered to deliver transparent, noise-free power conditioning to AKG condenser microphones in live performance or studio tracking. Its diminutive form factor—weighing just 63 grams with a diameter of 19.1 mm—slips into a gig bag or pedalboard without taking up space. The gold-plated system connector and balanced XLR output guarantee the signal integrity and long-term reliability touring musicians and session players depend on in the field.
Power & Audio Performance
Operating across a wide voltage range of 9 to 52 volts with minimal current draw (4 mA), this module adapts to any power source while maintaining a stable, clean supply to your microphone on stage or in the studio. The 20–20,000 Hz frequency bandwidth combined with selectable 150 Hz bass cut filter and noiseless microphone switch delivering 26 dB level reduction gives you surgical control over your signal chain—no pops, no switching noise, no surprises during a take or performance.
Control & Connectivity
The BCD switch system lets you recall and configure multiple operating modes without fumbling, while adjustable settings for bass roll-off, LED ring mode, and microphone switch behavior (push to mute, push to talk, or momentary toggle) adapt the module to your rig's specific needs. Input impedance stays well below 600 ohms, with recommended load impedance above 2,000 ohms, ensuring compatibility with standard professional microphone preamps and audio interfaces.
Key Features
- Balanced XLR output, male, 3-pin connector
- Voltage range: 9 to 52 V
- Current consumption: 4 mA
- Frequency response: 20–20,000 Hz
- Adjustable 150 Hz bass cut filter
- Noiseless microphone switch with 26 dB level reduction
- BCD switch for operating mode recall
- Adjustable LED ring mode and mic switch configuration
- Gold-plated integrated system connector
- Electrical impedance: < 600 Ohms
- Recommended load impedance: > 2,000 Ohms
- Compact dimensions: 100.5 mm height × 19.1 mm diameter; 63 g weight
The AKG PAESP M delivers the transparent, artifact-free phantom power conditioning that professional recording and live work demand, letting your microphone's true character and your performance translate directly into every take.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AKG PAESP M is a compact phantom power module engineered to deliver clean, transparent power conditioning to AKG condenser microphones in live or studio settings. Built for touring and session work, its 63-gram form factor fits into any rig without bulk, while gold-plated connectors and balanced XLR output ensure rock-solid signal integrity on stage and in the field. The noiseless microphone switch, adjustable bass cut filter, and multi-mode BCD control give you surgical command over your signal chain without introducing unwanted artifacts or switching noise.
Frequently Asked Questions
What is phantom power and why do I need this module?
Phantom power is the DC voltage that powers condenser microphones through the XLR cable. This module delivers clean, noise-free phantom power conditioning to AKG condenser microphones, ensuring transparent audio reproduction and eliminating unwanted artifacts in your recordings or live signal.
Will this work with my power supply and microphone preamp?
Yes. The PAESP M operates across 9 to 52 volts, adapting to virtually any power source, and its input impedance stays below 600 ohms with recommended load impedance above 2,000 ohms, ensuring compatibility with standard professional microphone preamps and audio interfaces.
What control options does the module offer?
The BCD switch system allows you to recall multiple operating modes, while adjustable settings let you enable a 150 Hz bass cut filter, configure the noiseless microphone switch (push to mute, push to talk, or momentary toggle) with 26 dB level reduction, and control LED ring behavior—giving you surgical command without switching noise.
How portable is this module for field recording or gigging?
At just 63 grams with a 19.1 mm diameter and 100.5 mm height, the PAESP M is pocket-sized and integrates seamlessly into any recording rig or live sound setup without adding bulk, making it ideal for touring, remote sessions, and on-the-fly deployments.
