AKG PR4500 BD8 Reference Wireless Camera Receiver (old SKU: 3203H00150
Description

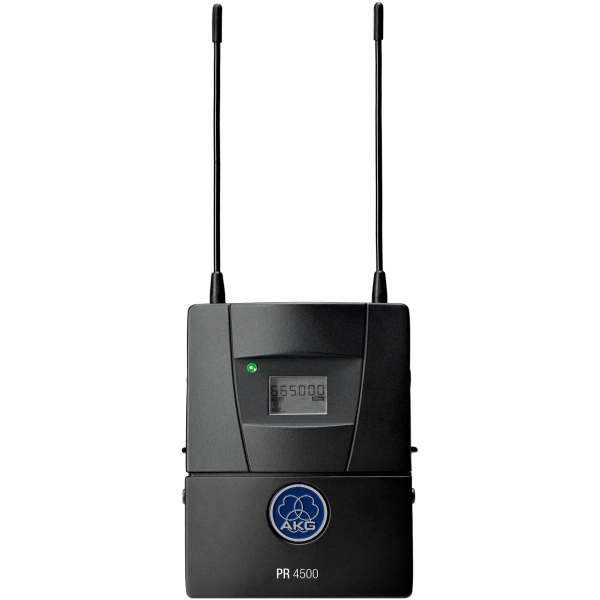

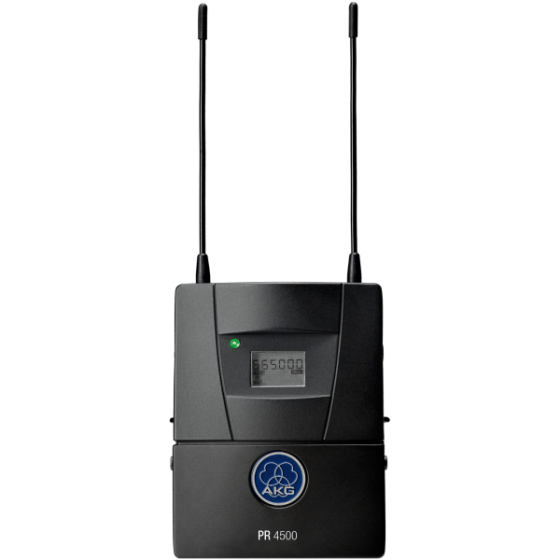

AKG PR4500 BD8 Reference Wireless Camera Receiver
The PR4500 BD8 is a professional wireless camera receiver built for demanding broadcast, film, and studio environments where reliable, transparent audio performance is non-negotiable. Its all-metal construction and intuitive backlit display create a compact, field-ready unit that integrates seamlessly into existing wireless camera rigs. The responsive wireless link feels direct and immediate, allowing operators and talent to move freely across distances up to 100 meters without compromising signal integrity or audio fidelity.
Wireless Performance & Range
Operating across band 8 (570–600 MHz) with 1220 selectable frequencies in 25 kHz steps, this receiver provides exceptional frequency flexibility and interference avoidance in congested RF environments. True diversity reception and a 100-meter line-of-sight radio range ensure solid, dropout-free coverage throughout typical shooting scenarios, while -100 dBm radio sensitivity maintains locked signals even in challenging conditions.
Audio Quality & Design
The PR4500 BD8 delivers transparent audio across a 35–20,000 Hz frequency bandwidth with exceptional clarity: 100 dB-A signal-to-noise ratio and 0.8% THD at 1 kHz ensure the receiver adds no coloration or distortion to your source material. Power the unit via two standard AA batteries for 12 hours of continuous operation, or integrate the optional AKG BP 4000 battery and charging system for simplified set management on extended shoots.
Key Features
- All-metal body construction for durability in field use
- Backlit display with remaining battery life readout
- Two AA battery powered with 12-hour operating time
- Compatible with AKG BP 4000 battery and charging system
- Band 8 operation: 570–600 MHz with 1220 selectable frequencies (25 kHz steps)
- 100-meter line-of-sight radio range
- True diversity reception for reliable signal lock
- FM modulation with -100 dBm radio sensitivity
- Simultaneous broadcast capability on up to 18 channels
- Audio frequency bandwidth: 35–20,000 Hz
- 100 dB-A signal-to-noise ratio with 0.8% THD at 1 kHz
- 2-pin female audio output (camera connection) and 1/8" stereo headphone jack
- 2 external antenna connections for optimized reception
- Operating temperature range: -10 to 55°C
The PR4500 BD8 combines broadcast-grade audio performance, robust wireless range, and straightforward field operation—making it an essential component for professionals who demand transparency and reliability in any wired or wireless camera system.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AKG PR4500 BD8 is a professional wireless camera receiver built for broadcast, film, and studio work where clean, transparent audio and reliable range are critical. Operators and talent get up to 100 meters of line-of-sight coverage with true diversity reception and zero coloration—100 dB-A signal-to-noise ratio and 0.8% THD ensure your source material arrives uncompromised at the camera. All-metal construction, backlit display, and 12-hour battery life make this a dependable workhorse for multi-day shoots and live broadcasts.
Frequently Asked Questions
What is the operating range, and will it work in my shooting environment?
The PR4500 BD8 delivers up to 100 meters of line-of-sight range with true diversity reception and -100 dBm radio sensitivity, so it maintains solid signal lock even in challenging RF conditions. If you're operating indoors or with obstacles, effective range will be shorter; line-of-sight performance is optimal.
How long does a battery charge last, and what are my power options?
Two standard AA batteries power the unit for 12 hours of continuous operation. You can also integrate the optional AKG BP 4000 battery and charging system for extended shoots and simplified set management.
What audio quality can I expect from this receiver?
The PR4500 BD8 delivers transparent audio across 35–20,000 Hz with a 100 dB-A signal-to-noise ratio and only 0.8% THD at 1 kHz, ensuring zero coloration or distortion added to your source material.
How does this receiver connect to my camera, and what connectivity options are available?
The unit features a 2-pin female audio output for direct camera connection and a 1/8-inch stereo headphone jack for monitoring. It also has two external antenna connections for optimized reception in demanding RF environments.
Can I run multiple receivers simultaneously, and how much frequency flexibility do I have?
The PR4500 BD8 operates across band 8 (570–600 MHz) with 1220 selectable frequencies in 25 kHz steps and supports simultaneous broadcast capability on up to 18 channels, making it flexible for multi-camera and multi-talent setups.
