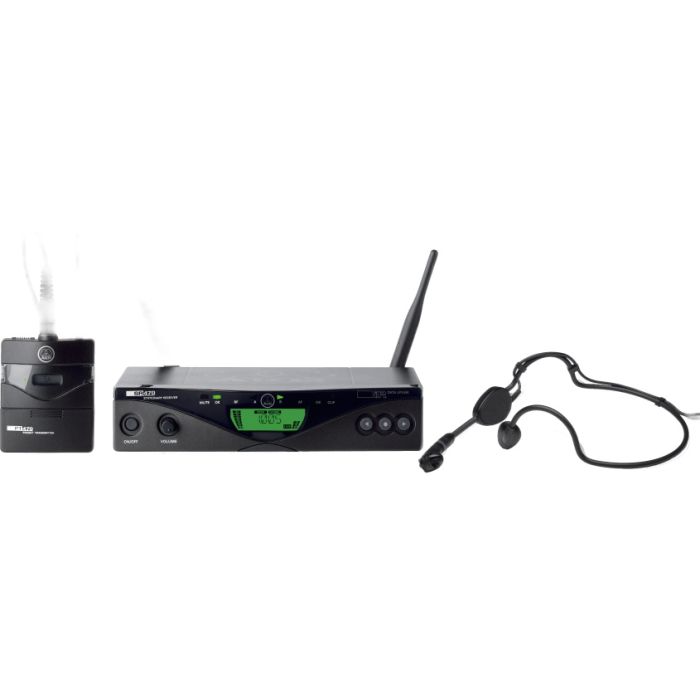

AKG WMS470 Sports Set BD8 – Professional Wireless Microphone System

The WMS470 Sports Set BD8 delivers professional-grade wireless performance in a compact, athlete-friendly package. The C544 L headworn microphone sits securely with its rugged neck-wrap headband, keeping hands free during intense physical activity while the lightweight PT470 bodypack transmitter clips discreetly to waistband or belt. This system prioritizes reliability and durability in demanding environments where standard microphone stands and cabling create obstacles.

Audio Performance & Range

Operating across the 570.1–600.5 MHz frequency range with FM modulation, this system achieves a signal-to-noise ratio of 120 dB-A and delivers audio bandwidth from 35 to 20,000 Hz—capturing full-spectrum vocals and ambient sound with clarity. The SR470 diversity receiver employs multi-channel reception to minimize dropouts and interference, supporting up to 16 simultaneous channels within the same frequency band for multi-user deployments.

Design & Reliability

The C544 L condenser microphone features a cardioid polar pattern with external shock mount and moisture shield, engineered to reject handling noise and withstand perspiration exposure during live sports commentary, fitness instruction, and outdoor events. Battery life reaches up to 14 hours on a single AA lithium battery, while the pilot tone system continuously transmits transmitter data and low-battery warnings to prevent mid-event failures.

Key Features

SR470 diversity receiver with multi-channel reception capability
PT470 compact bodypack transmitter with rugged construction
C544 L cardioid condenser headworn microphone
Carrier frequency range 570.1–600.5 MHz with 30.5 MHz switching bandwidth
FM modulation with 35–20,000 Hz audio bandwidth
120 dB-A signal-to-noise ratio
Up to 14 hours operation per AA lithium battery
Up to 16 simultaneous channels within frequency band
External shock mount on microphone for mechanical-noise rejection
Moisture shield for humidity protection during sports and outdoor use
Pilot tone system with transmitter data and low-battery indication
Includes belt clip, AA battery, power supply, and rack mount unit

The WMS470 Sports Set BD8 combines professional audio quality with the ergonomic freedom that active environments demand, making it the go-to choice for broadcast sports, fitness facilities, and outdoor event coverage.
