AMX HPX-U400-R-MET-7E Metreau Keypad module for Hydraport
Description
AMX HPX-U400-R-MET-7E Metreau Keypad Module for HydraPort
The HPX-U400-R-MET-7E is a professional-grade control keypad designed for integration into AMX HydraPort chassis systems. Its ramped carrier design delivers an ergonomic angled installation that keeps controls accessible and visible in rack environments, while the responsive tactile buttons and illuminated feedback make real-time operation intuitive and reliable.
Integration & Connectivity
This module connects via a single RJ-45 Ethernet connector (10/100) that supplies both power and data through PoE (802.3af, class 0), eliminating the need for separate power runs. The 8-position mini DIP switch allows flexible device addressing on the AxLink Bus, enabling seamless integration into larger control system architectures.
Environmental & Physical Specifications
Built for stationary installation, the keypad operates reliably in climate-controlled indoor spaces with an operating temperature range of 32° to 104° F (0° to 40° C) and relative humidity tolerance of 5% to 85% non-condensing. The 4 HydraPort Unit footprint provides a standardized mechanical fit within the HydraPort modular system.
Key Features

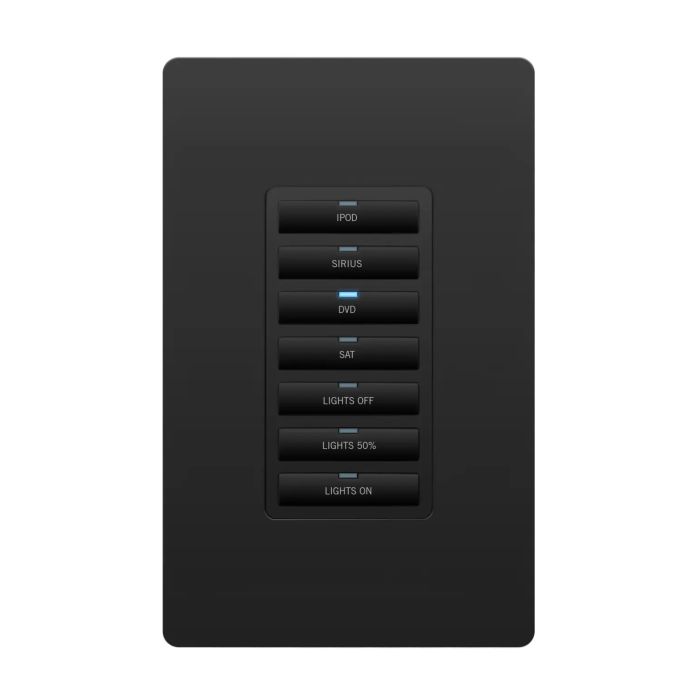

- 7 tactile push buttons with blue LED indicators for visual feedback
- Ramped carrier for angled installation in HydraPort chassis
- PoE powered via single RJ-45 Ethernet connector (802.3af, class 0)
- 10/100 Mbps Ethernet connectivity for AxLink Bus integration
- 8-position mini DIP switch for device address configuration
- 4 HydraPort Unit width for standard modular installation
- Operating temperature: 32° to 104° F (0° to 40° C)
- Relative humidity: 5% to 85%, non-condensing
- Indoor use specification for controlled environments
- Professional-grade control module for AMX system architecture
This keypad module delivers straightforward, dependable control interface functionality for AMX-based automation and AV systems that demand robust PoE integration and scalable address assignment.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX HPX-U400-R-MET-7E is a professional control keypad module that slides into AMX HydraPort chassis systems, offering 7 tactile buttons with blue LED feedback for live mixing, AV switching, and conferencing control. Built for stationary rack installations, it draws power and data over a single Ethernet cable (PoE) and integrates seamlessly into larger control architectures via AxLink addressing. Choose it for dependable, ergonomic command of complex live-sound and AV setups without running separate power lines.
Who This Is For
Great for
- ✓ Live Sound Control
- ✓ Install Audio
- ✓ AV System Integration
- ✓ Conferencing Setup
Not the best pick for
- – Portable/Mobile Use
- – Outdoor Installation
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What is PoE and why does it matter?
PoE (Power over Ethernet, 802.3af class 0) delivers both power and network data through a single RJ-45 cable, eliminating the need for a separate power connection. This simplifies rack wiring and reduces cable clutter in live-sound and install environments.
How do I set the device address on this keypad?
The 8-position mini DIP switch on the module allows you to assign a unique address on the AxLink Bus, enabling multiple keypads or control modules to coexist in the same AMX system without conflicts.
Is this keypad suitable for outdoor or portable use?
No; the HPX-U400-R-MET-7E is designed for stationary, climate-controlled indoor installation only and operates safely between 32° and 104° F with non-condensing humidity under 85%.
What is the ramped carrier design and why is it important?
The ramped carrier tilts the keypad at an ergonomic angle within the HydraPort chassis, keeping the 7 buttons and LED indicators visible and accessible for operators controlling live events, broadcasts, or AV systems from a standing position.
What size chassis slot does this module occupy?
The keypad is 4 HydraPort Units wide, providing a standardized mechanical fit that integrates into the modular HydraPort system alongside other compatible modules.
