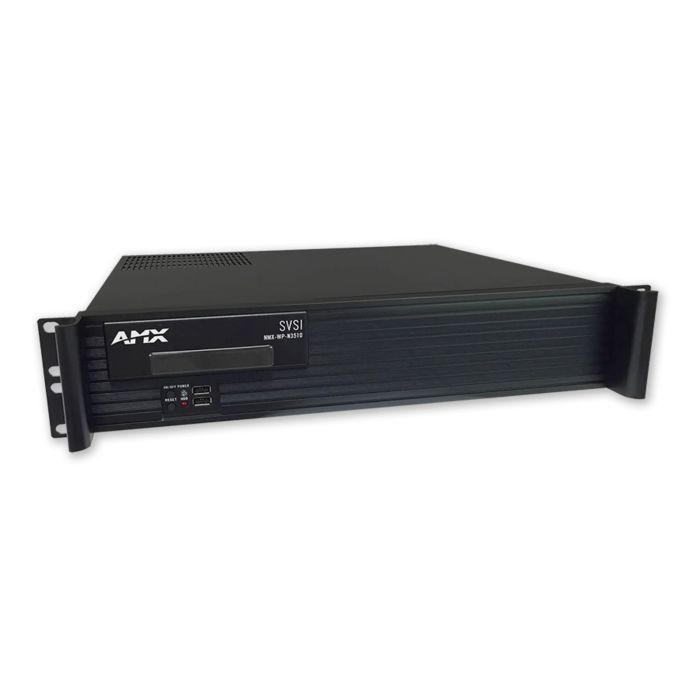

AMX NMX-WP-N3510 N3000 Series Windowing Processor, 9x1
Description
AMX NMX-WP-N3510 N3000 Series Windowing Processor, 9x1
The NMX-WP-N3510 is a professional-grade video windowing processor built for sound operators, venue managers, and system technicians running multi-source video feeds in live and installed environments. Its compact dual rack unit form factor fits into standard racks at any venue or mobile installation, delivering a single unified HD output from up to nine independent sources without requiring external scaling or switching equipment.
Video Processing & I/O Architecture
This processor accepts up to nine H.264 video streams delivered via Ethernet and outputs a single windowed HD video stream at resolutions up to 1080p60. The unit communicates exclusively through RJ45 Ethernet ports using SVSI protocol, with MPEG-TS, RTP, or RTSP transport methods supported, while the single HDMI output port delivers the composited result to displays or downstream systems.
Integration & Scalability
Multiple units can be cascaded together to exceed the standard nine-input limitation, enabling scalable solutions for large-scale venues and complex event setups. The network-centric design eliminates the need for proprietary cabling or specialized video connectors, leveraging standard IT infrastructure already in place at most facilities.
Key Features
- Dual rack unit form factor for standard 19-inch rack installation
- Nine video stream inputs via RJ45 Ethernet ports
- Single HDMI output for windowed HD video
- Supports resolutions up to 1080p60
- H.264 main- and high-profile stream compatibility
- SVSI protocol for video stream delivery
- MPEG-TS, RTP, and RTSP transport protocol support
- Cascadable architecture for extended input configurations
- Network-based architecture using standard Ethernet connectivity
- Professional-grade video composition and windowing control
The NMX-WP-N3510 delivers reliable multi-source video composition for live events and installed systems where simplicity, network efficiency, and professional output quality keep shows running smoothly.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX NMX-WP-N3510 is a professional video windowing processor that combines up to nine independent H.264 video streams into a single 1080p60 HD output, designed for control room installations, live event switching, and multi-source AV system integration. It runs entirely over standard Ethernet using SVSI protocol, eliminating the need for specialized video cabling and fitting into any standard 19-inch rack. Choose this for venues, broadcast facilities, and installed systems where reliable multi-source video composition and network-based scalability are critical to daily operations.
Who This Is For
Great for
- ✓ AV system integration
- ✓ control room installations
- ✓ multi-source video composition
- ✓ live event switching
Not the best pick for
- – consumer home theater
- – single-source applications
- – budget-conscious installations
Skill level: Professional
Frequently Asked Questions
How many video sources can this processor handle?
The NMX-WP-N3510 accepts up to nine independent H.264 video streams via Ethernet. Multiple units can be cascaded together to exceed nine inputs for larger installations.
What output resolution and refresh rate does it support?
The processor outputs a single windowed HD video stream at resolutions up to 1080p60 via its HDMI port.
What video formats and transport protocols are supported?
The unit supports H.264 main- and high-profile streams delivered over Ethernet using SVSI protocol with MPEG-TS, RTP, or RTSP transport methods. All video input and communication is handled through standard RJ45 Ethernet ports.
Does this require special cabling or rack equipment?
No. The processor fits into a standard 19-inch dual rack unit form factor and uses only standard Ethernet connectivity, so it integrates seamlessly with existing IT infrastructure without proprietary video cables or specialized connectors.
What skill level is required to operate this equipment?
This is professional-grade equipment designed for AV system integrators and control facilities with experience in networked video systems; it is not intended for consumer home theater or single-source applications.
