AMX SDX-514M-DX Solecis 5x1 4K Muti-Format Digital Switcher with DXLin
Description

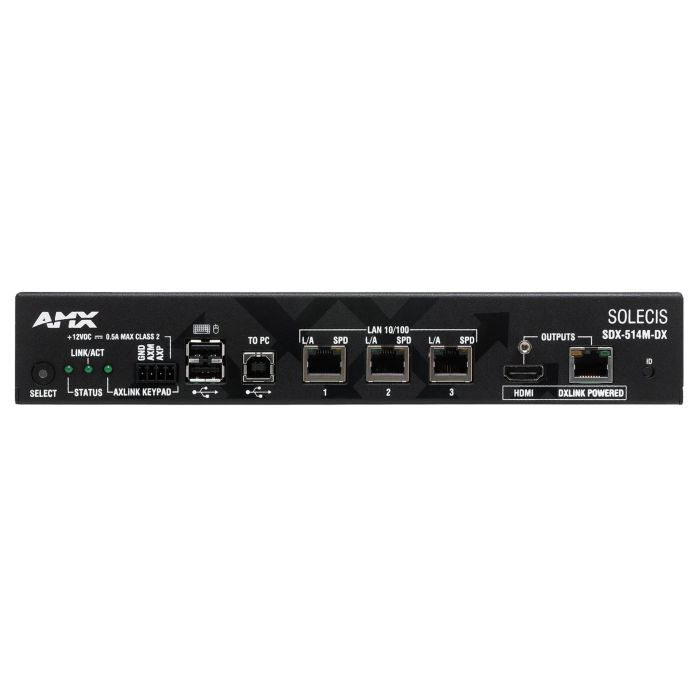

AMX SDX-514M-DX Solecis 5x1 4K Multi-Format Digital Switcher with DXLink Output
The AMX SDX-514M-DX is a professional-grade digital switcher purpose-built for live sound and video work where multiple source switching and 4K distribution demand rock-solid reliability. Its compact footprint and straightforward control layout make it practical for both fixed venue installations and mobile rigs requiring dependable multi-format handling in real-world conditions.
Video & Audio Processing
This switcher handles five independent inputs—three HDMI and two VGA with embedded audio—and routes them through built-in scaling that supports full 4K60 4:4:4 resolution, as well as cinema 4096 x 2160p formats at 24/25/30 Hz and 4:2:0 at 60 Hz. Audio processing includes Dolby TrueHD support, ensuring lossless surround content passes through uncompressed for broadcast and streaming applications.
Connectivity & Road Reliability
Dual outputs provide an HDMI feed and a DXLink mirroring output that transmits video and control over shielded Ethernet cabling up to 100 meters, eliminating the need for long HDMI runs in distributed systems and reducing cable clutter on touring rigs. USB Type B connectivity supports integration with larger automation and control systems for venues and rental deployments.
Key Features
- 3 HDMI inputs and 2 VGA inputs with embedded audio
- 1 HDMI output and 1 DXLink mirroring output
- Supports 4K60 4:4:4 video resolution
- Supports 3840 x 2160p @ 24/25/30 Hz
- Supports 4096 x 2160p @ 24/25/30 Hz (cinema format)
- Supports 3840 x 2160p @ 60 Hz, 4:2:0
- Supports 4096 x 2160p @ 60 Hz, 4:2:0
- Dolby TrueHD audio format support
- Built-in scaling for multi-format video standards
- DXLink transmission over shielded Ethernet up to 100 meters
- USB Type B control connectivity
- Compact dimensions: 5.50" W × 11.00" H × 11.00" D
- RoHS, FCC Class A, CE, UL-Listed, CSA Approved, IEC60950, UL94-V0 certified
The SDX-514M-DX delivers broadcast-grade switching and extended-distance signal distribution in a reliable, space-efficient package ready for the road.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX SDX-514M-DX is a professional 5-input 4K digital switcher designed for AV installations, corporate conferencing, broadcast, and live event production where reliable multi-format video routing and long-distance distribution are essential. It handles three HDMI and two VGA inputs with embedded audio, delivering full 4K60 4:4:4 resolution and cinema 4K formats, plus DXLink output that transmits video and control over Ethernet up to 100 meters for flexible venue and installation setups. Choose this switcher for dependable, broadcast-grade signal management in fixed installations and mobile production rigs that demand compact footprint, lossless audio support, and straightforward control integration.
Who This Is For
Great for
- ✓ AV installation
- ✓ corporate conferencing
- ✓ broadcast
- ✓ live event production
- ✓ distributed video systems
Not the best pick for
- – music production
- – live sound reinforcement
- – home audio
Skill level: Professional
Frequently Asked Questions
What video formats and resolutions does the SDX-514M-DX support?
The switcher supports full 4K60 4:4:4 resolution, cinema 4K (4096 x 2160p) at 24/25/30 Hz, standard 4K (3840 x 2160p) at 24/25/30 Hz, and 4K at 60 Hz in 4:2:0 chroma subsampling. Built-in scaling allows it to handle multiple video standards across its five inputs.
How far can I transmit video using the DXLink output?
The DXLink mirroring output transmits video and control data over shielded Ethernet cabling up to 100 meters, eliminating the need for long HDMI runs in distributed AV systems and venue installations.
What inputs and outputs does this switcher have?
The SDX-514M-DX features three HDMI inputs and two VGA inputs with embedded audio, plus one HDMI output and one DXLink output. USB Type B connectivity allows control integration with larger automation platforms.
Does it support surround audio formats?
Yes, the switcher supports Dolby TrueHD, ensuring lossless surround audio passes through uncompressed alongside video.
What is the physical size and where can it be installed?
The SDX-514M-DX measures 5.50 inches wide by 11.00 inches high by 11.00 inches deep, making it compact enough for fixed installations, mobile event setups, and rack-mount environments where space efficiency is important.
