Audix ADX20i-P Miniature Clip-On Condenser Cardioid Microphone
Miniature instrument microphone with shockmounted gooseneck primarily used for miking brass.
Designed,assembled,and tested by Audix in the USA,the ADX-20i is a miniaturized condenser microphone used for professional stage and studio applications. The ADX-20i is known for its clarity,excellent transient response,resistance to feedback,SPL handling and ease of operation; and is primarily used for miking saxophone and other brass instruments. The ADX-20i is characterized with a uniformly controlled cardioid polar pattern. This provides excellent isolation and feedback control on stage,and natural sound reproduction at very close distances.

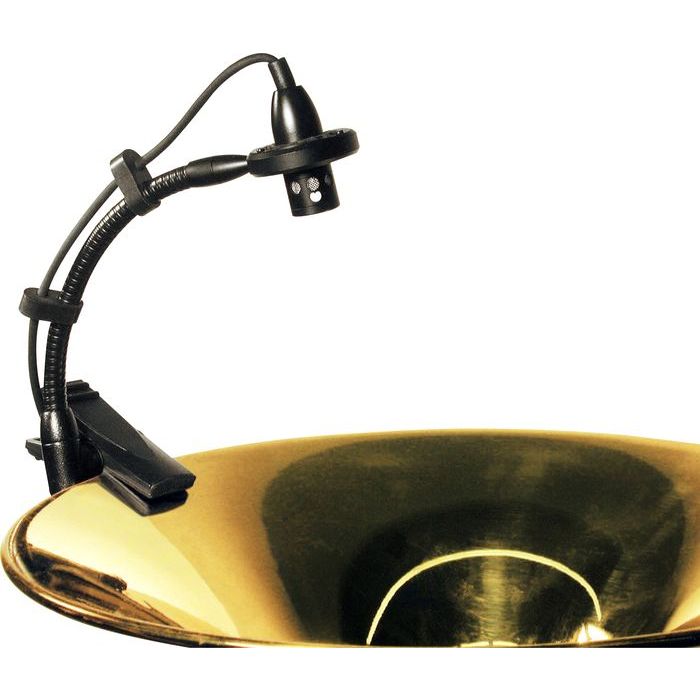

With a smooth and accurate response over a frequency range of 80 Hz - 20 kHz,the ADX-20i is lightweight,compact and simple to use. Housed in an aluminum ring and isolated by means of a rubber shock mount system,the ADX-20i comes with the gooseneck clip with spring tension clip (MC-20i) for easy mounting to the bell of an instrument. A number of optional accessories are available which allows for the ADX-20i to be used on a mic stand for a wider variety of applications.
The ADX-20i is designed for use with the Audix RAD360 wireless system. The ADX20i-P is designed for use with a microphone cable. The ADX20i-P operates on phantom voltage of 9-52 Volts and is supplied with a phantom power adapter (APS-910),6’ integrated mic cable,gooseneck clip (MC-20i) and carrying pouch.
- Saxaphone
- Trombone,trumpet
- Room ambience,recording
- Accordian
| Type | Pre-polarized Condenser |
| Polar Pattern | Cardioid,Hypercardioid |
| Frequency Response | 40Hz - 20kHz |
| Impedence | 250 Ohms |
| Sensitivity | @1k 5.8 mV/Pa (C) / 5.4 mV/Pa (HC) |
| Condition | New |
|---|---|
| Country of Manufacture | United States |
