Crown CDi4x1200 4x1200 Power Amplifier
Description

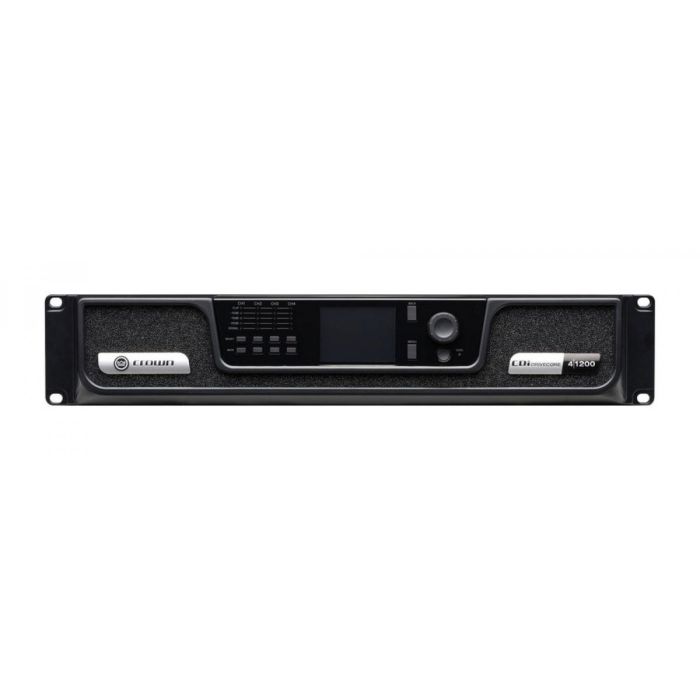

Crown CDi4x1200 4-Channel Power Amplifier
The Crown CDi4x1200 is a compact, networked four-channel amplifier built for live sound and installed applications where reliability and remote monitoring are non-negotiable. Its lightweight chassis and front-panel LCD interface make rapid deployment straightforward, while DriveCore amplification delivers clean, stable power across 4 independent channels. Designed for touring sound engineers and permanent venue installations alike.
Power Delivery & Flexibility
Each channel outputs 1,200W at 4 ohms, with support for 70/100V constant-voltage operation and standard 4/8 ohm impedance loads. The amplifier can drive up to 100Vrms speaker loads without requiring a step-up transformer, letting you configure speaker placement flexibly across medium to large stages and halls without reinventing your rig.
Control & Processing
Integrated onboard DSP includes parametric EQ, adjustable crossovers, and input/output delay, all accessible via the front-panel LCD or HiQnet Audio Architect software for wireless remote control and monitoring during live events. GPIO/Aux ports enable integration with external control systems, and pre-loaded JBL speaker tunings cut setup time for familiar speaker arrays.
Key Features
- 1,200W per channel at 4 ohms
- 4-channel amplifier configuration
- DriveCore Technology with Network Control and Monitoring
- 70/100V constant-voltage operation
- 4 and 8 ohm impedance support
- Up to 100Vrms speaker load capability without transformer
- Onboard DSP with 8-band input parametric EQ
- 8-band output parametric EQ and adjustable crossover
- Up to 1,000ms input delay and 100ms output delay
- Front-panel LCD interface
- HiQnet Audio Architect wireless control software
- GPIO/Aux port for external system integration
- Pre-loaded JBL speaker tunings
The CDi4x1200 combines professional-grade amplification with modern networked control, delivering the power and configurability needed for demanding live sound applications and long-term venue installations.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Crown CDi4x1200 is a professional 4-channel power amplifier delivering 1,200W per channel with onboard DSP, networked control, and flexible impedance/voltage operation for live venues and installed systems. Sound engineers and touring crews choose it for rock-solid amplification, remote monitoring via HiQnet software, and the ability to tune speaker systems on the fly without a separate processor. Its compact footprint and 70/100V constant-voltage support make it reliable for everything from theater rigs to mid-to-large venue PA systems.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Studio Sessions
- ✓ Installation Audio
Not the best pick for
- – Home Recording
- – Practice
Skill level: Professional
Frequently Asked Questions
What does 1,200W per channel at 4 ohms mean for my PA system?
Each of the four channels delivers 1,200 watts into a 4-ohm speaker load, giving you 4,800W of total amplification. The amp also supports 8-ohm loads and constant-voltage 70/100V systems, so you can configure it for nearly any installation topology.
Can I control this amp remotely during a live show or session?
Yes. The Crown CDi4x1200 includes HiQnet Audio Architect wireless control software for remote monitoring and adjustment of all DSP parameters, delays, and EQ settings without touching the amp itself.
What onboard processing does it include?
It features 8-band parametric input EQ, 8-band parametric output EQ, adjustable crossovers, and up to 1,000ms input delay plus 100ms output delay. GPIO/Aux ports allow integration with external control systems, and pre-loaded JBL speaker tunings are included for faster setup.
Does it work with 70/100V constant-voltage speaker systems?
Yes. The amp supports 70/100V constant-voltage operation and can drive up to 100Vrms speaker loads without requiring a step-up transformer, making it flexible for both standard impedance and distributed-voltage installations.
Is this amp suitable for smaller venues or practice spaces?
This is a professional installation and live-sound amplifier designed for medium to large venues. It is not intended for home recording or practice use.
