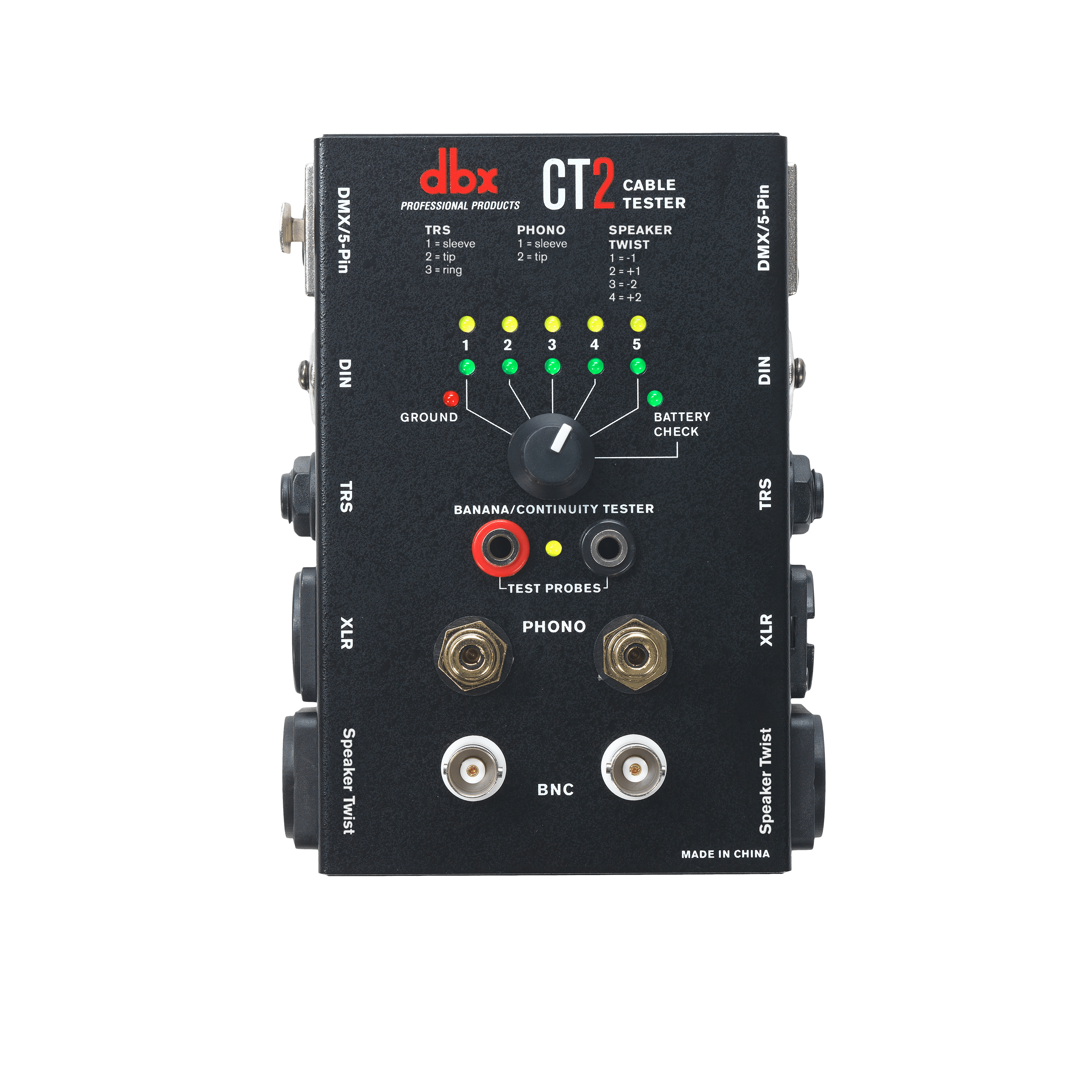

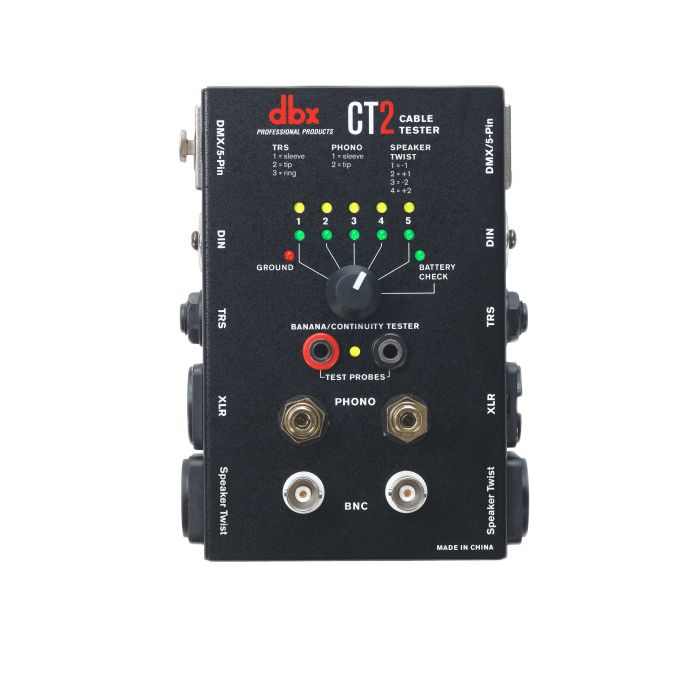

dbx CT-2 Cable Tester

The dbx CT-2 is a compact, handheld cable testing unit built for quick troubleshooting in live sound, studio, and installation environments. Its rugged construction and straightforward operation make it an essential tool for identifying cable faults without guesswork or downtime. This is the kind of device that earns its place in every tech's toolkit.

Testing Capability & Connector Support

The CT-2 accommodates nine different connector types with dual ports for each, allowing you to test both sides of a cable in one unit. Coverage includes Speaker Twist, XLR, RCA Phono, BNC, MIDI (5-pin DIN), DMX (5-pin), 1/4" TRS, and Banana connectors—spanning virtually every standard audio and DMX cable in professional use.

Design & Operation

A 6-position rotary selector with individual LEDs provides immediate visual feedback for up to five pins plus an internal battery life indicator, eliminating any ambiguity during testing. The integrated Banana connector continuity tester with beeper and LED adds another layer of diagnostic capability. Super-rugged construction ensures reliable performance through years of field use, and the unit runs on a standard 9V battery (not included).

Key Features

6-position rotary selector with individual LEDs for pin-by-pin testing and battery check
Dual Speaker Twist connectors for 4 pin-to-pin connection testing
Dual XLR connectors (1 Male, 1 Female) for 3 pin-to-pin testing
Dual RCA Phono connectors for 2 pin-to-pin testing
Dual BNC connectors for 2 pin-to-pin testing
Dual MIDI (5-pin DIN) connectors for 5 pin-to-pin testing
Dual DMX (5-pin) connectors for 5 pin-to-pin testing
Dual 1/4" TRS connectors for 3 pin-to-pin testing
Dual Banana connectors for 1 pin-to-pin testing with beeper and LED indicator
Super-rugged construction for durability and extended field life
Powered by standard 9V battery

The dbx CT-2 delivers dependable cable diagnostics across professional audio and DMX applications with a simple, proven design.

Condition	New
Country of Manufacture	China
