dbx ZC-BOB Wall Mounted Break Out Box
Description

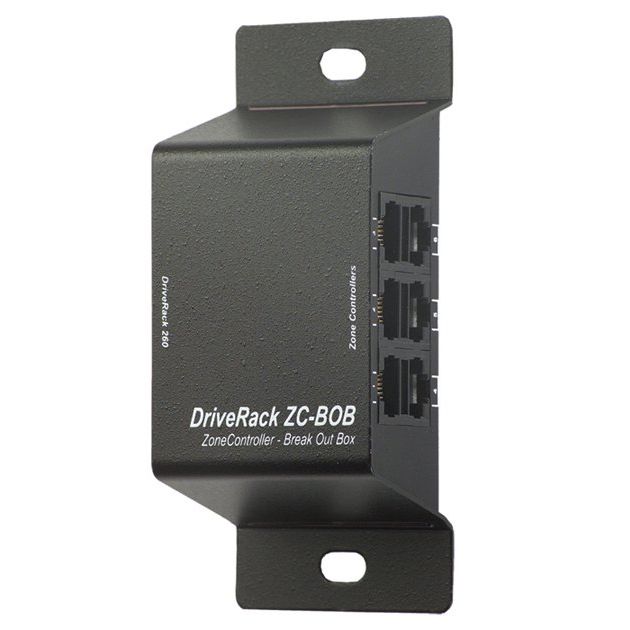

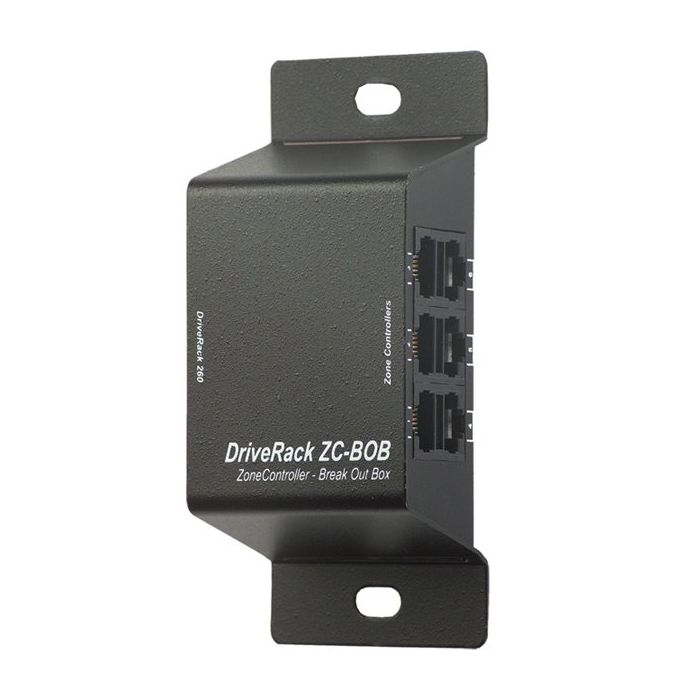

dbx ZC-BOB Wall-Mounted Break Out Box
The dbx ZC-BOB is a wall-mounted control interface designed for distributed audio system installations where multiple zone controllers need to communicate over extended cable runs. This passive break-out box consolidates DC control voltage signals from up to six zone controller devices into a single, organized mounting solution, eliminating the need for individual point-to-point wiring throughout a facility.
Control Architecture & Connectivity
The unit features six RJ-45 input jacks and one RJ-45 output jack, all supporting standard CAT5 or CAT5E cables for reliable signal transmission. This architecture allows the ZC-BOB to aggregate control voltages from multiple zone controllers and route them efficiently over distances up to 1000 feet when using parallel wiring with fewer devices, scaling down to approximately 300 feet with all six controllers connected simultaneously.
Installation & Durability
Built with a black finish and engineered to meet stringent safety certifications including UL 60065, IEC 60065, EN 55013, and E60065, this break-out box delivers professional-grade reliability for permanent installations. As a passive device, it requires no external power supply—control voltage is transmitted directly through the RJ-45 connections, simplifying integration into existing control systems.
Key Features
- Six RJ-45 input jacks for zone controller connections
- One RJ-45 output jack for signal aggregation
- Supports standard CAT5 and CAT5E cable
- DC control voltage distribution capability
- Supports up to six zone controller devices
- Cable length up to 1000 feet with parallel wiring configuration
- Passive design with no external power requirement
- UL 60065 and IEC 60065 certified
- EN 55013 compliant
- Black finish
- Wall-mounted form factor for organized installation
The ZC-BOB is an essential component for multi-zone audio control systems requiring centralized signal management across large facilities.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The dbx ZC-BOB is a wall-mounted break-out box that consolidates DC control signals from up to six zone controllers into a single organized point, eliminating messy point-to-point wiring across venues and installations. Built as a passive device with no power requirements, it handles cable runs up to 1000 feet and mounts directly to your wall for clean, professional system architecture. Choose it for reliable, code-certified multi-zone audio control in theaters, churches, clubs, or any facility running distributed sound systems.
Frequently Asked Questions
How many zone controllers can the ZC-BOB handle at once?
The ZC-BOB accepts input from up to six zone controller devices through its six RJ-45 input jacks, consolidating all control voltages into a single output jack.
How far can I run cables from zone controllers to this break-out box?
Cable runs support up to 1000 feet with parallel wiring using fewer devices, and approximately 300 feet when all six controllers are connected simultaneously. Standard CAT5 or CAT5E cables are required.
Does the ZC-BOB need external power?
No. The ZC-BOB is a passive device that transmits DC control voltage directly through RJ-45 connections, eliminating the need for a power supply.
What safety certifications does this unit have?
The ZC-BOB meets UL 60065, IEC 60065, EN 55013, and E60065 standards, ensuring professional-grade reliability for permanent installations.
Is wall mounting the only installation option?
The ZC-BOB is designed specifically as a wall-mounted form factor for organized, centralized signal management in distributed audio systems.
