dbx ZC3 Wall-Mounted Zone Controller

dbx ZC3 Wall-Mounted Zone Controller

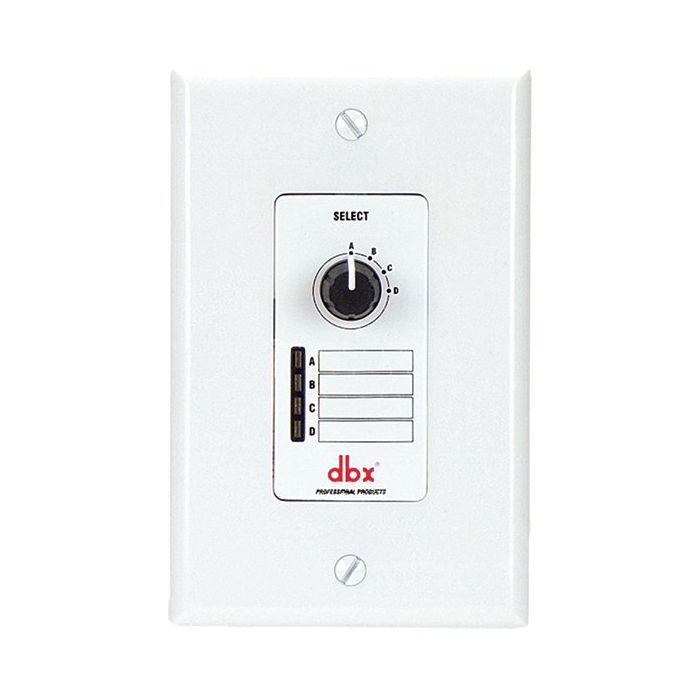

The dbx ZC3 is a compact wall-mounted control interface designed for seamless integration into installed sound systems. Its elegant white finish and straightforward wall-mount form factor blend discreetly into any environment while providing tactile, intuitive access to zone control functions. This unit communicates via standard networking cables, making it straightforward to position remote from processing equipment.

Connectivity & Range

The ZC3 connects via two RJ-45 connectors using CAT5 or CAT5E cables, with cable runs supported up to 1000 feet depending on the number of zone controllers in the system. This extended range eliminates the need for expensive custom wiring and allows flexible placement of control surfaces throughout a venue or installation.

Control & Integration

The unit employs analog DC voltage logic control for zone source selection, volume muting, program selection, scene selection, and fire safety muting across compatible dbx processors. DIP switches enable device identification and configuration, while the programmable rotary switch supports direct integration with dbx DriveRack 220i and 260 devices, as well as dbx ZonePRO units for flexible system assignments.

Key Features

• Two RJ-45 connectors for CAT5/CAT5E cable connections
• Supports cable lengths up to 1,000 feet with CAT5/CAT5E rated cabling
• Programmable rotary switch for program selection on dbx DriveRack 220i and 260
• Programmable source selection and page/scene assignment for dbx ZonePRO devices
• DIP switch configuration for device identification via CAT5 connection
• Analog DC voltage logic control for zone management and muting functions
• Integrated fire safety muting capability
• Elegant white finish for aesthetic integration
• UL 60065 and IEC 60065 certified safety compliance
• EN 55013 and E60065 performance standards certification

The ZC3 delivers reliable remote control over dbx distributed audio systems without requiring dedicated power or complex installation, making it an essential component for multi-zone commercial and installed sound applications.
