What is the AC15's frequency response, and will it handle bass-heavy music?

The AC15 covers 90 Hz–18 kHz at ±3 dB, extending to 80 Hz at –10 dB. It is not designed for bass-heavy music reproduction; it excels at clear midrange and treble, making it ideal for vocals, dialogue, acoustic instruments, and transparent mixes where precision matters more than deep low-end.

How does the AC15 handle different venue sizes and orientations?

The AC15 delivers a 90° × 90° coverage pattern with an 8 dB directivity index, ensuring consistent sound across listening areas without dead zones. Four M8 suspension points allow secure mounting in any orientation—floor, wall, or rigging—making it flexible for venues, portable PA setups, and studio applications.

What connectivity options does it have?

The AC15 includes dual Neutrik Speakon NL4 connectors wired in parallel plus covered barrier strip terminals, offering flexibility whether you're patching into a standard audio snake, mixing console, or portable amp.

Is the AC15 built to survive road use and outdoor conditions?

Yes. The multi-ply hardwood enclosure with DuraFlex textured finish meets Mil-Std 810 and IPx3 environmental ratings, protecting against road stress, weather exposure, and stage wear. At 4.7 kg (10.5 lb), it is lightweight enough for touring without sacrificing durability.

How does the AC15 compare to the Yamaha DBR10, QSC K8.2, and Electro-Voice EKX-12P?

All four are compact 2-way active speakers for live and portable PA use. The AC15 emphasizes honest, uncolored midrange clarity and tight directivity; compare specs and listen to demos of each to match your venue size, throw distance, and tonal preference.

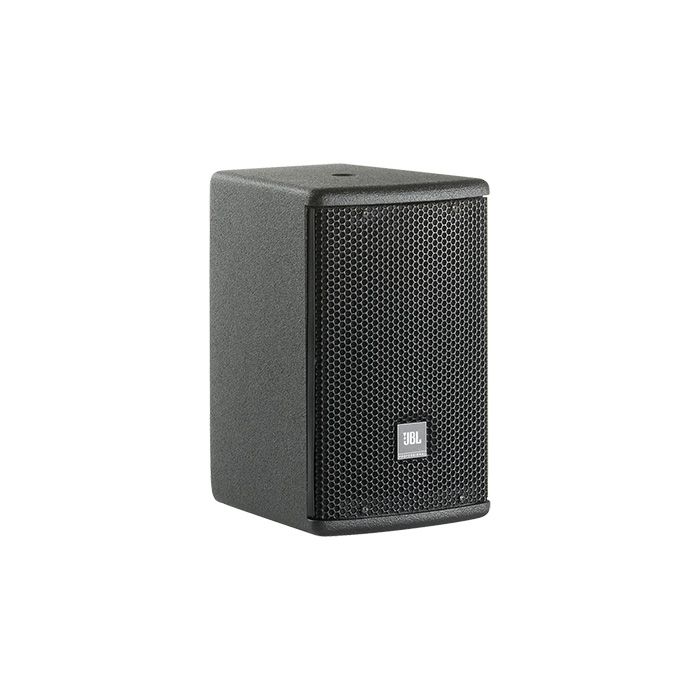

JBL AC15 Ultra Compact 2-Way Loudspeaker

The JBL AC15 delivers pristine clarity and punchy midrange response in a compact footprint that punches well above its size class. This 2-way system responds with remarkable immediacy and tonal balance, pairing a 5.25-inch woofer with crisp tweeter definition to give you honest, uncolored sound that cuts through in live settings and translates across genres. The compact dimensions and lightweight construction make it easy to transport and integrate into existing rigs, while professional-grade sonics ensure reliable performance night after night in venues, studios, and portable PA applications.

Audio Performance & Coverage

The JBL 2251 woofer (135 mm with 38 mm voice coil) and JBL 201J tweeter (25 mm dome) work together to deliver a frequency response of 90 Hz–18 kHz (±3 dB), with extended reach down to 80 Hz at –10 dB. A 90° × 90° coverage pattern and directivity index of 8 dB ensure consistent sound across the listening area without excessive throw or dead zones, keeping your mix balanced from front to back.

Build & Live Reliability

The multi-ply hardwood enclosure with DuraFlex textured finish is built to withstand the demands of gigging and road use, meeting Mil-Std 810 and IPx3 weather rating standards for durability in any environment. Dual Neutrik Speakon NL4 connectors wired in parallel plus covered barrier strip terminals provide flexible wiring options for quick hookup, while four M8 suspension points (top, bottom, and rear) support secure mounting in any orientation for maximum setup versatility.

Key Features

1 × JBL 2251, 135 mm (5.25 in) SFG woofer with 38 mm edge wound voice coil
1 × JBL 201J, 25 mm (1 in) voice coil dome tweeter
Frequency Response (±3 dB): 90 Hz–18 kHz
Extended Frequency Range (–10 dB): 80 Hz–20 kHz
System Power Rating: 225 W AES; 150 W / 300 W / 600 W (Continuous/Program/Peak) IEC
Impedance: 16 ohms
Coverage Pattern: 90° × 90°; Directivity Index: 8 dB
Dimensions: 241.3 × 150.3 × 177.8 mm (9.5 × 5.9 × 7.0 in)
Weight: 4.7 kg (10.5 lb)
Multi-ply hardwood enclosure with DuraFlex textured finish
Dual Neutrik Speakon NL4 connectors plus covered barrier strip terminals
Four M8 suspension points; Mil-Std 810 and IPx3 environmental rating

The AC15 combines professional-grade sonics with road-tested durability in a format designed for working musicians and sound operators who demand transparent playback without compromise.

Condition	New
Country of Manufacture	Mexico
