JBL AC2215/64 Compact 2-Way Loudspeaker with 1 x 15 LF White
Share
Out of stock
- SKU
- AC2215-64-WH
Description
JBL AC2215/64 Compact 2-Way Loudspeaker with 1 x 15 LF White

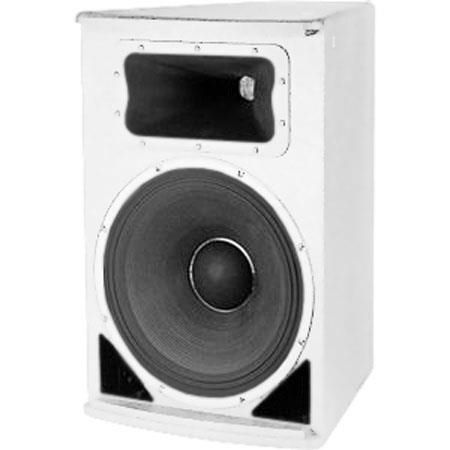

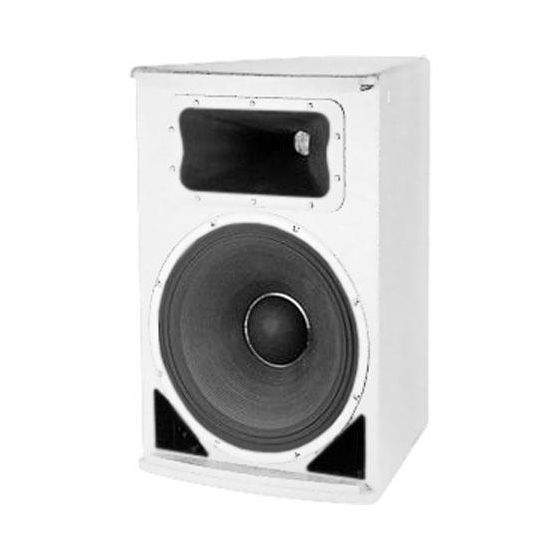

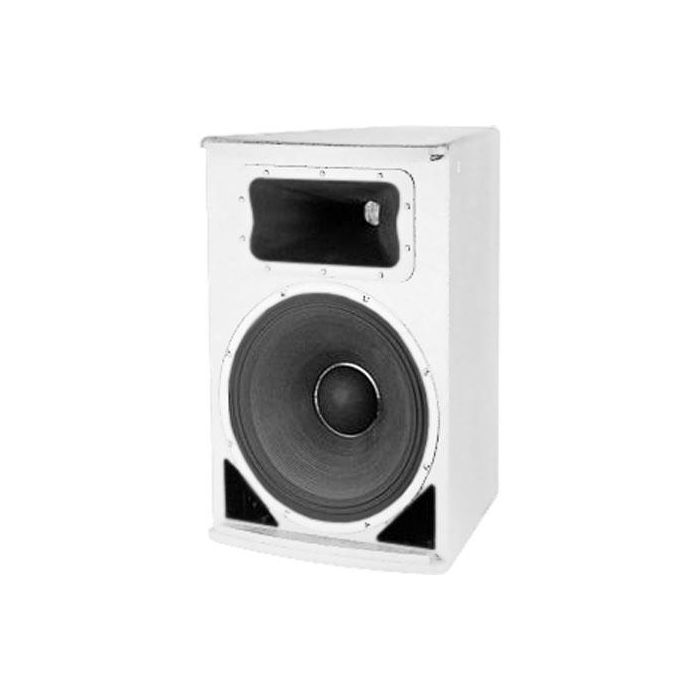

The AC2215/64 is a compact yet powerful 2-way system built around a 15" low-frequency driver paired with a 1" compression driver, delivering consistent coverage and high output in a footprint suitable for mid-sized venues and installations. This speaker balances extended bass response with controlled pattern precision, making it a reliable choice for live sound, fixed installations, and rental applications where compact dimensions cannot compromise acoustic performance.
Acoustic Performance and Coverage
The system achieves 97 dB SPL sensitivity at 1W/1m and sustains a 121 dB continuous average SPL (127 dB peak), supplying serious output from modest amplifier power. A 60° x 40° coverage pattern controlled by JBL's PT™ Progressive Transition™ Waveguide ensures smooth, predictable dispersion across the listening area with minimal phase artifacts and low distortion.
Power Handling and Flexibility
The AC2215/64 accommodates 250 W long-term IEC power rating (1000 W peak over 100 hours) via its switchable bi-amp/passive crossover, allowing operation either passively fed from a single amplifier or actively driven with separate amp channels for each driver. The 4th-order Linkwitz-Riley crossover at 2.2 kHz maintains phase coherence between drivers for seamless midrange integration.
Key Features
- 380 mm (15") low-frequency driver with 25 mm (1") voice-coil compression driver
- Frequency Response (±3 dB): 50 Hz – 17 kHz
- Frequency Range (–10 dB): 42 Hz – 19 kHz
- System Sensitivity: 97 dB SPL (1W @ 1m, passive mode)
- Maximum SPL: 121 dB continuous average / 127 dB peak
- Long-Term Power Rating (IEC, passive mode): 250 W (1000 W peak), 100 hrs
- LF Transducer Power Rating: 275 W AES (1100 W peak, 2 hrs) / 250 W (1000 W peak, 100 hrs)
- HF Transducer Power Rating: 30 W AES (120 W peak, 2 hrs)
- 4th-order Linkwitz-Riley crossover (24 dB/oct) at 2.2 kHz
- Bi-amp/passive switchable crossover modes
- 60° x 40° coverage pattern with PT™ Progressive Transition™ Waveguide
- M10 threaded suspension points for rigging and mounting flexibility
The AC2215/64 delivers professional-grade output and pattern control in a compact format, backed by JBL's engineering and suited to demanding live sound, installation, and rental environments.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AC2215/64 is a compact 2-way PA speaker combining a 15" woofer and 1" compression driver to deliver 121 dB continuous SPL with a controlled 60° x 40° coverage pattern—ideal for mid-sized venues, touring rigs, and fixed installations where you need serious output without a massive footprint. Switchable bi-amp and passive modes let you run it flexibly from a single amp or split across channels, while the Linkwitz-Riley crossover keeps the midrange tight and phase-coherent for live clarity. Road-tested JBL engineering and M10 rigging points make it a dependable workhorse for rental fleets and permanent venue setups.
Frequently Asked Questions
What are the key differences between passive and bi-amp modes?
In passive mode, a single amplifier powers both drivers through the internal crossover (250 W long-term, 1000 W peak over 100 hours). In bi-amp mode, you feed the LF and HF drivers separately with dedicated amplifier channels, giving you independent gain and EQ control over each band and allowing the full 275 W AES power rating on the woofer and 30 W AES on the tweeter.
Is this speaker suitable for smaller venues or will it be overkill?
The AC2215/64 is purpose-built for mid-sized venues; its compact footprint and 121 dB continuous SPL make it flexible for clubs, theaters, rental rotations, and fixed installations where footprint matters but output cannot be compromised. It pairs well as a main or side-fill speaker in systems where larger boxes are impractical.
What amplifier power do I need to drive it?
In passive mode, the speaker's 97 dB sensitivity means modest amplifier power goes a long way—a 250 W amp per speaker will deliver 121 dB continuous output. For bi-amp operation, plan at least 250 W for the LF driver and 30–50 W for the HF driver to maximize headroom and transient response.
How does the 60° x 40° coverage pattern help in live sound?
The 60° horizontal by 40° vertical pattern—shaped by JBL's PT Progressive Transition Waveguide—ensures smooth, predictable dispersion across the listening area with minimal phase artifacts and beaming. This consistency makes the speaker reliable for main PA, fills, and installations where audience coverage must remain flat and natural across the venue.
Can I rig this speaker from the ceiling?
Yes, the AC2215/64 includes M10 threaded suspension points designed for secure rigging and mounting, making it suitable for permanent or temporary ceiling and truss installations in venues and rental applications.
