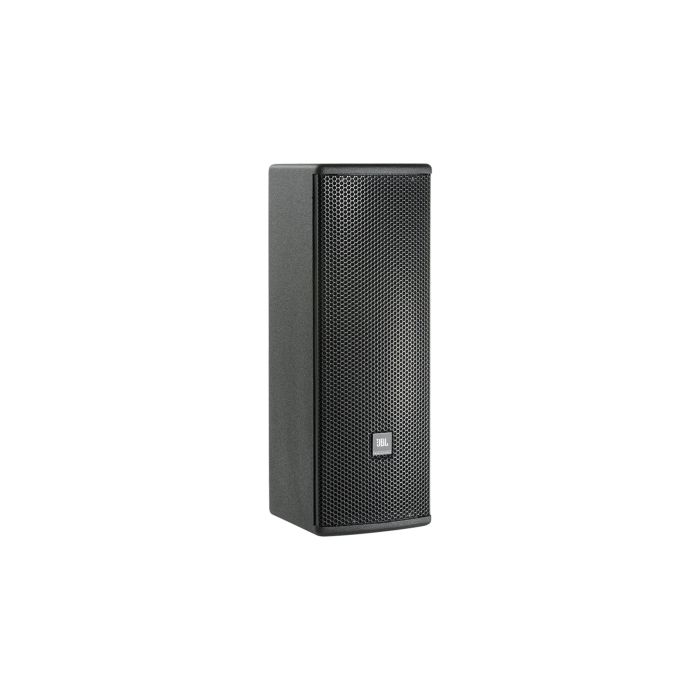

JBL AC26 Ultra Compact 2-Way Loudspeaker with 2 x 6.5 LF
Share
In stock
- SKU
- AC26
Description
JBL AC26 Ultra Compact 2-Way Loudspeaker with 2 × 6.5 LF
The JBL AC26 delivers punchy, articulate sound in a remarkably compact footprint, making it an ideal solution for gigging musicians and touring acts demanding professional audio performance without excessive bulk. Dual 6.5-inch woofers provide warm, responsive low-end punch that cuts through live mix situations, while the integrated compression driver ensures crisp highs with clarity and definition. This ultra-compact two-way system adapts beautifully across venues and applications while maintaining the professional tonal character JBL is known for.
Live Performance & Sonic Character
The AC26 achieves a 92 dB SPL sensitivity rating at 1W/1m, paired with a 117 dB maximum SPL capability, delivering substantial output from modest amplifier power. The 2.2 kHz crossover cleanly transitions between the dual low-frequency drivers and single compression driver, ensuring seamless integration across the 70 Hz – 18 kHz frequency response (±3 dB) with extended response down to 55 Hz at –10 dB.
Durability & Portability
Constructed from 12 mm and 15 mm multi-ply hardwood plywood with a durable black DuraFlex finish, the enclosure is engineered for professional durability while remaining portable at 11 kg (24.3 lb). The 90° × 90° coverage pattern with Directivity Factor Q of 7 ensures consistent sound distribution, while IPx3 weather resistance and Mil-Std 810 compliance accommodate demanding installation environments.
Key Features
- 2 × JBL 226J 6.5-inch (165 mm) SFG drivers with 50 mm edge-wound voice coils
- 1 × JBL 2414H 25 mm compression driver with integrated PT-B99HF-1 waveguide
- System sensitivity: 92 dB SPL/1W/1m
- Maximum SPL: 117 dB (1 meter)
- Frequency response (±3 dB): 70 Hz – 18 kHz; extended to 55 Hz (–10 dB)
- 8 ohm nominal impedance with 350 W AES power rating (180 W continuous / 360 W program / 720 W peak)
- 2.2 kHz crossover point
- Dual Neutrik Speakon NL4 connectors in parallel plus barrier strip terminals (accepts up to 10 AWG wire)
- 90° × 90° coverage pattern with Q = 7 (500 Hz – 16 kHz average)
- IPx3 weather resistance and Mil-Std 810 environmental compliance
- Compact dimensions: 539.8 × 199.4 × 226.1 mm (21.3 × 7.8 × 8.9 inches)
- 12 mm and 15 mm multi-ply hardwood plywood enclosure with black DuraFlex finish
The JBL AC26 pairs professional-grade components, robust construction, and proven JBL acoustics into a genuinely portable package that performs without compromise.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AC26 is an ultra-compact two-way PA speaker built around dual 6.5-inch woofers and a compression driver, delivering 117 dB maximum SPL in a portable 11 kg package. Sound operators and live-sound engineers will appreciate the punchy, articulate output that cuts through room noise, the consistent 90° × 90° coverage for even audience reach, and rugged construction with weather resistance for touring and venue installations. Choose it when you need professional SPL and tonal clarity without hauling full-size cabinets, backed by JBL's proven acoustic design and AES-rated power handling.
Frequently Asked Questions
What is the frequency response and will it handle full-range mix content?
The AC26 covers 70 Hz to 18 kHz (±3 dB) with extended response down to 55 Hz at –10 dB, providing solid low-end presence for vocals, instruments, and mix buses. The dual 6.5-inch woofers deliver warm, responsive punch in the fundamental range, while the compression driver handles crisp highs and vocal clarity.
How much power does this speaker need and what amps will work with it?
The AC26 is rated for 350 W AES power (180 W continuous, 360 W program, 720 W peak) at 8 ohms nominal impedance. It achieves 92 dB SPL at just 1 W/1 m, meaning modest amplifiers can drive it efficiently; match your amp to the venue size and desired SPL headroom.
Is this speaker suitable for outdoor or touring use?
Yes—the AC26 features IPx3 weather resistance and Mil-Std 810 environmental compliance, making it reliable for challenging venues and weather. At 11 kg (24.3 lb), it is genuinely portable for touring, and the durable hardwood plywood enclosure with black DuraFlex finish withstands road and installation demands.
What connectors does it have and how do I wire multiple speakers?
The AC26 includes dual Neutrik Speakon NL4 connectors wired in parallel, plus barrier-strip terminals accepting up to 10 AWG wire for flexible installation and series/parallel linking of multiple units.
What is the coverage pattern and where should I aim this speaker?
The AC26 delivers a 90° × 90° coverage pattern with a Directivity Factor Q of 7 (averaged 500 Hz–16 kHz), ensuring consistent sound across audiences in mid-size rooms, small venues, and monitor positions without narrow lobing.
