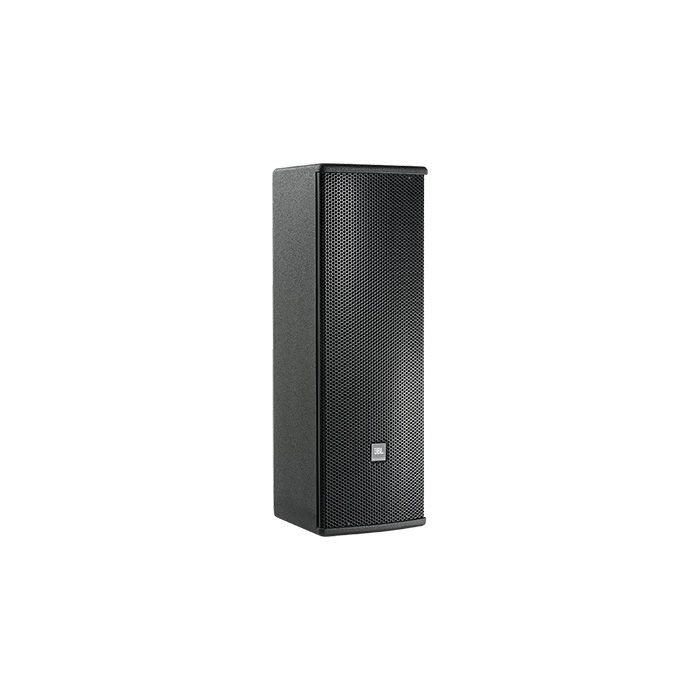

JBL AC28/95 Compact 2-Way Loudspeaker with 2 x 8 LF
Share
Out of stock
- SKU
- AC28-95
. Description
JBL AC28/95 Compact 2-Way Loudspeaker with 2 × 8 LF
The AC28/95 is a compact 2-way loudspeaker built for touring bands, mobile sound companies, and live venues that demand reliable output in a portable package. Its dual 8-inch woofer configuration delivers punchy, controlled low-end in a size that fits truck beds and stage corners alike, while the compression driver high-frequency section cuts through live mix chaos with clarity and presence.
Acoustic Performance and Coverage
This system achieves a 120 dB maximum SPL at 1 meter with 94 dB system sensitivity, meaning you get substantial stage volume without taxing your amp rack. The 90° × 50° coverage pattern provides the directional control needed for tight venue placement and predictable dispersion across the room—no surprises during soundcheck.
Durability and Connectivity
Constructed from 12 mm and 15 mm exterior grade multi-ply hardwood plywood with Black DuraFlex™ finish, the enclosure handles the road: repeated loading, weather exposure, and the wear of regular touring. Dual Neutrik NL4 plus screw terminal connectors give you flexible wiring options for any rig setup, while six M8 suspension points let you hang this speaker in any orientation from the truss or pole.
Key Features
- 2 × JBL 228J 205 mm (8 in) woofers with 64 mm edge wound voice coils
- 1 × JBL 2408H-1 compression driver with 25 mm exit and 38 mm voice coil
- Passive crossover design
- Frequency Response ±3 dB: 65 Hz – 20 kHz
- Frequency Range (−10 dB): 53 Hz – 20 kHz
- Power Rating: 375W Continuous / 750W Program / 1500W Peak
- Coverage Pattern: 90° × 50°
- 8 Ohms nominal LF driver impedance
- Dimensions: 679.5 × 237.5 × 254.0 mm (26.8 × 9.4 × 10.0 in)
- Net Weight: 18.6 kg (40.9 lb)
- Six M8 suspension points (1 top, 3 bottom, 2 rear)
- Dual Neutrik NL4 plus screw terminal connectors
The AC28/95 combines proven JBL engineering with the road-ready ruggedness and straightforward rigging that working sound engineers depend on—consistent performance night after night, venue after venue.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AC28/95 is a compact 2-way loudspeaker built for live sound, installed venues, and portable PA applications that demand controlled directivity and rock-solid reliability. Its dual 8-inch woofers and compression driver deliver 120 dB SPL with a tight 90° × 50° coverage pattern, making it ideal for touring bands, corporate events, and venue techs who need dependable output in a road-friendly size. Choose it for its rugged hardwood construction, flexible rigging options, and consistent sonic performance across touring schedules and permanent installations.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Installed Sound
- ✓ Portable PA
- ✓ Event Reinforcement
Not the best pick for
- – Home Listening
- – Studio Monitoring
Skill level: Professional
Frequently Asked Questions
What kind of venues and applications is the AC28/95 built for?
The AC28/95 excels in installed sound systems, portable PA rigs, live event reinforcement, and touring applications. Its 90° × 50° coverage pattern is engineered for fixed installations and staged setups where directional control is essential, and its rugged hardwood construction with DuraFlex finish handles regular transport and venue demands.
How much SPL can this speaker deliver, and what amplifier power do I need?
The AC28/95 reaches 120 dB SPL at 1 meter with 94 dB system sensitivity. It handles 375W continuous, 750W program, and 1500W peak power, so a mid-sized professional amplifier (250–500W per channel into 8 ohms) will deliver full performance without excessive headroom requirements.
How is this speaker rigged and connected?
The AC28/95 features six M8 suspension points (one top, three bottom, two rear) for secure rigging in any orientation, and dual Neutrik NL4 plus screw terminal connectors support both professional Speakon cables and traditional wired connections for flexibility in any install.
What frequency range does it cover, and how does it handle speech versus music?
With a ±3 dB response of 65 Hz – 20 kHz and a −10 dB range down to 53 Hz, the AC28/95 delivers authoritative low end and neutral midrange clarity across both speech and music content. Its compression driver ensures articulate high-frequency output and consistent intelligibility in mixed-content applications.
How portable and durable is this speaker for touring?
At 18.6 kg (40.9 lb) and 679.5 × 237.5 × 254 mm, the AC28/95 balances compact size with road capability. Its 12–15 mm exterior-grade multi-ply hardwood plywood and DuraFlex finish are engineered to survive repeated transport, load-in/load-out, and professional touring schedules.
