JBL AM5215/66-WH Two-way full range loudspeaker (white)
Description

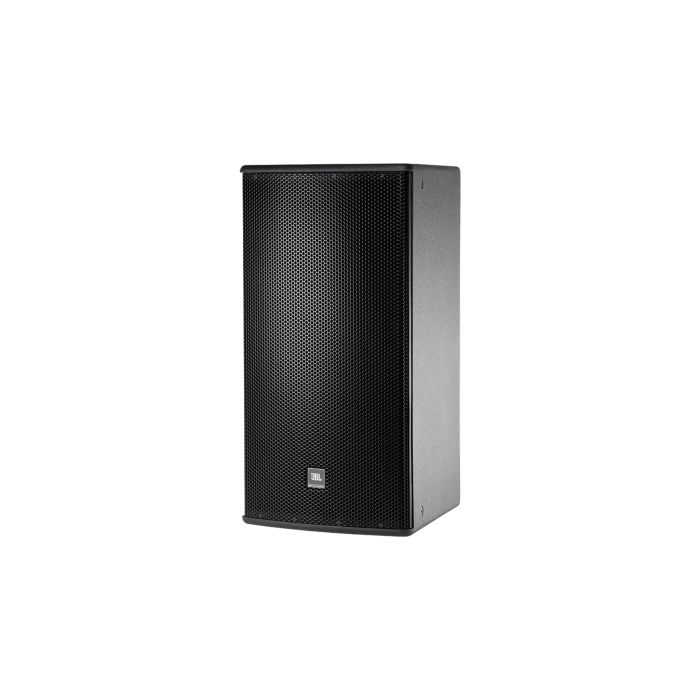

JBL AM5215/66-WH Two-Way Full Range Loudspeaker
The AM5215/66-WH is a medium-power, bi-amped or passive 2-way system engineered for consistent coverage in installed sound applications. Its compact footprint and rigging points make it suitable for permanent or temporary deployment in venues, houses of worship, and fixed installations where dependable full-range reinforcement is required.
Acoustic Performance
This system delivers 41 Hz to 18 kHz frequency response through a 15-inch dual voice coil low-frequency driver paired with a 38 mm compression driver fed by a 60° × 60° rotatable Progressive Transition waveguide. The combination ensures articulate midrange and treble while maintaining solid bass extension across mid-sized venues.
Construction & Reliability
Built from multiply birch wood with DuraFlex finish coating, the enclosure resists wear in both indoor and covered outdoor environments. A 14-gauge steel grille lined with acoustically transparent foam protects the drivers, while 15 M10 threaded attachment points provide multiple rigging options for permanent or temporary mounting.
Key Features
- 15-inch Differential Drive dual voice coil low-frequency driver (265H-1)
- 38 mm exit compression driver (2408H-1)
- Frequency response: 41 Hz to 18 kHz
- 60° × 60° rotatable Progressive Transition waveguide
- Multiply birch enclosure with DuraFlex finish
- 14-gauge steel grille with acoustically transparent foam lining
- Bi-amped or passive operation switchable
- NL4 Neutrik Speakon and barrier strip terminals
- Barrier terminals accept up to 10 AWG wire or 9 mm spade lugs
- 15 M10 threaded attachment points for rigging
- White finish
The AM5215/66-WH delivers road-tested JBL engineering with practical installation flexibility, making it a reliable foundation for sound systems that must run night after night in venues of all sizes.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL AM5215/66-WH is a compact, full-range two-way loudspeaker built for permanent or portable deployment in venues, houses of worship, and fixed installations where consistent sound coverage matters. Live-sound professionals and venue operators choose it for its articulate midrange, solid bass extension, and reliable rigging—delivering clear, balanced reinforcement across mid-sized rooms without fuss. The multiply birch enclosure with DuraFlex finish and 15 M10 threaded points give you flexibility to hang it, stand it, or mount it however your venue demands.
Who This Is For
Great for
- ✓ Live Performance
- ✓ House of Worship
- ✓ Fixed Installation
- ✓ Studio Monitoring
Not the best pick for
- – Portable DJ
- – Intimate Acoustic Venues
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What does the white finish (AM5215/66-WH) mean, and how durable is it?
The AM5215/66-WH is the white-finish variant. The enclosure is built from multiply birch wood with DuraFlex finish coating, which resists wear in both indoor and covered outdoor environments, making it suitable for long-term installations.
Can I use this speaker in both bi-amped and passive setups?
Yes. The AM5215/66-WH can operate in bi-amped or passive mode. It features both NL4 Neutrik Speakon terminals and barrier-strip connections that accept up to 10 AWG wire or 9 mm spade lugs for flexible wiring options.
What is the frequency response, and what size venue is it designed for?
The AM5215/66-WH delivers 41 Hz to 18 kHz frequency response through a 15-inch dual voice coil low-frequency driver and 38 mm compression driver. It is engineered for consistent coverage in mid-sized venues, houses of worship, and fixed installations.
How many rigging points does this speaker have, and can I hang it?
The AM5215/66-WH features 15 M10 threaded attachment points that provide multiple rigging options for permanent or temporary mounting, including hanging or stand deployment.
What makes the waveguide design important?
The 60° × 60° rotatable Progressive Transition waveguide feeds the compression driver and ensures articulate midrange and treble response while maintaining consistent full-range coverage across the listening area.
