JBL AM7212/26 Two-way full range loudspeaker B-Stock
In stock
Only 1 left
- SKU
- AM7212-26-B
Description

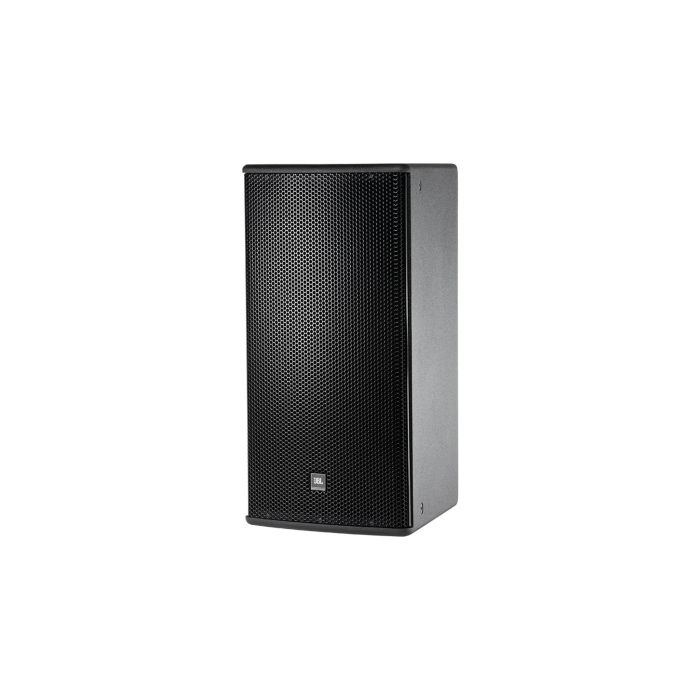

JBL AM7212/26 Two-way Full Range Loudspeaker
The JBL AM7212/26 delivers commanding output and articulate coverage across demanding live sound, installed, and touring applications. Its robust birch enclosure and precision-engineered driver pairing produce punchy lows and crisp highs with minimal distortion, making it a workhorse for venues, theaters, and mobile rigs requiring dependable midfield or main reinforcement.
Audio Performance
This system achieves 95 dB SPL sensitivity (1W @ 1m) and reaches 133 dB-SPL continuous average in bi-amp mode, with HF peaks at 139 dB, ensuring clean headroom across large spaces. The 42 Hz – 18 kHz (±3 dB) frequency response and 120° x 60° coverage pattern provide smooth, articulate sound from multiple listening positions without proximity issues or weak zones.
Design & Build
The enclosure features multi-ply birch construction with DuraFlex finish and heavy internal bracing, paired with a 14-gauge steel grille and acoustically transparent foam lining. Fifteen M10 threaded attachment points and a rotatable waveguide allow flexible rigging and orientation for vertical or horizontal deployment in any installation.
Key Features
- JBL Differential Drive dual voice coil 2262H 300 mm (12 in) low-frequency driver
- 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver
- Frequency range (-10 dB): 36 Hz – 20 kHz
- Frequency response (±3 dB): 42 Hz – 18 kHz
- Coverage pattern: 120° x 60°
- System sensitivity: 95 dB SPL (1W @ 1m, passive mode)
- Maximum SPL (bi-amp mode): LF 126 dB-SPL continuous / 132 dB peak; HF 133 dB-SPL continuous / 139 dB peak
- Maximum SPL (passive mode): 123 dB-SPL continuous / 129 dB peak
- Bi-amp/passive switchable crossover modes with 1.5 kHz passive crossover frequency
- Directivity factor (Q): 8.2; directivity index (DI): 9.1 dB
- Trapezoid multi-ply birch enclosure with DuraFlex finish and heavy bracing
- Rotatable waveguide for vertical or horizontal orientation; fifteen M10 threaded rigging points
The AM7212/26 combines professional-grade components, efficient power handling, and robust construction to deliver consistent, powerful reinforcement in installations and mobile touring scenarios.
More Information
| Condition | Refurbished |
|---|
Reviews
At a Glance
The JBL AM7212/26 is a two-way full-range loudspeaker built for live sound, touring, and installed venues—delivering 133 dB-SPL maximum output with punchy lows, crisp highs, and minimal distortion across a 120° x 60° coverage pattern. Its heavy-braced birch enclosure, dual-voice-coil 12-inch woofer, and compression driver handle demanding midfield and main reinforcement without fatigue or weak zones. Choose it for rock tours, theater installs, and mobile rigs where dependable high-output performance and road durability are non-negotiable.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Installed Sound Systems
Not the best pick for
- – Home Recording
- – Practice
Skill level: Professional
Frequently Asked Questions
What does B-Stock mean for this speaker?
B-Stock means the speaker is fully functional and meets all performance specifications, but may have minor cosmetic imperfections on the enclosure or finish. It carries the same audio quality and durability as new stock.
Is this speaker suitable for small venues or studio use?
No—the AM7212/26 is engineered for large venues, touring, and installed sound systems requiring high output and broad coverage. It is not designed for home recording or studio tracking applications.
What kind of output and coverage does it provide?
In bi-amp mode, the AM7212/26 reaches 133 dB-SPL continuous with HF peaks at 139 dB, paired with a 120° x 60° horizontal-by-vertical coverage pattern, ensuring articulate sound across large spaces without dead zones.
Can this speaker be rigged or oriented vertically and horizontally?
Yes—the rotatable waveguide and fifteen M10 threaded attachment points allow flexible rigging and deployment in vertical or horizontal orientation for any installed or touring setup.
How does it compare to the ELX200-12P or QSC K12.2?
All three are professional two-way midfield/main speakers for live and installed sound; the AM7212/26 offers robust JBL engineering, high headroom (139 dB HF peak), and a multi-ply birch enclosure built for touring durability and demanding venues.
