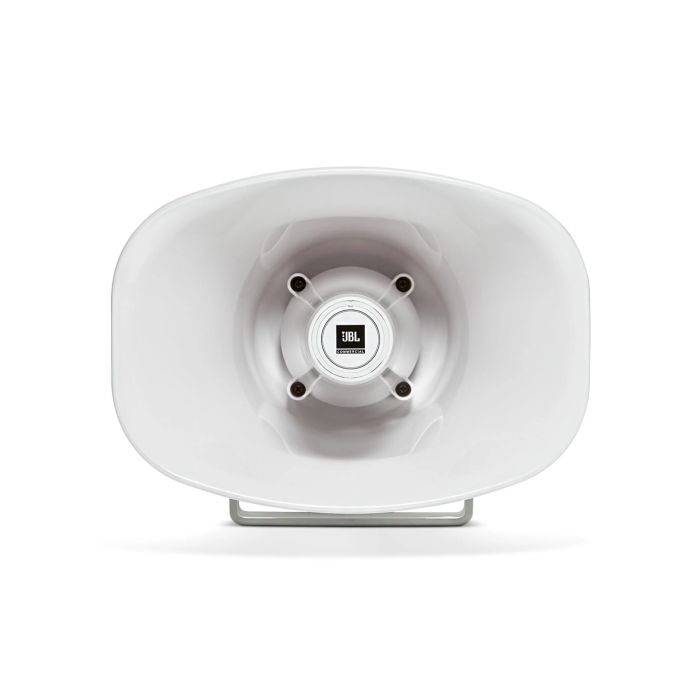

JBL Commercial 15 Watt Paging Horn (6 in masterpack) 15W PAGING HORN W

JBL Commercial 15 Watt Paging Horn with Transformer (6-Pack)

The JBL CSS-H15 is a workhorse paging horn built for venues, houses of worship, retail spaces, and live event sites that need rock-solid speech intelligibility indoors and out. This compact unit delivers focused acoustic coverage with minimal mounting real estate, making it reliable for facility managers, sound engineers, and anyone running announcements or emergency alerts. The included transformer integrates seamlessly into existing 70V or 100V distributed audio systems—no rewiring required.

Audio Performance & Coverage

The horn produces 105 dB average sensitivity (1 kHz – 6 kHz), peaking at 111 dB at 2 kHz, ensuring announcements cut through room noise and outdoor ambient sound. A 70° horizontal × 90° vertical coverage pattern focuses the sound where it needs to go while a 350 Hz high-pass filter strips away low-end rumble and system noise, keeping spoken word crisp and intelligible across the 400 Hz – 7.5 kHz frequency range.

Transformer & System Integration

The built-in 15-watt transformer supports both 70V and 100V line operation with selectable taps (15W, 7.5W, 3.8W, 1.9W, and 0.9W on 70V; 15W, 7.5W, 3.8W, and 1.9W on 100V), allowing you to dial in exact coverage levels and balance system impedance across a multi-horn deployment. An 8-ohm bypass capability up to 15W RMS (60W peak) lets you run it direct from a low-impedance amp if distributed voltage isn't in the picture.

Key Features

• 33 mm (1.3 in) driver with phenolic diaphragm for durable, consistent performance
• Built-in 15-watt transformer for 70V or 100V distributed audio systems
• Selectable transformer taps: 70V (15W, 7.5W, 3.8W, 1.9W, 0.9W) and 100V (15W, 7.5W, 3.8W, 1.9W)
• 8-ohm bypass operation up to 15W RMS (60W peak) for direct amplifier connection
• 105 dB average sensitivity (1 kHz – 6 kHz); 111 dB at 2 kHz
• 70° horizontal × 90° vertical coverage angle for focused sound projection
• 350 Hz high-pass filter reduces ambient noise and system rumble
• 400 Hz – 7.5 kHz frequency range optimized for speech intelligibility
• ABS plastic horn construction with stainless steel mounting hardware
• IP-65 weather rating for indoor and outdoor installations
• 6-pack quantity for multi-unit distributed paging deployments

This horn delivers the speech clarity, system flexibility, and weather resistance required for professional installations where consistent vocal intelligibility is non-negotiable.
