JBL Commercial CSS8018 8" Ceiling Spk, 10W
Description

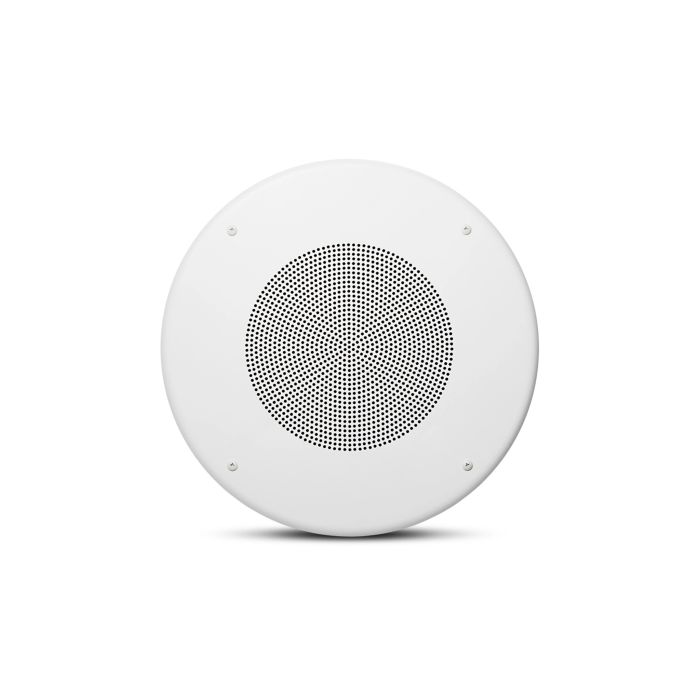

JBL Commercial CSS8018 8" Ceiling Speaker, 10W
The CSS8018 is a compact ceiling-mounted speaker built for installed audio systems where consistent, reliable coverage across multiple zones is essential. Its pre-assembled design and straightforward mounting minimize installation time, letting you focus on dialing in your system levels and coverage tuning across venues, conference spaces, retail environments, and other installations.
Audio Performance & Coverage
This dual-cone 8-inch driver delivers 97 dB sensitivity and a 110° conical coverage angle, spreading sound evenly across typical room dimensions without dead spots. The 50 Hz – 17 kHz frequency range handles intelligible speech and background music cleanly, keeping the low end controlled so your system stays punchy without mud—critical when you're running multiple zones on the same install.
Transformer & Installation
The integrated 10W multi-tap transformer supports 100V, 70V, and 25V distributed audio lines with selectable taps at 10W, 5W, 2.5W, and 1.3W, giving you the flexibility to load-balance your system and keep impedance matching clean across zones. Driver, grille, and transformer arrive pre-assembled and mount with included M4 x 40 mm sheet metal screws to a standard 11.25-inch bolt circle, reducing on-site assembly and getting your system up faster.
Key Features
- 200 mm (8 inch) dual-cone driver
- 97 dB sensitivity
- 20 watts continuous power handling
- Frequency range: 50 Hz – 17 kHz (−10 dB)
- 10W multi-tap transformer for 100V, 70V, and 25V lines
- Transformer taps: 10W, 5W, 2.5W, 1.3W
- Transformer insertion loss: 1.5 dB maximum
- 1-inch (25 mm) voice coil with Kapton former and high-temperature wire
- 110° conical coverage angle
- 11.25-inch bolt mounting circle; 12.9-inch grille diameter
- Pre-assembled driver, grille, and transformer
- Includes 4 pcs M4 x 40 mm mounting screws
The CSS8018 combines straightforward engineering with field-proven durability, making it a solid, dependable choice for building multi-zone installed audio systems that stay running night after night.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL Commercial CSS8018 is an 8-inch ceiling speaker built for commercial spaces—offices, retail, schools, and hospitality venues—where clear, even coverage matters more than bass or high-fidelity music. Its pre-assembled design, integrated 10W multi-tap transformer with flexible voltage options (100V, 70V, 25V), and 110° conical dispersion pattern make installation and system balancing straightforward. Choose it for reliable, intelligible speech and background audio across distributed audio systems without the complexity or cost of high-end studio equipment.
Who This Is For
Great for
- ✓ Commercial Installation
- ✓ Retail Audio
- ✓ Office Paging
- ✓ Educational Facilities
Not the best pick for
- – Live Performance
- – High-Fidelity Music
- – Bass-Heavy Content
Skill level: Beginner · Intermediate
Frequently Asked Questions
What voltage options does this speaker support?
The CSS8018 includes a 10W multi-tap transformer with selectable taps for 100V, 70V, and 25V distributed audio lines. Individual taps are available at 10W, 5W, 2.5W, and 1.3W, allowing flexible load balancing and system design across multiple zones.
What's the frequency response and coverage angle?
The 8-inch dual-cone driver delivers 50 Hz to 17 kHz (−10 dB) with a neutral midrange profile optimized for intelligible speech and background music. The 110° conical coverage angle provides even dispersion across typical commercial rooms without hot spots or dead zones.
Is this speaker suitable for high-fidelity music or live performance?
No. The CSS8018 is engineered for commercial paging, speech clarity, and background music in offices, retail, and educational settings. Its frequency response is not designed for bass-heavy content, live performance, or critical listening environments.
What mounting hardware and installation support is included?
The driver, grille, and transformer arrive pre-assembled and mount to a standard 11.25-inch bolt circle using 4 included M4 x 40 mm sheet metal screws. This minimizes labor during retrofits or new distributed audio system buildouts.
How much continuous power can this speaker handle?
The CSS8018 has a 20W continuous power handling rating and delivers 97 dB sensitivity, with a maximum transformer insertion loss of 1.5 dB across all voltage taps.
