JBL Control 322C 12" Hi-output Coaxial 2-WAY Ceiling Loudspeaker

Share
Pin it
Login to earn Guitar Bucks for sharing!
  • Brand new in original box
  • Full JBL manufacturer's warranty
  • Free shipping in the continental US
SKU
CONTROL-322C
Price when last in stock
$695.00
No sales tax on orders shipped outside California Most national retailers and online marketplaces now collect sales tax in nearly every state. Shipping outside California keeps roughly 6–10% in your pocket. Learn more
Description

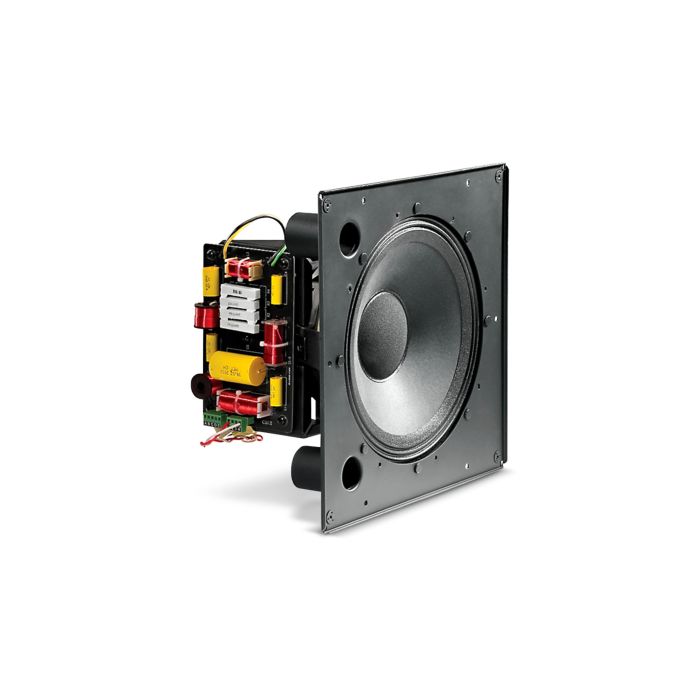

JBL Control 322C 12" Hi-output Coaxial 2-Way Ceiling Loudspeaker

The Control 322C is a professional-grade ceiling speaker built for venues, installed systems, and live sound applications where high output and consistent coverage matter. Its coaxial design delivers integrated midrange and treble response from a single acoustic center, eliminating phase complications and making system tuning straightforward. This is a reliable workhorse for distributed audio systems covering larger spaces.

Audio Performance & Coverage

The Kevlar-reinforced 300 mm woofer paired with a medium-format compression driver produces extended frequency response spanning 48 Hz to 19 kHz, ensuring full-spectrum reproduction across speech and music. The 90° broadband pattern control maintains consistent sound pressure and tonal balance throughout the coverage area, essential for even performance in ceiling-mounted arrays at venues and installations.

Power Handling & Road-Ready Integration

Rated for 400W long-term power capacity (1600W peak) with 8-ohm impedance, this speaker integrates smoothly into professional amplifier chains and supports both standalone and daisy-chained configurations via its removable locking connector with screw-down terminals. The compact 366 × 366 × 223 mm baffle fits standard ceiling cavities with a 378 × 378 mm cutout for the MTC-300BB12 backcan, keeping installation fast and dependable.

Key Features

  • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone
  • Medium-format compression driver in coaxial configuration
  • Frequency response: 48 Hz to 19 kHz
  • 90° broadband pattern control
  • 8-ohm impedance; 400W long-term power capacity (1600W peak)
  • IEC rating: 250 W continuous pink noise (1000 W peak) at 100 hrs
  • 1.4 kHz, 3rd order (18 dB/oct) crossover with high-pass to HF and low-pass to LF
  • Metal baffle and rim with driver pre-mounted to baffle
  • Ported enclosure design
  • Square baffle dimensions: 366 × 366 mm (14.4 × 14.4 in); depth 223 mm (8.8 in)
  • Ceiling cutout size: 378 × 378 mm (14.9 × 14.9 in)
  • Removable locking connector with screw-down terminals for input and loop output

The Control 322C delivers the output, pattern control, and reliability expected in professional sound systems, backed by JBL's proven coaxial engineering.

More Information
Condition New
Reviews
Write Your Own Review
You're reviewing: JBL Control 322C 12" Hi-output Coaxial 2-WAY Ceiling Loudspeaker
Your Rating:
loader
Loading...

You submitted your review for moderation.

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

At a Glance

The JBL Control 322C is a 12-inch coaxial ceiling speaker built for venues, commercial spaces, and touring sound systems where consistent coverage and high output are essential. Its Kevlar woofer and medium-format compression driver deliver full-spectrum audio (48 Hz–19 kHz) with a tight 90° pattern, so every seat or coverage zone hears the same balanced tone. Choose this for reliable, even sound reinforcement in larger rooms—it's a proven workhorse for installers and sound engineers running distributed speaker arrays.

Who This Is For

Best suited for Live Performance, Commercial Installation, Studio Sessions, Distributed Audio Systems
Tonal character Full-spectrum reproduction, consistent coverage, extended low-end, integrated midrange and treble, high output
Less specialized for Home Recording, Practice (it will do it; instruments voiced for that style do it more easily)
Skill level Professional

Frequently Asked Questions

What does coaxial design do for this speaker?

Coaxial mounting places the midrange and treble driver on the acoustic center of the woofer, eliminating phase complications between drivers and simplifying system tuning. This delivers integrated, phase-coherent sound across the entire frequency range.

Will this fit standard ceiling cavities?

Yes. The baffle measures 366 × 366 mm and requires a 378 × 378 mm ceiling cutout, which aligns with standard commercial cavity dimensions. Installation uses the optional MTC-300BB12 backcan for streamlined rough-in.

What power do I need to run this speaker?

The Control 322C is rated for 400W continuous power handling at 8-ohm impedance, with a peak capacity of 1600W. It integrates into standard professional amplifier chains and supports daisy-chained configurations via its removable locking connector with screw-down terminals.

How does the 90° pattern control help in a large room?

The 90° broadband pattern maintains consistent sound pressure and tonal balance throughout the coverage area, preventing hot spots or dead zones. This is critical for distributed ceiling arrays where even coverage across multiple zones is non-negotiable.

What frequency range does this cover?

The Control 322C spans 48 Hz to 19 kHz, providing full-spectrum reproduction suitable for speech, music, and complex program material in commercial and professional settings.

Do I pay sales tax on this order?

Sales tax is collected only on orders shipped to California; orders shipped to any other US state are not charged sales tax at checkout when you buy direct from our website. Marketplaces collect sales tax as the facilitator in most states, so the same listed price can cost more there. Buyers remain responsible for any use tax their state applies. Free US shipping and 30-day returns are included.
