JBL NCSA2120R-U-US

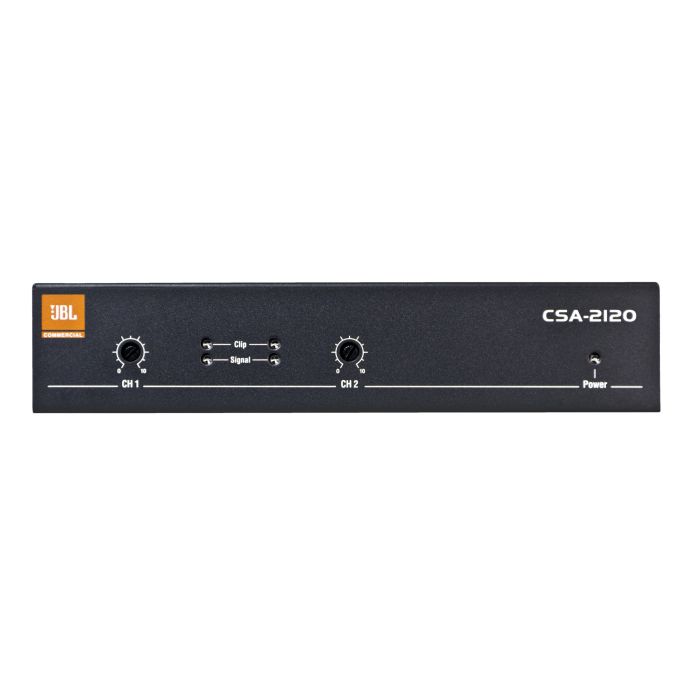

JBL NCSA2120R-U-US Compact Amplifier

The JBL NCSA2120R-U-US is a purpose-built two-channel amplifier engineered for installation and commercial audio applications where space and thermal efficiency are critical constraints. Its compact footprint and convection-cooled design deliver reliable amplification without requiring external cooling infrastructure, making it ideal for ceiling plenum installations and built-in audio systems.

Audio Performance & Power

This amplifier produces 120W @ 4/8 Ohms with low distortion (THD+N <0.5% @ 1kHz), providing clean, controlled power across standard speaker impedances from 2 to 16 Ohms. The analog front-end with simple signal processing and summing RCA inputs per channel allows straightforward integration into existing audio architectures without requiring complex signal routing.

Design & Installation

Measuring just 1.7" H × 8.2" W × 7" D in black, this amplifier fits seamlessly into tight spaces including plenum cavities and compact equipment racks. The UL2043 plenum rating confirms it meets fire safety codes for use in air-handling spaces, while the switch-mode universal power supply and auto-standby mode keep operating power consumption to just 50W during idle periods.

Key Features

• Two-channel amplifier configuration
• 120W output @ 4/8 Ohms (1kHz, THD+N <0.5%)
• Load impedance stable from 2–16 Ohms
• Sensitivity: 1.4Vrms
• Summing RCA inputs for each channel
• Plenum Rated (UL2043) for air-handling spaces
• Convection cooled (no active cooling required)
• Auto-standby mode for energy savings
• Switch-mode universal power supply
• Operating power consumption: 50W
• Compact dimensions: 1.7" H × 8.2" W × 7" D
• Black finish

The NCSA2120R-U-US combines installation-grade reliability, compact dimensions, and straightforward analog connectivity in a package purpose-designed for professional audio integration.
