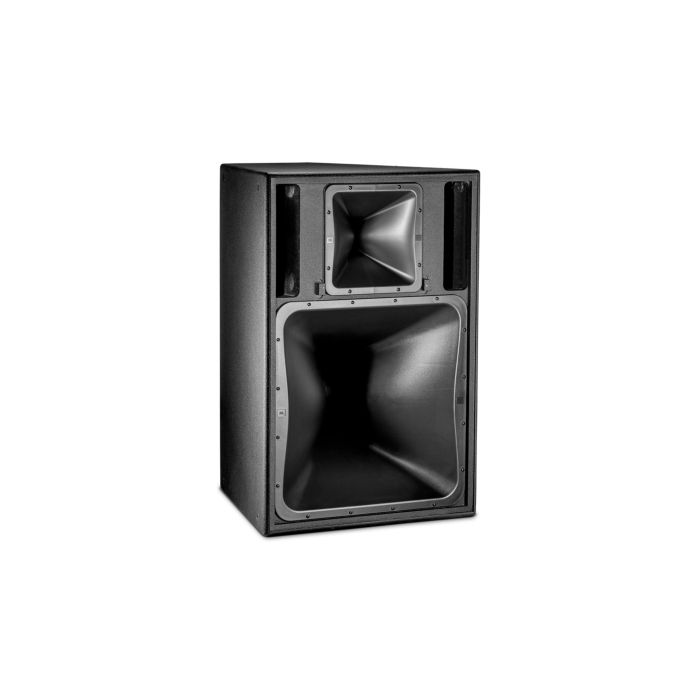

JBL PD6322/95 Dual 12" three-way full-range loudspeaker

JBL PD6322/95 Dual 12" Three-Way Full-Range Loudspeaker

The PD6322/95 is a professional touring and installed sound workhorse that delivers muscular output with precise directionality across its coverage pattern. Its dual 12" low-frequency design paired with mid and high-frequency compression drivers creates a cohesive full-range platform capable of handling demanding live and venue applications without sacrificing clarity.

Acoustic Performance

Extended low-frequency response down to 40 Hz provides solid bass foundation for music and speech, while the 90x50° coverage pattern via dual PT Progressive Transition waveguides ensures even tonal distribution across the listening area. The cabinet operates in either tri-amp or bi-amp (passive mid-high) configuration, offering flexibility in system design and amplifier requirements.

Build & Handling

At 183 lbs, the PD6322/95 is substantial but manageable for transport and rigging in professional environments. Its 991 x 673 x 706 mm footprint fits standard touring racks and venue mounts, while the rotatable waveguides accommodate both vertical and horizontal speaker orientations to match architectural constraints.

Key Features

• Two JBL 2206H 12" Vented Gap Cooled (VGC) low-frequency transducers with 4" voice coils
• CMCD-82H 8" cone midrange compression driver with dual 3" voice coils
• 2432H 1.5" exit compression driver with 3" voice coil for high-frequency reproduction
• Large format neodymium high-frequency driver
• Dual PT Progressive Transition waveguides (90x50° coverage, rotatable)
• 1200W power handling capacity
• Extended low-frequency response to 40 Hz
• Tri-amp or bi-amp (passive mid-high) operation
• Mil-Std 810 environmental rating
• IP-x3 per IEC529 weather resistance
• Dimensions: 991 x 673 x 706 mm (39.0 x 26.5 x 27.8 in) in vertical orientation
• Weight: 183 lbs

The PD6322/95 combines high-output dual 12" woofers, multi-driver midrange and tweeter architecture, and robust weatherproofing into a versatile platform that performs equally well in touring, festival, and permanent installation contexts.
