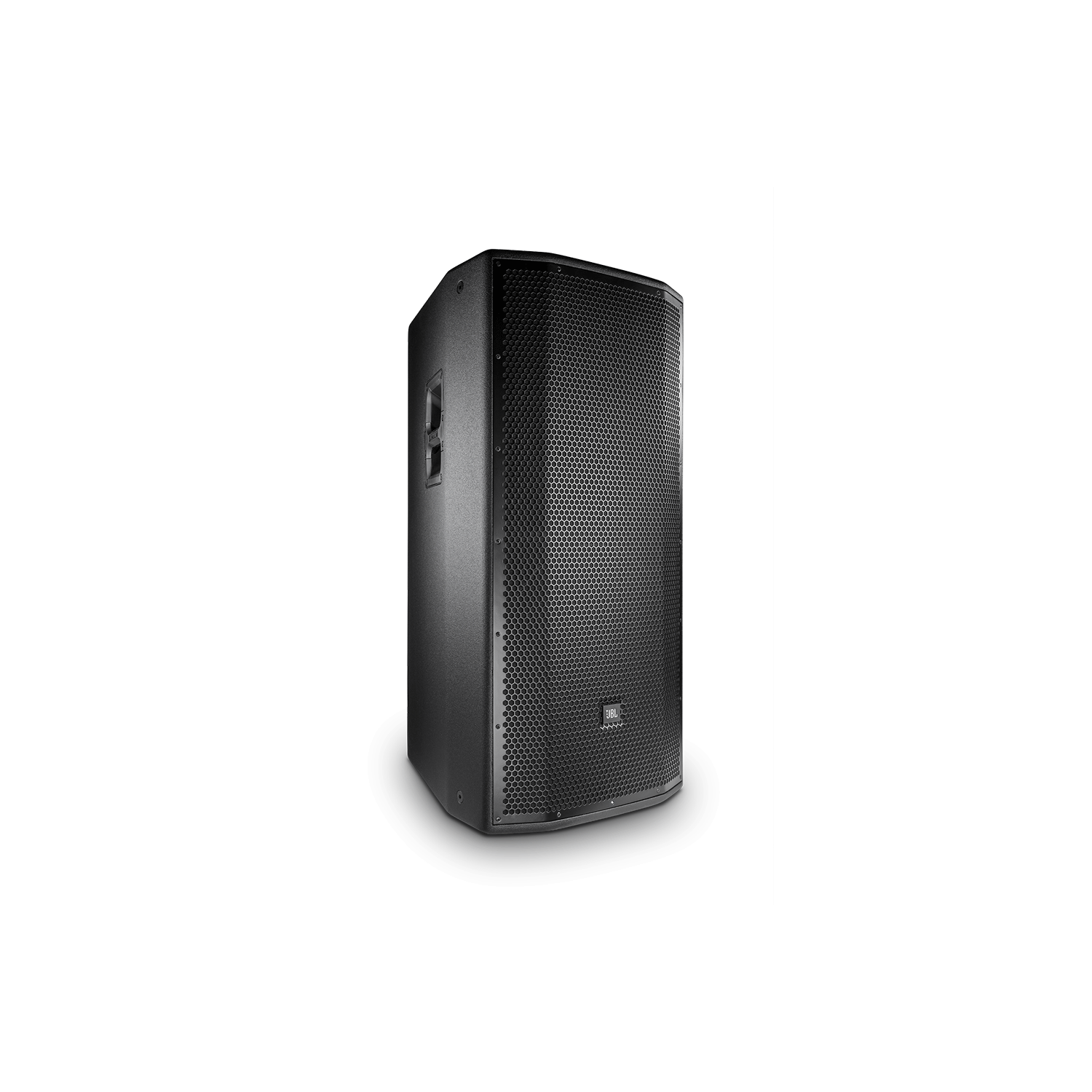

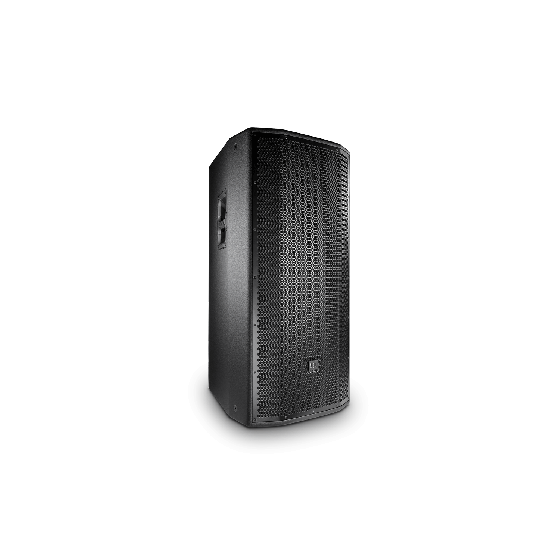

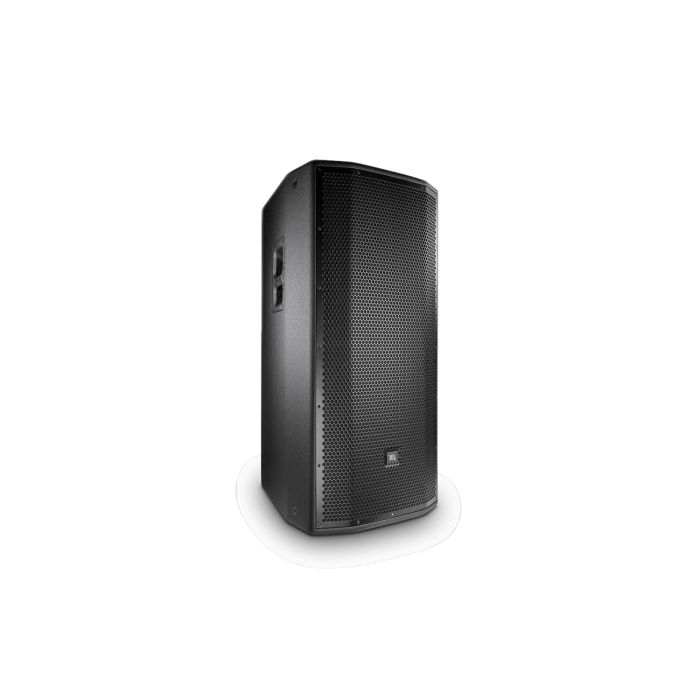

JBL PRX835W 15” Three-Way Full-Range Main System with Wi-Fi
Out of stock
- SKU
- PRX835W
Description
JBL PRX835W 15" Three-Way Full-Range Main System with Wi-Fi
The PRX835W delivers crystal-clear highs, punchy mids, and deep, authoritative lows that respond instantly to every nuance of your performance. The 15-inch woofer gives you the dynamic range and tactile feedback essential for any serious mixing or performance application, while the three-way driver configuration ensures every frequency sits exactly where it belongs. Wi-Fi connectivity and the free PRX Connect mobile app let you control volume, EQ, and delay wirelessly, keeping your setup clean and your workflow uninterrupted.
Audio Performance & Power
A 1500-watt Class-D amplifier drives this system to 138 dB peak SPL and 130 dB continuous SPL, giving you the headroom and punch to cut through any room size. The frequency response of 35 Hz to 20 kHz captures the full spectrum with precision, while crossover points at 580 Hz and 2.1 kHz keep the 15" woofer, 6.5" horn-loaded midrange, and 1.5" compression driver working in perfect cohesion—every note sits exactly where you need it.
Design & Build
Constructed from 25 mm poplar plywood (top and bottom) with 18 mm sides and tongue-and-groove joinery, the cabinet delivers consistent acoustic performance night after night. At 85 lbs with two integrated transport handles and 12 M10 suspension points, the PRX835W loads in and out of the van with ease, while the powder-coated perforated steel grille with acoustical backing survives the grind of weekly gigging and touring.
Key Features
- 15" Differential Drive woofer with 6.5" horn-loaded midrange and 1.5" annular polymer diaphragm compression driver
- 1500-watt Class-D power amplifier (750W × 2 channels)
- 138 dB peak SPL; 130 dB continuous SPL output
- Frequency response: 35 Hz to 20 kHz
- Crossover frequencies at 580 Hz and 2.1 kHz
- Built-in Wi-Fi with PRX Connect app for iOS and Android
- Wireless control over volume, 8-band parametric EQ, and up to 50ms speaker delay
- Two balanced XLR/1/4" combination inputs, two unbalanced RCA inputs, XLR loop-through output
- dbx Type IV limiter circuit for protection
- Dimensions: 36.9" H × 17.5" W × 21.2" D; Weight: 85 lbs
- 12 M10 suspension points with integrated transport handles
- AC power input: 100V–240V ~ 50/60 Hz
The PRX835W combines responsive, articulate reproduction with modern wireless control and road-ready construction—a full-range system built to translate your mix or performance with stunning clarity and punch.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL PRX835W is a 1500-watt three-way main speaker system built for medium to large venues, delivering 138 dB peak SPL with a 15-inch woofer, horn-loaded mids, and compression driver for articulate highs and deep lows that cut through any live setting. Road-tested construction—85 lbs with integrated handles, suspension points, and a durable powder-coated grille—keeps it reliable gig after gig, while built-in Wi-Fi and the PRX Connect app let you dial in volume, EQ, and delay wirelessly from the stage or FOH. Choose this if you need a workhorse main system that translates your mix with crystal clarity and enough headroom to fill a room without coloring the signal.
Frequently Asked Questions
What does the three-way driver configuration do?
The 15-inch woofer handles bass (down to 35 Hz), the 6.5-inch horn-loaded midrange manages the critical midfield, and the 1.5-inch compression driver delivers precise highs, with crossover points at 580 Hz and 2.1 kHz ensuring each driver operates in its optimal range for seamless frequency blending.
Can I control the speaker wirelessly?
Yes. Built-in Wi-Fi and the free PRX Connect app (iOS and Android) let you adjust volume, 8-band parametric EQ, and up to 50 ms speaker delay from your phone or tablet, eliminating cable clutter and letting you tune on the fly.
Is this speaker portable for touring?
At 85 lbs with two integrated transport handles, 12 M10 suspension points, and a durable powder-coated perforated steel grille, the PRX835W is designed for regular venue and festival work; the cabinet uses 25 mm poplar plywood with tongue-and-groove joinery for structural integrity under repeated loading.
What kind of inputs does it have?
The PRX835W features two balanced XLR/1/4-inch combination inputs, two unbalanced RCA inputs, and an XLR loop-through output, giving you flexibility for mixing console, interface, or line-level audio sources.
How loud does it get?
The 1500-watt Class-D amplifier (750W per channel) drives 138 dB peak SPL and 130 dB continuous SPL, with dbx Type IV limiter protection to prevent clipping and driver damage during sustained high-output performance.
