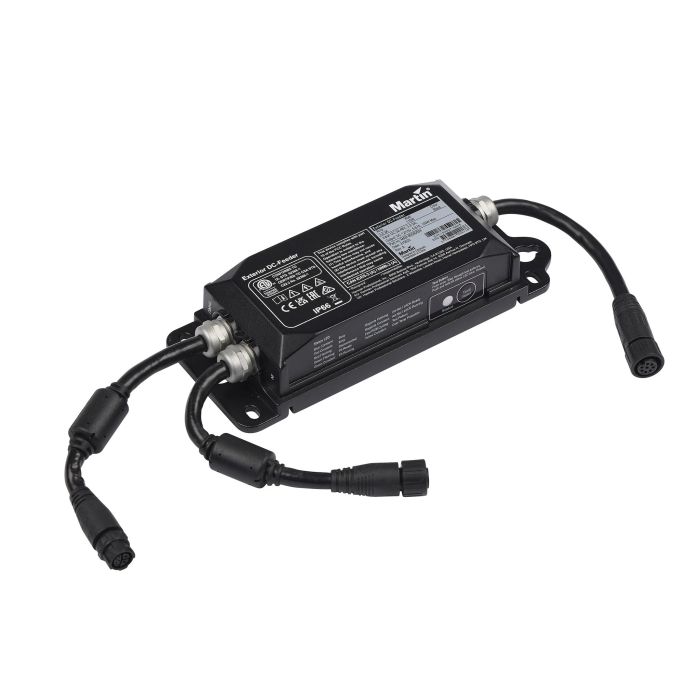

Martin Exterior DC-Feeder
Description
Martin Exterior DC-Feeder
The Martin Exterior DC-Feeder is a robust multi-protocol driver box built for outdoor rigs and touring operations. Engineered to handle demanding stage and venue environments while delivering dependable power distribution, this feeder provides professional-grade performance for the Exterior Dot-1/4/9 Pro series lighting fixtures.
Power Management & Efficiency
Accepts 48 VDC +/- 4% input from industry-standard power supplies and outputs a regulated 15 VDC to connected fixtures. Power consumption scales intelligently: 110 W at full load, dropping to 5.0 W idle and 2.2 W hibernation, making this feeder economical even during extended standby periods.
Environmental Durability & Protection
Rated IP66 for complete dust and water ingress protection, the feeder operates reliably across extreme temperature ranges from -30° C to +55° C (-22° F to 131° F). Convection cooling eliminates fan noise, while 4KV surge protection safeguards connected equipment from electrical transients common in outdoor installations.
Key Features
- Nominal input voltage: 48 VDC +/- 4%
- Output voltage: 15 VDC
- Maximum power consumption: 110 W at full load
- Idle power consumption: 5.0 W
- Hibernation power consumption: 2.2 W
- Surge protection: 4KV
- IP66 environmental rating
- Operating temperature range: -30° C to +55° C
- Convection cooling (fanless design)
- Multi-protocol driver for Exterior Dot-1/4/9 Pro series
- Compatible with Martin P3 PowerPort 2000, P3 PowerPort 500 IP Install, P3 PowerPort 500 IP Rental, Martin DCE PSU 240 IP, and generic 48 VDC PSU
The Martin Exterior DC-Feeder combines compact architecture with industrial-grade protection, making it essential infrastructure for permanent outdoor lighting rigs and touring operations.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin Exterior DC-Feeder is a multi-protocol driver box that distributes regulated 15 VDC power to Martin Exterior Dot-1/4/9 Pro series lighting fixtures in outdoor and touring environments. Built with IP66 weatherproofing, fanless convection cooling, and 4KV surge protection, it handles extreme temperatures from -30°C to +55°C without compromise. Choose this feeder for reliable, efficient power distribution on outdoor stages and permanent installations where durability and low idle draw (5.0 W) keep operating costs down.
Frequently Asked Questions
What fixtures does the Martin Exterior DC-Feeder control?
The feeder is a multi-protocol driver designed specifically for Martin Exterior Dot-1/4/9 Pro series lighting fixtures. It outputs regulated 15 VDC to connected fixtures via 48 VDC input from compatible power supplies.
What power supplies are compatible with this feeder?
The feeder accepts 48 VDC +/- 4% input and is compatible with Martin P3 PowerPort 2000, P3 PowerPort 500 IP Install, P3 PowerPort 500 IP Rental, Martin DCE PSU 240 IP, and generic 48 VDC PSUs.
Is the Martin Exterior DC-Feeder suitable for outdoor use?
Yes—it is rated IP66 for complete dust and water ingress protection, features fanless convection cooling, and operates reliably across extreme temperatures from -30°C to +55°C. It also includes 4KV surge protection against electrical transients common in outdoor installations.
How much power does the feeder consume during idle or standby?
Power consumption is 110 W at full load, 5.0 W during idle, and 2.2 W in hibernation mode, making it economical during extended standby periods.
