Martin Exterior Image Projection 500 Narrow 10 Degree
Share
Out of stock
- SKU
- 90506515
Description

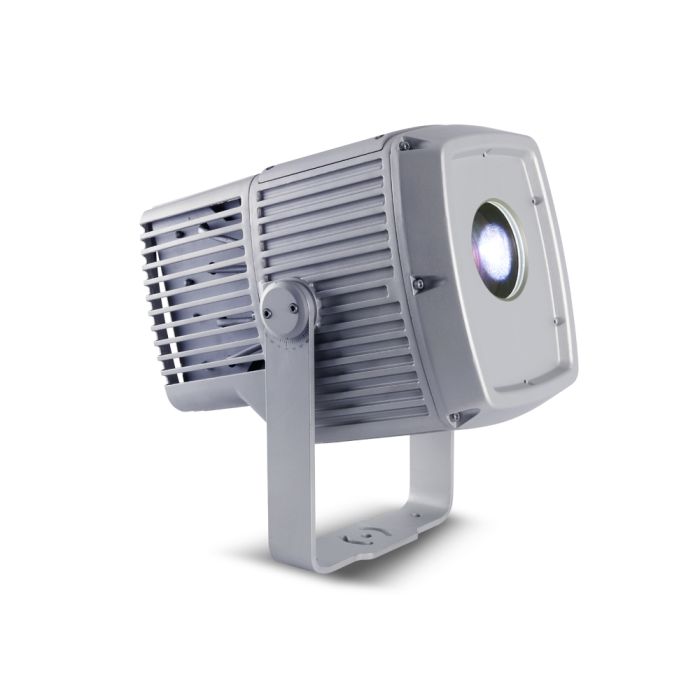

Martin Exterior Projection 500 Narrow
The Martin Exterior Projection 500 Narrow delivers precise, high-contrast image projection in a compact, fully weatherized housing designed for demanding outdoor installations. Its narrow 12° beam angle makes it ideal for long-range projection on building facades, signage, and architectural features where crisp detail and bright output are essential. Built for reliability in harsh environments, this fixture combines advanced LED technology with rugged construction to minimize maintenance while maximizing creative control.
Optical Performance & Projection Capability
The 230 W white LED engine delivers flat-field, high-contrast projection with a 12° cut-off angle optimized for narrow, focused beam work. Maximum image diameter of 23 mm (gobo size 30.0 mm) ensures crisp detail projection, while variable motorized focus ranging from 3 meters to infinity provides flexibility across close-range and long-range applications. Color temperature of 8300K and CRI 72 produce bright, clean whites suitable for architectural and logo work.
Durability & Environmental Design
Cast aluminum housing with hard anodized, metallic grey lacquered finish combined with IP66 ingress protection, IK08 impact resistance, and C5-M corrosion resistance ensures trouble-free operation in coastal and demanding outdoor environments. Operating ambient range of -30° C to 45° C accommodates extreme seasonal conditions, while convection cooling with internal forced air keeps surface temperatures at 85° C maximum, enabling safe installation near sensitive materials.
Key Features
- 230 W white LED engine with 72 CRI and 8300K color temperature
- 12° narrow beam angle (cut-off angle) for precision long-range projection
- Motorized variable focus from 3 meters to infinity
- 8-color wheel for dynamic color mixing and effects
- 6-gobo wheel with rotation, indexing, and animation capability
- 2-prism wheel with motorized frost filter for layered effects
- IP66 ingress protection and IK08 impact resistance for outdoor durability
- C5-M corrosion resistance (marine-grade) for coastal and aggressive environments
- DMX/RDM control with 13 DMX channels and OLED display panel
- Auto-ranging power supply (100–240/277 V, 50/60 Hz) with typical draw of 310 W at 230V
- Cast aluminum housing with anti-reflection coated tempered glass front
- Compact dimensions: 415 × 293 × 444 mm; Weight: 17.5 kg
The Martin Exterior Projection 500 Narrow combines professional-grade optics, fully integrated dynamic effects, and marine-grade durability in a compact format that delivers crisp, high-impact projection for architectural and outdoor lighting installations.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin Exterior Projection 500 Narrow is a rugged, weatherized LED projection fixture built for long-range architectural and facade lighting with a tight 12° beam angle and motorized focus from 3 meters to infinity. Designed for touring productions, outdoor venues, and permanent installations in harsh coastal and seasonal environments, it pairs a 230 W white LED engine with 8-color and 6-gobo wheels for dynamic visual control—all housed in a compact, marine-grade aluminum body rated IP66 and IK08. Choose this if you need reliable, maintenance-minimal projection gear that holds crisp detail and bright output in rain, salt spray, extreme temperatures, and demanding road conditions.
Frequently Asked Questions
What beam angle and throw distance does this fixture handle?
The Martin Exterior Projection 500 Narrow features a narrow 12° beam angle optimized for long-range, precision projection on building facades and architectural features. Motorized variable focus ranges from 3 meters to infinity, allowing flexibility across close-range and extended long-throw applications.
How durable is this fixture in extreme weather and coastal environments?
Built with cast aluminum housing, hard anodized metallic grey lacquered finish, and C5-M marine-grade corrosion resistance, this fixture withstands coastal salt spray, rain, and aggressive outdoor conditions. It carries IP66 ingress protection, IK08 impact resistance, and operates reliably in ambient temperatures from -30°C to 45°C.
What effects and color control options are included?
The fixture includes an 8-color wheel for dynamic color mixing, a 6-gobo wheel with rotation, indexing, and animation, and a 2-prism wheel with motorized frost filter for layered effects. All are controllable via DMX/RDM with a 13-channel protocol and onboard OLED display panel.
What is the light output and color quality?
The 230 W white LED engine delivers 8300K color temperature with 72 CRI, producing bright, clean whites ideal for architectural and logo projection work. Maximum image diameter is 23 mm (gobo size 30.0 mm) for crisp, high-contrast detail.
What are the physical dimensions and power requirements?
Compact dimensions are 415 × 293 × 444 mm with a weight of 17.5 kg. The auto-ranging power supply accepts 100–240/277 V at 50/60 Hz with typical power draw of 310 W at 230V; convection cooling keeps the housing surface at a safe 85°C maximum.
