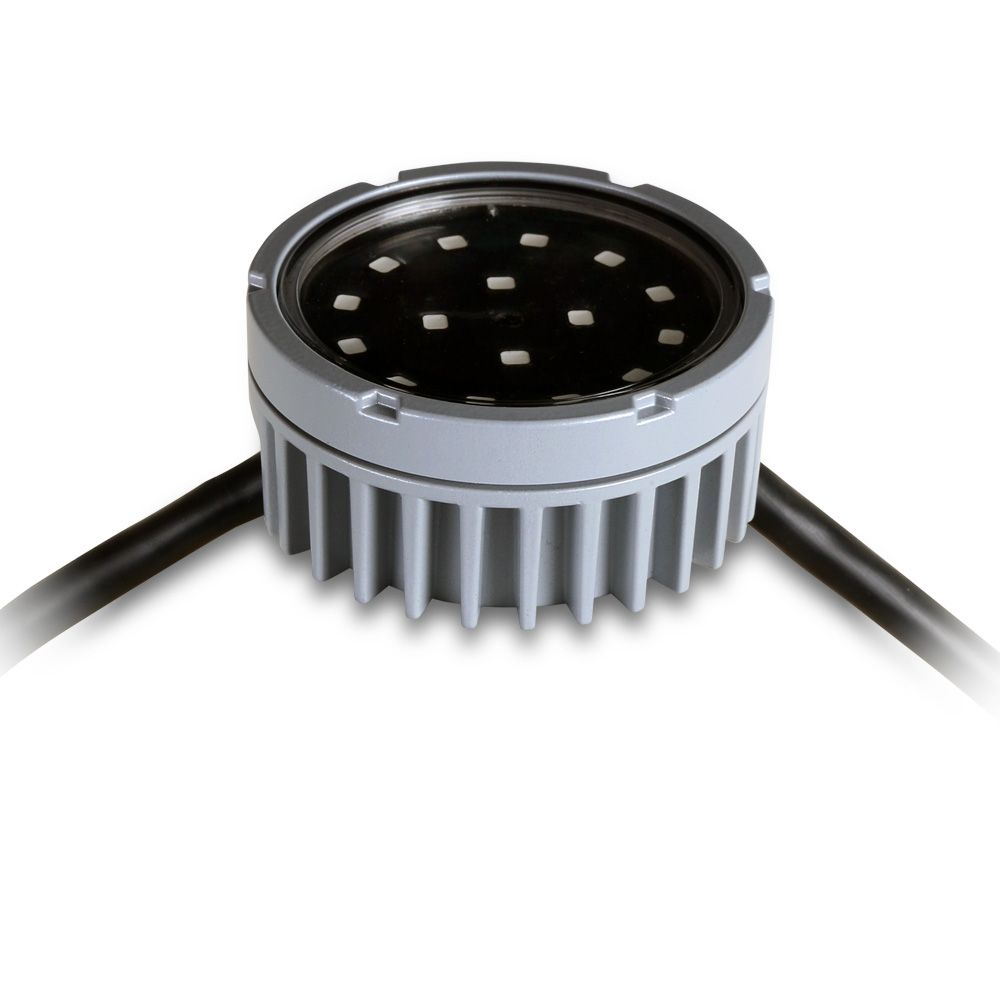

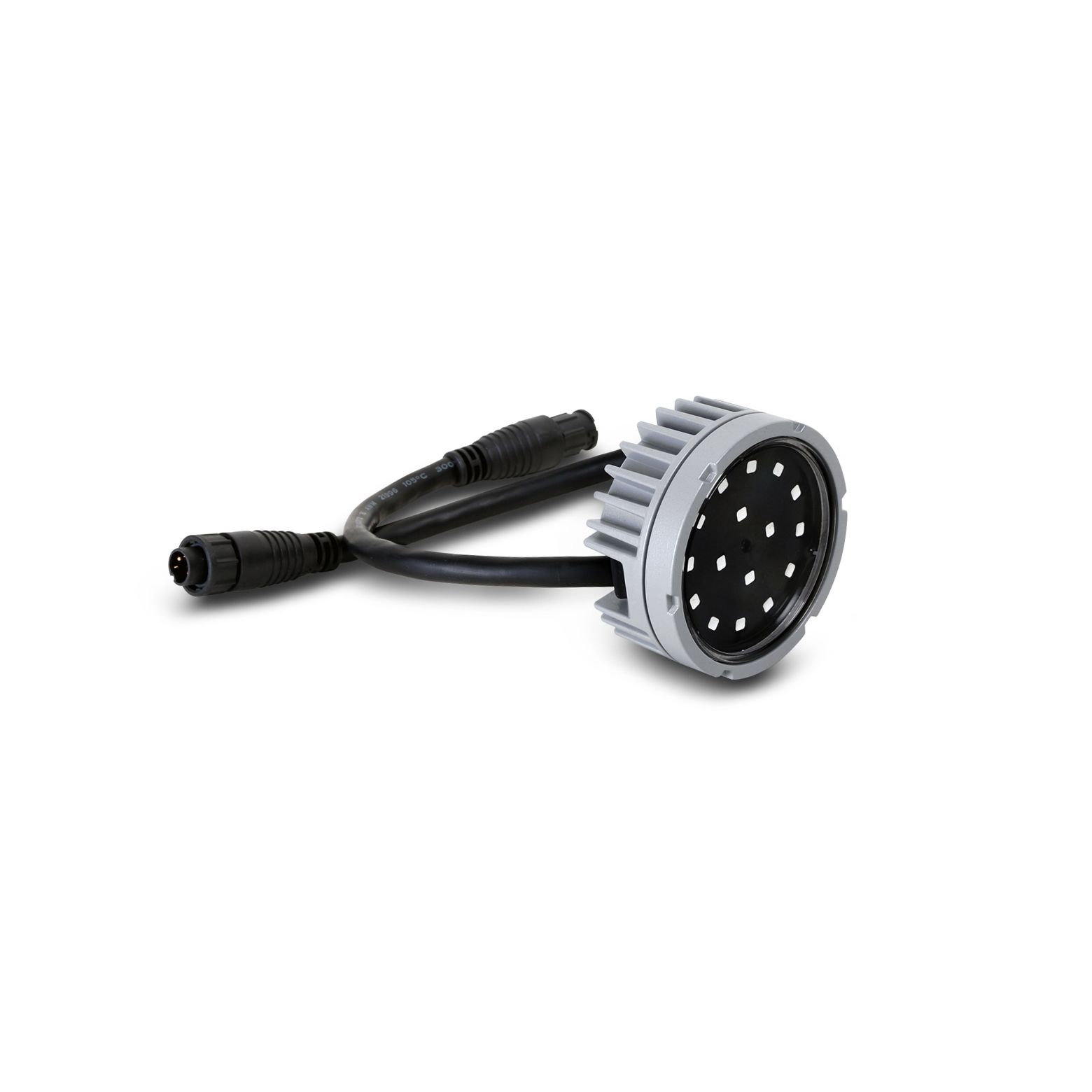

Martin Exterior Single Dot Cool White Clear Front
Out of stock
- SKU
- 90357688HU
Description
Martin Exterior Single Dot Cool White Clear Front
The Martin Exterior Dot-HP CW is a workhorse fixture built for the demands of touring rigs and permanent venue installations. Its IP66 housing delivers the durability you need in a reliable, compact package that handles harsh weather and environmental conditions without compromise. Whether building extensive fixture arrays, variable pixel-pitch designs, or anchoring your stage lighting rig, this single cool white dot performs night after night with consistent reliability.
Light Output & Color Performance
Operating at 6700K Cool White, this fixture punches 160 lumens with 62 candela in calibrated mode, delivering consistent brightness across a 103° x 103° viewing angle with the clear front design. The Full Gamut Color Calibration ensures your lighting stays true and uniform across large installations—critical for maintaining visual impact in live venues and on stage night after night.
Power & Control
Running on 48 VDC nominal input with typical power consumption of 5 watts at full intensity, the fixture integrates cleanly into extended cable runs for touring setups and large-scale permanent rigs. Control via Martin P3 System Controller or standard RDM/DMX protocols gives you the flexibility to execute complex, video-mapped show designs or straightforward DMX-driven lighting scripts with equal ease.
Key Features
- Cool white color temperature: 6700K ±300K
- Luminous output: 160 lumens, 62 candela (calibrated mode, clear front)
- Viewing angle: 103° x 103° (half-peak)
- Dot pitch: 72 mm – 500 mm center-to-center
- IP66-rated aluminum housing for permanent outdoor use
- Electrical input: 48 VDC ±4%
- Power consumption: 5 watts at full white intensity
- LED lifetime: 50,000+ hours to 70% brightness (Seoul LEDs)
- Operating temperature: –20°C to 55°C (–4°F to 131°F)
- Control: Martin P3 System Controller or RDM/DMX compatible
- Surge protection: 4 kV
- 16-bit color resolution (48-bit per pixel)
The Martin Exterior Dot-HP CW combines time-tested durability, efficient power draw, and seamless control integration to anchor your touring or permanent venue lighting rig with confidence.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin Exterior Single Dot Cool White is a rugged, IP66-rated LED fixture designed for permanent outdoor architectural lighting, media facades, and large-venue perimeter installations. Built for live-sound and lighting crews running major events or permanent venue rigs, it delivers 160 lumens of consistent 6700K cool white light at just 5 watts per unit, making it ideal for extensive pixel-mapped displays and building-scale lighting designs. Its DMX/RDM control and modular 72–500 mm dot-pitch flexibility let you scale from small accent runs to full architectural facades without breaking your budget or power budget.
Frequently Asked Questions
What does IP66 rating mean for outdoor use?
IP66 means the fixture is completely dust-tight and can withstand high-pressure water jets from any direction, making it suitable for permanent outdoor installations in rain, snow, and harsh weather. The aluminum housing is engineered to survive extended exposure without degradation.
How is this fixture controlled, and is it compatible with standard lighting rigs?
Control is via Martin P3 System Controller or standard RDM/DMX protocols, so it integrates seamlessly into existing venue lighting networks and media-server-driven installations. DMX compatibility means you can mix and match with other standard lighting fixtures.
What is the viewing angle and how many fixtures do I need for a large installation?
The viewing angle is 103° x 103° at half-peak brightness, and you can scale the dot pitch from 72 mm to 500 mm center-to-center depending on your distance and desired pixel density. Start with fewer fixtures for distant viewing or increase density for close-range, high-definition displays.
How much power does each fixture draw, and can I run many on one circuit?
Each fixture draws only 5 watts at full intensity on 48 VDC input, allowing extensive cable runs and large fixture counts on a single power supply without excessive current draw. This efficiency is critical for scaling architectural and venue installations.
What is the expected lifespan of the LEDs in this fixture?
The Seoul LEDs are rated for 50,000+ hours to 70% brightness, which translates to several years of continuous operation or many years of typical event and venue use before noticeable dimming occurs.
