Martin Exterior Single Dot Cool White TIR Lens

Martin Exterior Single Dot Cool White TIR Lens

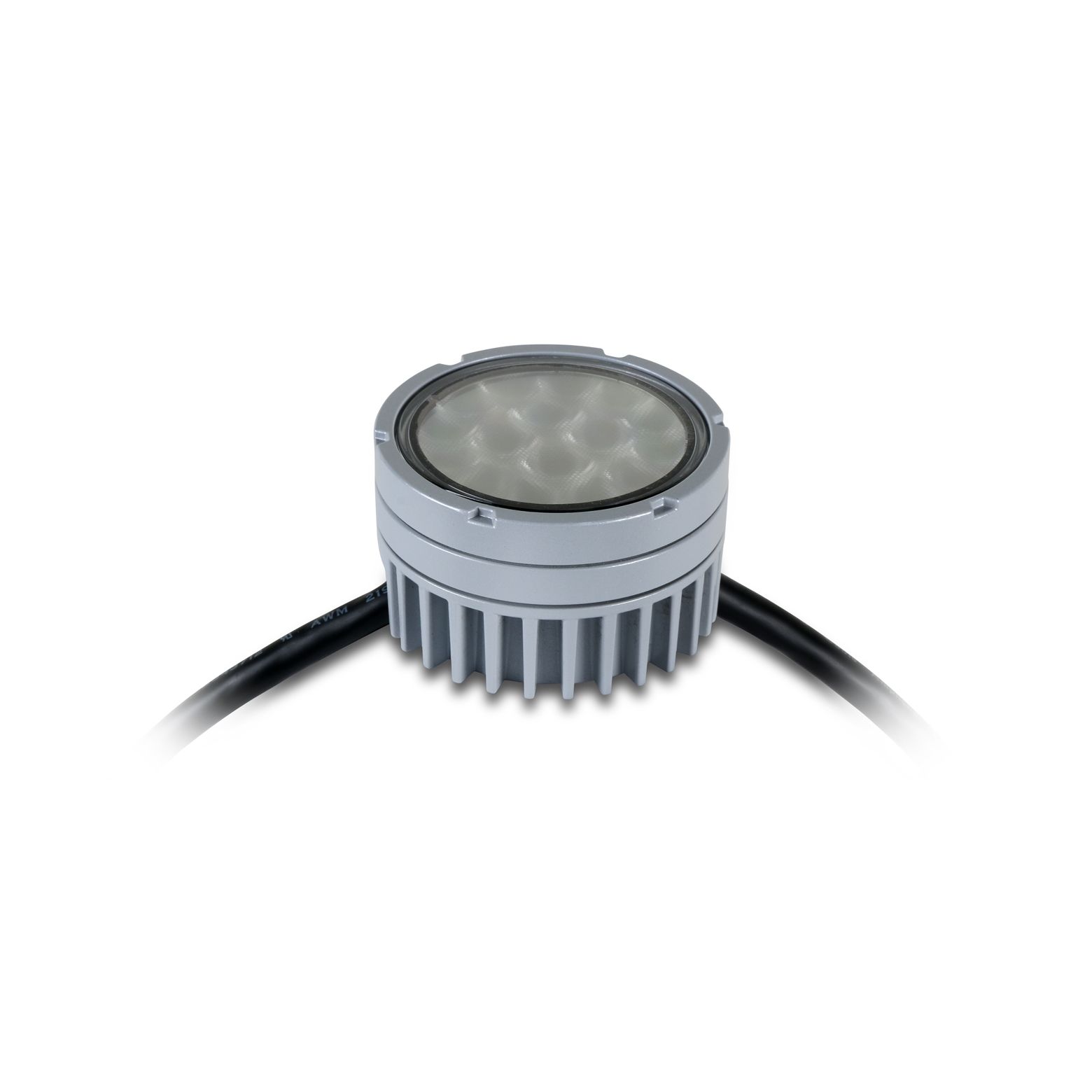

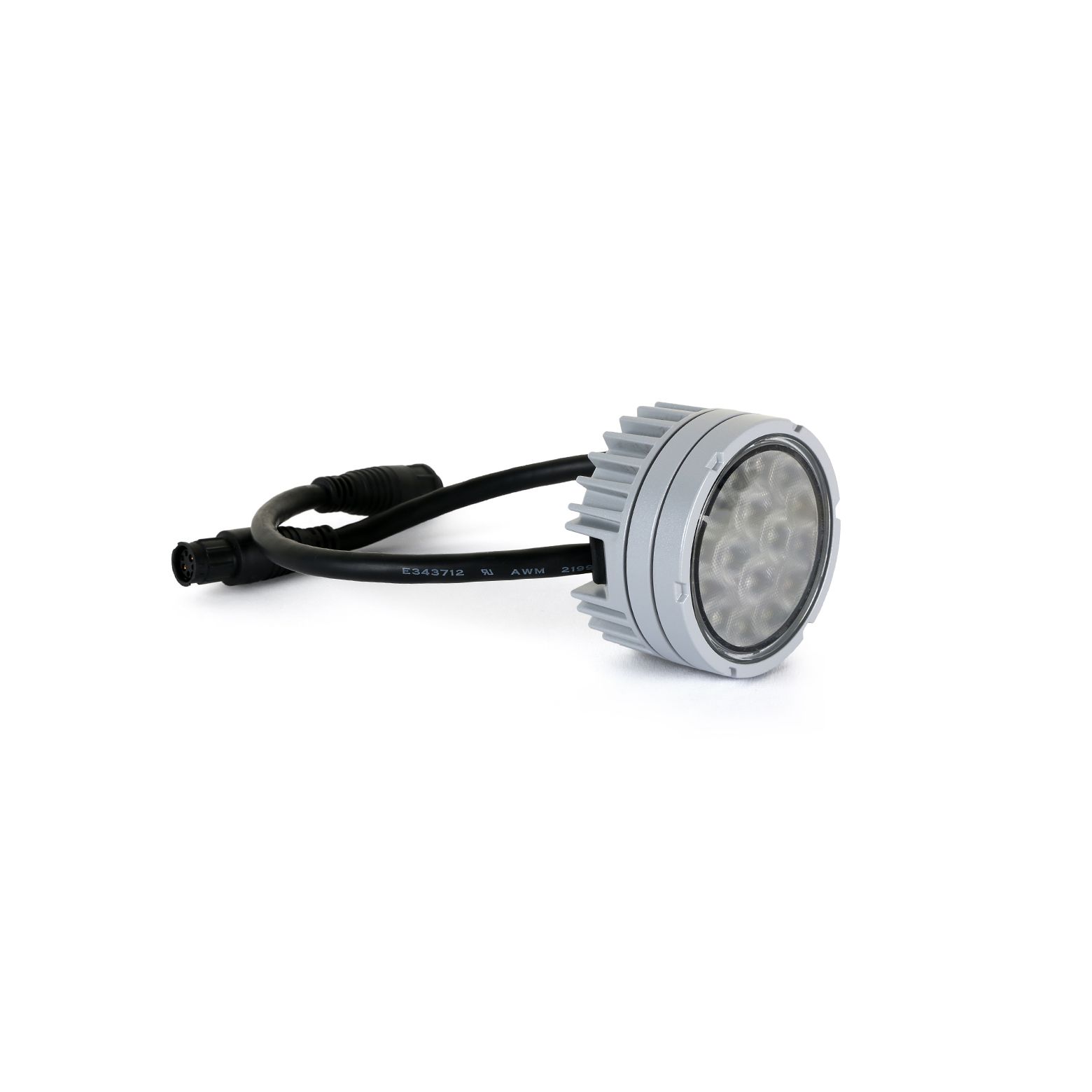

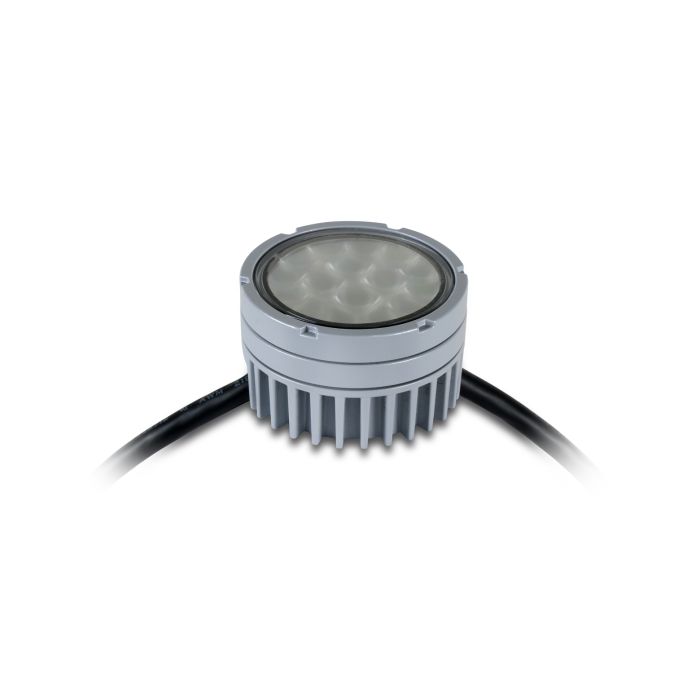

The Martin Exterior Dot-HP Cool White Directional delivers intense, focused illumination in a compact form factor built for permanent outdoor installations. Its TIR lens design produces a tight 22° × 22° viewing angle, making it ideal for long-distance visibility on large building facades and perimeter lighting applications where brightness and precision matter. The rugged IP66-rated housing withstands harsh environmental conditions without compromising optical performance.

Optical Performance & Output

This fixture generates 260 lumens (non-calibrated mode) or 160 lumens (calibrated mode) with a color temperature of 6700K Cool White and directional output of 82 cd and 62 cd respectively. The TIR lens concentrates light into a tight beam pattern, delivering exceptional brightness at distance while minimizing spill—essential for large-scale media facades and architectural lighting where precision and intensity are critical.

Build & Control Integration

Constructed to C5-M corrosion resistance standards for very high corrosivity environments, this fixture handles coastal and industrial installations without degradation. Control is straightforward via RDM/DMX compatibility or the Martin P3 System Controller family, allowing seamless integration into larger video display systems or standalone setups with clean cable runs and easy addressing.

Key Features

• Cool White color temperature: 6700K±300K
• TIR lens with 22° × 22° (half-peak) viewing angle
• Output: 260 lumens (non-calibrated) / 160 lumens (calibrated mode)
• Candela output: 82 cd (non-calibrated) / 62 cd (calibrated)
• LED lifespan: 50,000 hours to >70% luminous output
• Power consumption: 7W at full intensity
• Operating temperature range: -20°C to +55°C
• RDM/DMX control and P3 System Controller compatibility
• IP66-rated rugged housing for permanent outdoor use
• C5-M corrosion resistance for high-salinity and industrial environments
• 16-bit color resolution per channel (48-bit per pixel)
• Heat dissipation: 20 BTU/hr

The Exterior Dot-HP Cool White combines high-intensity output, environmental durability, and flexible control architecture to deliver reliable long-distance illumination for demanding architectural and large-venue applications.
