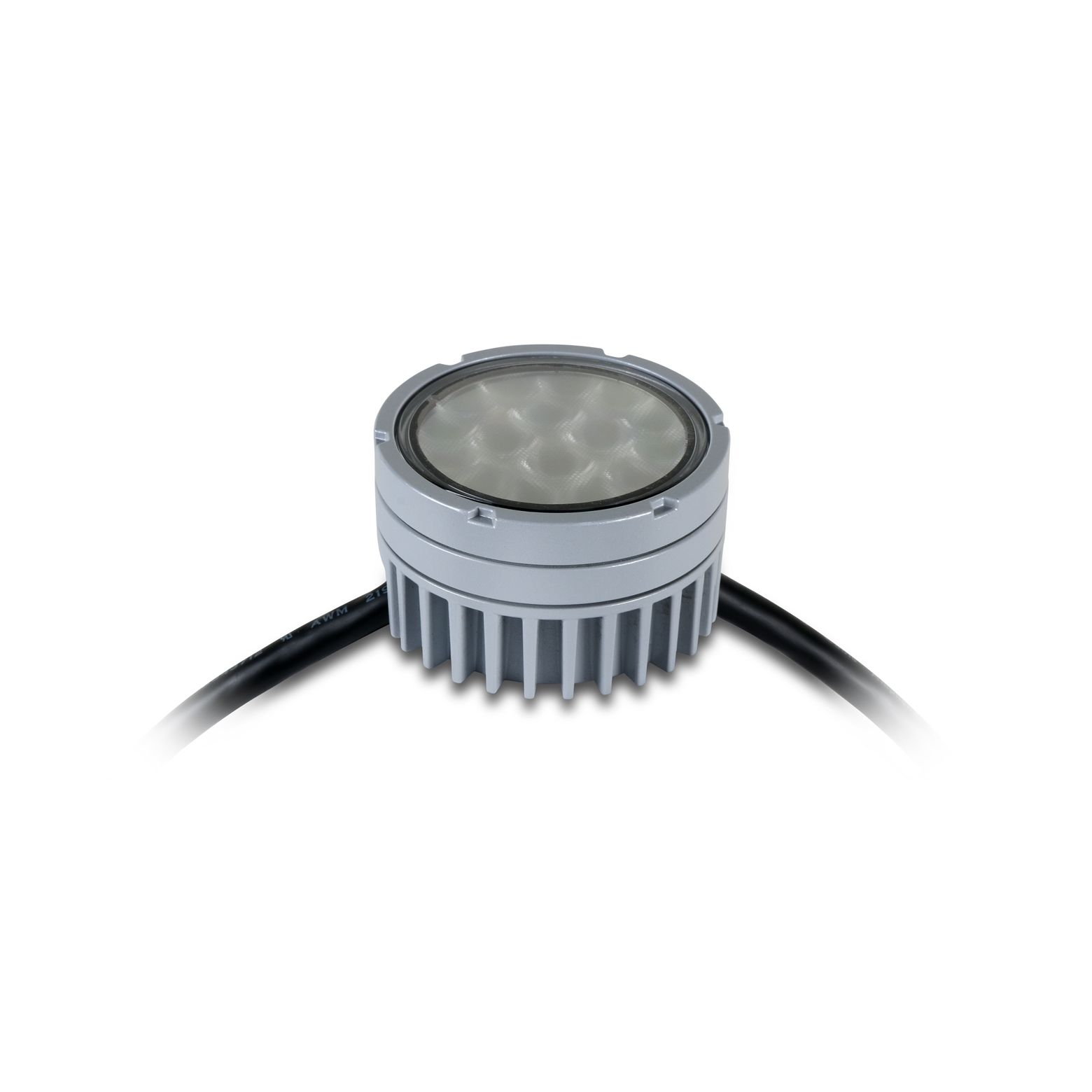

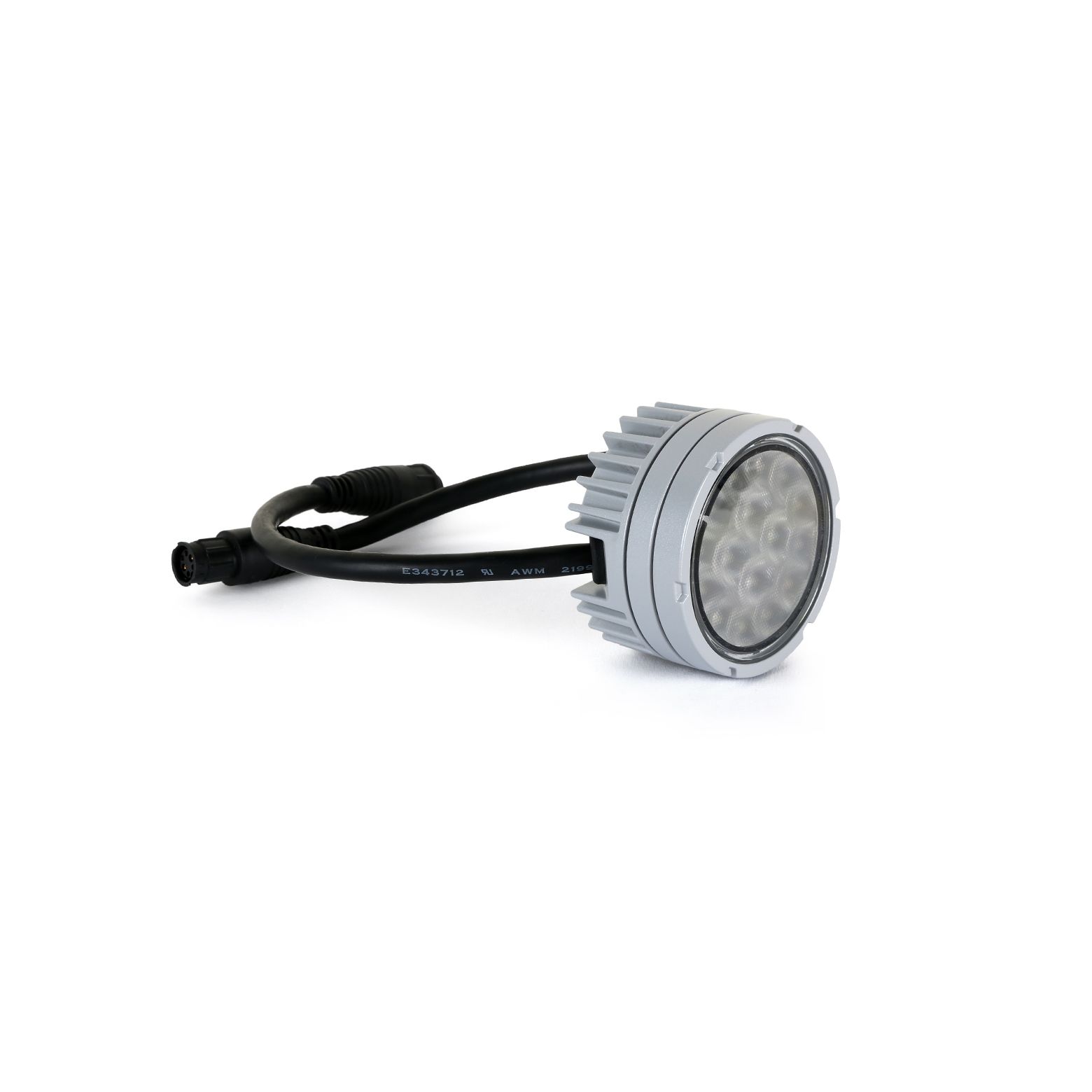

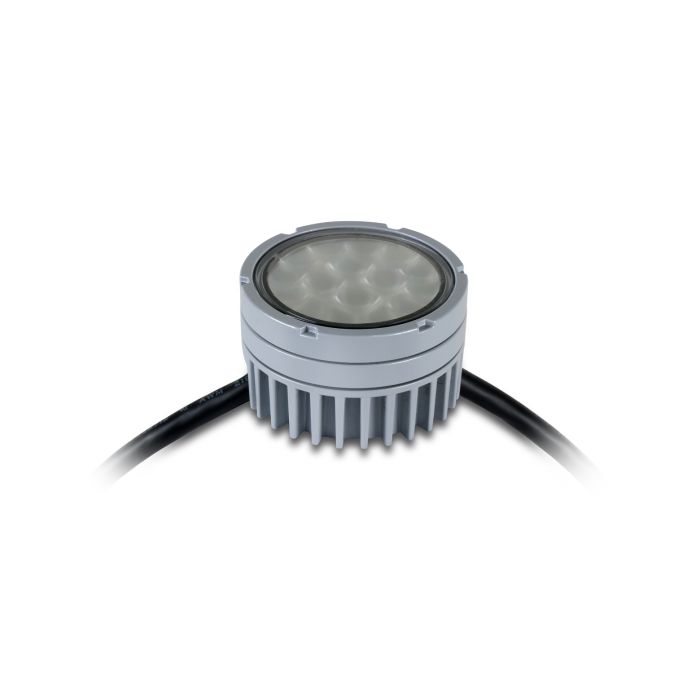

Martin Exterior Single Dot RGB TIR Lens

Martin Exterior Dot-HP RGB with Directional Front (TIR Lens)

The Exterior Dot-HP RGB delivers high-intensity output in a compact, rugged form factor built for permanent outdoor installations on large structures and venue facades. Its IP66 aluminum housing withstands demanding environmental conditions while the directional TIR lens concentrates light output for long-distance visibility and clean architectural integration. Driven by Martin P3 System Controller or DMX protocol, this fixture enables flexible pixel-based designs across variable fixture runs without complex wiring.

Optical Performance & Output

The TIR lens optic produces a tight 22° × 22° viewing angle optimized for distant visibility on building facades and large installations. Calibrated output reaches 72 lumens and 270 candela, while uncalibrated mode delivers 96 lumens and 360 candela, providing creative flexibility for different design requirements and viewing distances.

Build & Environmental Rating

Constructed from aluminum housing with IP66 protection, the Exterior Dot-HP resists moisture, dust, and UV exposure for reliable long-term outdoor deployment. The rugged design supports seamless long cable runs across multiple fixtures, simplifying installation on expansive architectural surfaces while maintaining signal integrity.

Key Features

• Osram LED with 50,000-hour minimum lifetime to >70% luminous output
• Directional Front TIR Lens: 22° × 22° half-peak viewing angle
• Calibrated output: 72 lumens, 270 cd at 5 W full intensity
• Uncalibrated output: 96 lumens, 360 cd at 7 W full intensity
• RGB color mixing for creative video and facade applications
• Control resolution: 16-bit (P3) or 8-bit (DMX)
• DMX channels: 3 or 10 channel modes
• IP66 aluminum construction for permanent outdoor installations
• Power supply compatibility: Martin P3 PowerPort 1500, P3 PowerPort 1000 IP, IP66 PSU, or generic 48 VDC
• Heat dissipation: 20 BTU/hr efficient thermal management
• Martin P3 System Controller compatible for centralized video playback and setup
• RDM/DMX compatible for smaller networked installations

The Exterior Dot-HP RGB combines architectural durability with calibrated optical precision, making it a dependable choice for large-scale building and venue lighting projects requiring long cable runs and video-synchronized control.
