What does the pixel control system do, and how is it different from a standard moving light?

The MAC Aura PXL SIP features 19 individually controlled pixels in the main beam and 141 pixels in the Aura backlight, allowing you to create graphics, chases, and layered color effects across the fixture itself—something conventional LED or beam fixtures cannot do. Each pixel can be addressed independently via DMX, RDM, or video protocol, enabling real-time animation and content mapping.

What venues and throw distances is this fixture suited for?

With 940,000 candela intensity and a 6° to 59° motorized zoom, the MAC Aura PXL SIP excels at mid-to-long throws in theaters, concert tours, and larger venues. Its compact footprint makes it ideal for tight rigging spaces where you need powerful output without a large form factor.

What control protocols and systems does it support?

The fixture supports DMX, RDM, Art-Net, sACN, and Martin P3 video protocol, integrating seamlessly into modern lighting control ecosystems and enabling direct video content mapping when using compatible controllers.

How bright is it, and what is the power consumption?

It delivers 10,500 lumens of RGBW output with 25.4 lumens-per-watt efficacy and draws 560 W of power, making it efficient for venues concerned with electrical load and cooling.

Do I pay sales tax on this order?

Sales tax is collected only on orders shipped to California; orders shipped to any other US state are not charged sales tax at checkout when you buy direct from our website. Marketplaces collect sales tax as the facilitator in most states, so the same listed price can cost more there. Buyers remain responsible for any use tax their state applies. Free US shipping and 30-day returns are included.

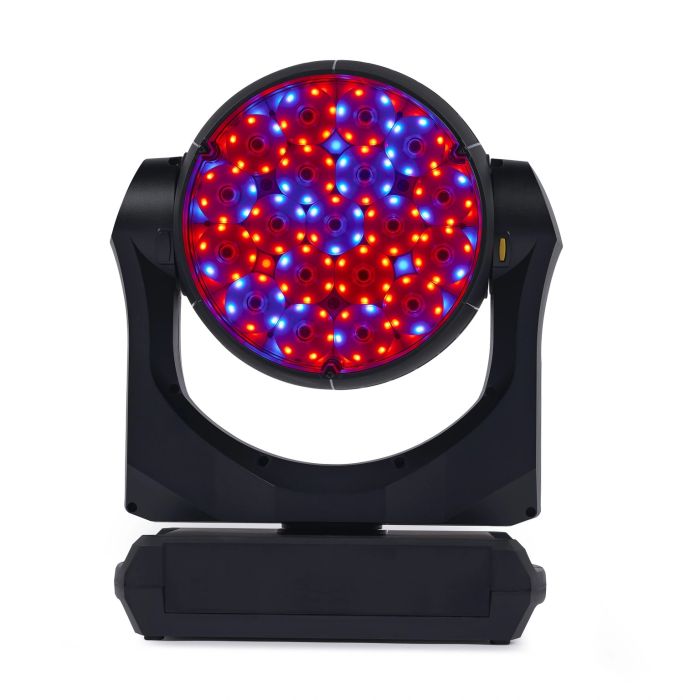

Martin MAC Aura PXL SIP

The MAC Aura PXL SIP is a compact yet powerful LED moving light designed for venues and productions that demand precise pixel control with punchy output in a tight footprint. Its thoughtfully engineered form factor balances portability with professional-grade light intensity, making it equally at home on a small theater rig or as a key player in a larger show environment.

Optical Performance & Light Output

This fixture delivers 10,500 lumens of RGBW output with an exceptional high narrow intensity of 940,000 candela, ensuring crisp, penetrating light across mid-to-long throws. The 6° to 59° motorized zoom range provides flexibility from tight spotlighting to wider wash coverage without repositioning the unit.

Pixel Control & Connectivity

The MAC Aura PXL SIP features 19 individually controlled main beam pixels and 141 Aura backlight pixels, enabling intricate graphics, chases, and dynamic effects impossible with conventional fixtures. Full compatibility with DMX, RDM, Art-Net, sACN, and Martin P3 video protocol integrates seamlessly into any modern lighting control ecosystem, letting you sync the rig with confidence across wired and wireless network setups.

Key Features

10,500 lumens RGBW light output with 940,000 cd high narrow intensity
19 individually controlled main beam pixels for precision graphics
141 Aura backlight pixels for layered color and effect options
6° to 59° motorized zoom range
DMX, RDM, Art-Net, sACN, and Martin P3 video protocol support
560 W power consumption with 25.4 lm/W efficacy
High-impact flame-retardant thermoplastic construction with IP20 rating
Width: 385–410 mm; Height: 489–544 mm; Depth: 216 mm
RGBW color mixing system

The MAC Aura PXL SIP combines powerful output, intelligent pixel control, and compact design to deliver reliable results on stages where space and visual impact both matter, backed by solid build quality for road use.

Condition	New
Country of Manufacture	Hungary

Best suited for	Live Performance, Stage Lighting, Theater Production, Concert Touring
Tonal character	Punchy output, high narrow intensity, crisp penetrating light, compact footprint
Less specialized for	Home Practice, Studio Recording (it will do it; instruments voiced for that style do it more easily)
Skill level	Intermediate / Advanced / Professional
