Martin P3-050 LED Video System Controller
Description
Martin P3-050 LED Video System Controller
The P3-050 is a compact, rackmount video processor built to drive large-scale LED systems with minimal footprint and maximum integration capability. This controller sits at the heart of Martin's Creative LED ecosystem, handling Full HD video input alongside DMX and Art-Net control in a single 1U chassis. Its straightforward architecture and built-in GUI make complex video-to-pixel mapping accessible without requiring extensive setup overhead, letting you focus on the creative work instead of wrestling with configuration.
Video Processing & System Architecture
This controller processes Full HD video input via DVI-D connectivity and scales it across systems up to 100,000 pixels distributed to 2,000 fixtures. The unit maintains 16-bit per-color processing depth (48 bits per pixel) and supports all standard resolutions up to 1920×1080 at 60fps with 8-bit color depth in RGB 4:4:4 sampling. System latency sits at just 2 frames with progressive scan only, ensuring tight synchronization between video content and fixture response—critical for live performances where timing between elements makes or breaks the visual impact.
Connectivity & Control Integration

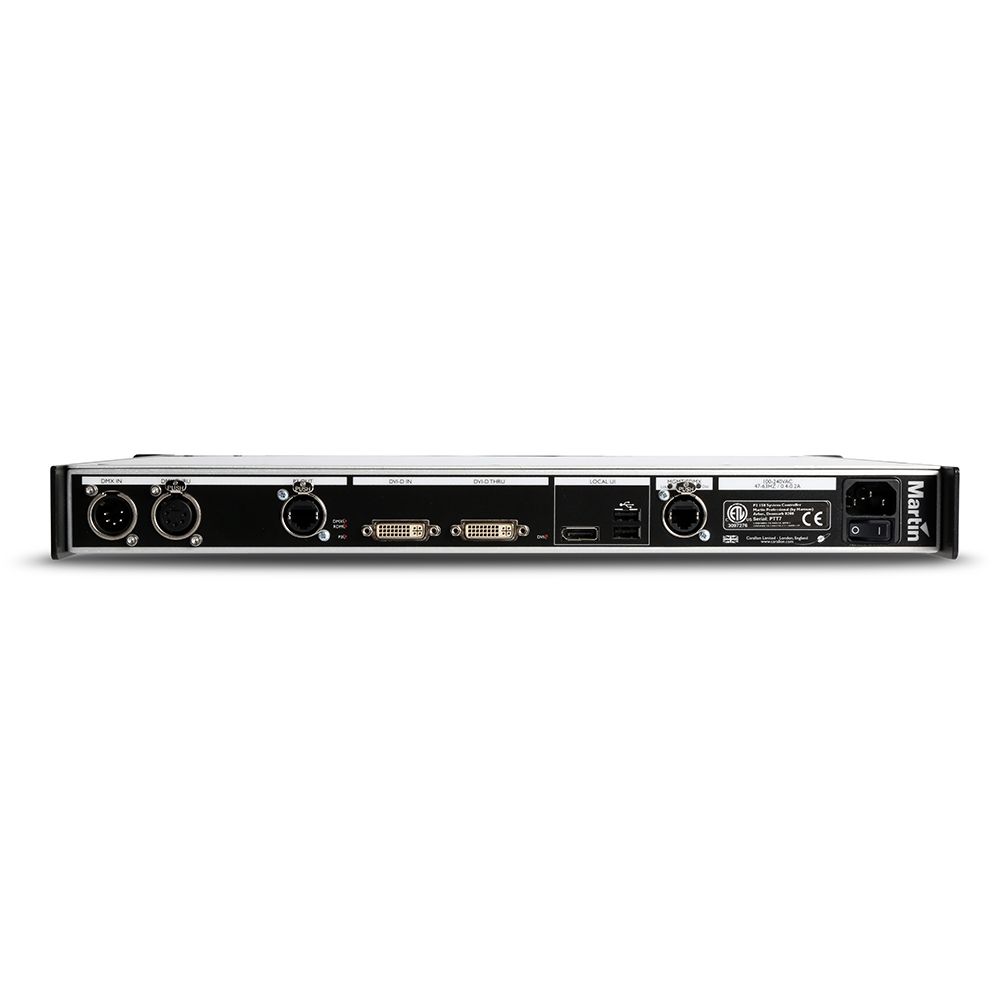

The P3-050 connects to the entire Martin P3 ecosystem via Gigabit Ethernet (etherCON) supporting daisy-chain configurations of up to 50 fixtures per run, extendable via Ethernet switch. Dual control pathways—DMX in/thru on 5-pin XLR and DVI video in/thru—allow real-time crossfading between video mapping and DMX pixel control, giving you instant switching options on the fly. A full 1920×1080 monitor output plus four USB 2.0 ports support dedicated peripherals for on-site operation and visualization, keeping you in command during load-in and show time.
Key Features
- 19" rackmount 1U form factor (482.6 mm W × 44.45 mm H × 360.0 mm D)
- 3.0 kg (6.7 lbs.) weight with steel and aluminum housing, matte black finish
- DVI-D video input supporting Full HD resolution up to 1920×1080 at 60fps progressive
- Drives up to 100,000 pixels across up to 2,000 fixtures
- 16-bit per-color system processing depth (48 bits per pixel) with 8-bit RGB 4:4:4 color sampling
- 2-frame system latency with zero latency between first and last fixture
- Gigabit Ethernet P3 connectivity (etherCON) with 100 m maximum cable length
- DMX and Art-Net integration for seamless lighting control automation
- Built-in GUI with real-time visualization and easy setup wizards
- Four USB 2.0 ports plus monitor output (VGA, DVI, HDMI, or DisplayPort)
- IP20 protection rating; indoor or outdoor use (protected from elements)
- IEC power input with integrated power switch; 19" rackmount or free-standing orientation
The P3-050 delivers professional-grade video-to-pixel control in a compact, road-ready package fully compatible with Martin's Creative LED and P3-enabled MAC product lines. Build confidence in your rig knowing this processor handles the heavy lifting so you can concentrate on the show.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin P3-050 is a rackmount video processor that drives large-scale LED lighting systems up to 100,000 pixels across 2,000 fixtures, making it essential gear for touring productions, festival rigs, and permanent installations requiring synchronized video and DMX control. Built-in GUI and real-time visualization handle complex pixel mapping without steep learning curves, while dual control pathways (DMX and Art-Net) let you crossfade between video content and lighting cues on the fly. Choose it for road-tested reliability, minimal footprint in tight rack spaces, and seamless integration with Martin's P3 ecosystem—ideal for productions that demand tight sync between video playback and lighting response.
Frequently Asked Questions
What video formats and resolutions does the P3-050 support?
The P3-050 accepts Full HD video input via DVI-D up to 1920×1080 at 60fps progressive scan with 8-bit RGB 4:4:4 color sampling. It scales that video across systems up to 100,000 pixels and maintains 16-bit per-color processing depth (48 bits per pixel) internally for color fidelity.
How many fixtures can this controller drive, and how far can they be from the unit?
The P3-050 drives up to 2,000 fixtures and scales video to control up to 100,000 pixels total. Gigabit Ethernet connectivity (etherCON) supports daisy-chain runs of up to 50 fixtures per cable with a 100 m maximum cable length; additional fixtures require an Ethernet switch.
Can I control this unit with both video input and DMX at the same time?
Yes. Dual control pathways let you route both DVI video and DMX in/thru on separate 5-pin XLR connections, and the built-in GUI allows real-time crossfading between video mapping and DMX pixel control modes.
What are the physical dimensions and power requirements?
The P3-050 is a 19-inch rackmount 1U unit measuring 482.6 mm wide × 44.45 mm tall × 360.0 mm deep and weighs 3.0 kg (6.7 lbs). It uses IEC power input with an integrated switch and can operate in rackmount or free-standing orientation.
What monitoring and setup tools are included?
The unit includes a built-in GUI with real-time visualization and setup wizards, plus a full 1920×1080 monitor output (VGA, DVI, HDMI, or DisplayPort) and four USB 2.0 ports to connect peripherals and peripherals for on-site operation and visualization.
