Martin VC-Grid 30 Creative 8x8 LED Video Tile 4 Pack
Out of stock
- SKU
- 90357550HU
Description

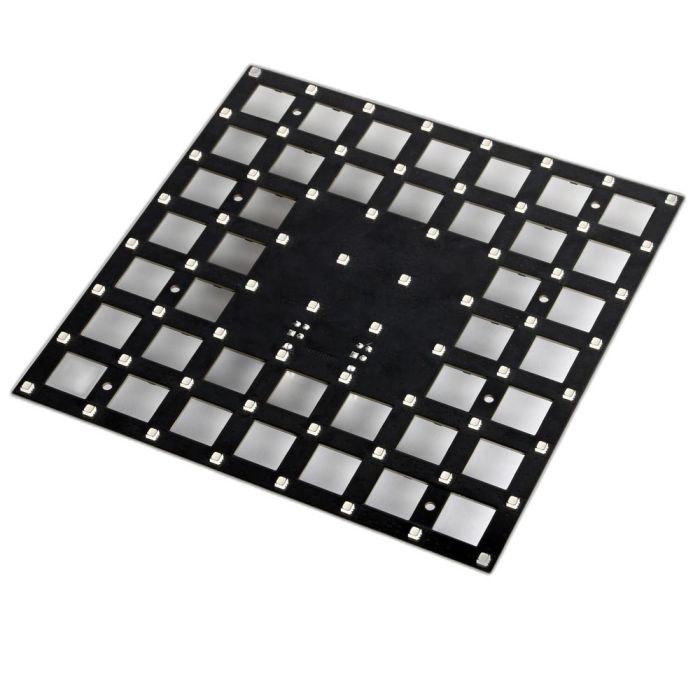

Martin VC-Grid 30 Creative 8x8 LED Video Tile 4 Pack
The VC-Grid 30 delivers compact, pixel-perfect LED video capability in a modular 240 x 240 mm format. These tiles integrate seamlessly into stage designs, set elements, creative installations, and architectural spaces, offering maximum artistic flexibility with minimal setup complexity. The 4-pack configuration enables rapid scaling of custom video solutions without the constraints of traditional large-format displays.
Display Performance & Brightness
Each module produces 2750 nits of calibrated output and 8250 lumens per square meter, ensuring vibrant, consistent imagery across multi-tile installations. Pixel-level brightness and color calibration deliver optimal image quality and color matching between modules, critical for seamless tiling and professional presentations.
Architecture & Control Flexibility
The 8x8 LED array with 30 mm pixel pitch provides 64 individually controllable pixels per tile, supporting both Martin P3 protocol and direct DMX control with real-time mode toggling. Up to 12 modules can be daisy-chained via single 4-pin Molex connectors for combined power and data, eliminating cable clutter and reducing installation time.
Key Features
- 8x8 LED array with 64 individually controllable pixels per tile
- 30 mm pixel pitch for balanced visibility and installation flexibility
- 2750 nits peak brightness in calibrated mode
- 8250 lumens per square meter luminous output
- 240 x 240 mm compact form factor for architectural integration
- Martin P3 protocol and DMX control with hybrid toggle capability
- 48 VDC nominal input (25 W maximum power consumption)
- 4-pin Molex connectors for combined power/data input and thru-connection
- 44% transparency through unmasked areas for layered visual effects
- IP20 protection rating and RoHS compliant construction
- Daisy-chain up to 12 modules per chain for scalable installations
- 16-bit per color image processing for professional color depth
This 4-pack of VC-Grid 30 modules delivers broadcast-quality LED video in a modular, daisy-chainable format ideal for designers and integrators building custom visual installations with precision control and minimal infrastructure.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin VC-Grid 30 is a modular LED video tile system—four 8x8 pixel units that daisy-chain together to build custom stage backdrops, set pieces, and live visual installations with broadcast-quality brightness and color accuracy. For live-sound crews and stage designers, it offers fast setup, DMX or Martin P3 control, and seamless tiling across multiple modules without complex cabling. Choose it when you need flexible, pixel-perfect LED graphics that scale with your rig and integrate cleanly into any venue or touring setup.
Frequently Asked Questions
What control protocols does the VC-Grid 30 support?
The VC-Grid 30 supports both Martin P3 protocol and direct DMX control with real-time mode toggling, allowing you to integrate it into existing lighting rigs or use dedicated LED control software.
How many tiles can I daisy-chain together?
Up to 12 modules can be daisy-chained via single 4-pin Molex connectors for combined power and data, allowing you to build larger video walls without additional cabling infrastructure.
What is the brightness and pixel pitch of each tile?
Each tile delivers 2750 nits of calibrated peak brightness, 8250 lumens per square meter, and features a 30 mm pixel pitch with 64 individually controllable pixels (8x8 array) for balanced visibility and seamless integration.
What power requirements does this 4-pack have?
The VC-Grid 30 operates on 48 VDC nominal input with a maximum power consumption of 25 watts per module, and uses 4-pin Molex connectors for both power and data distribution.
Can I see through the tiles for layered visual effects?
Yes, the unmasked areas offer 44% transparency, allowing you to layer LED graphics over stage elements or other visuals for creative depth and architectural integration.
