Martin VC-Strip 60 Creative 8x1 LED Video Strip
Description

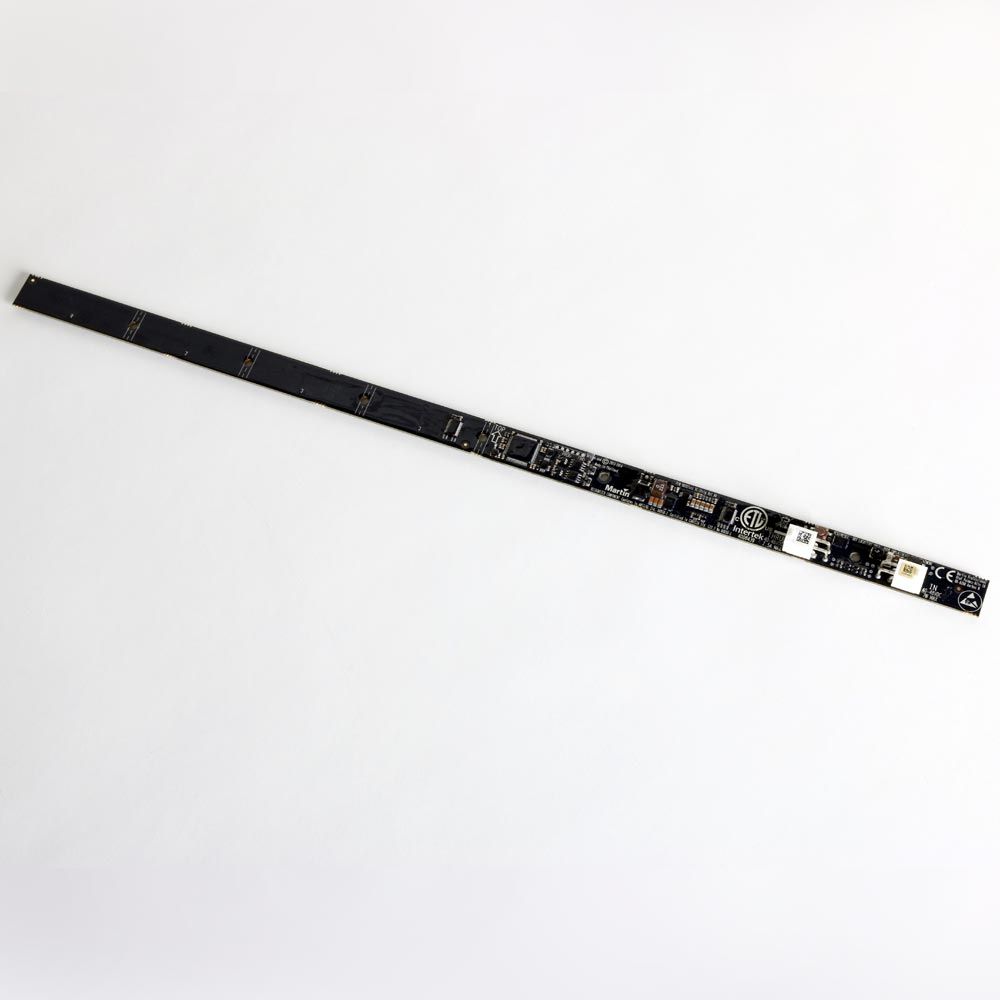

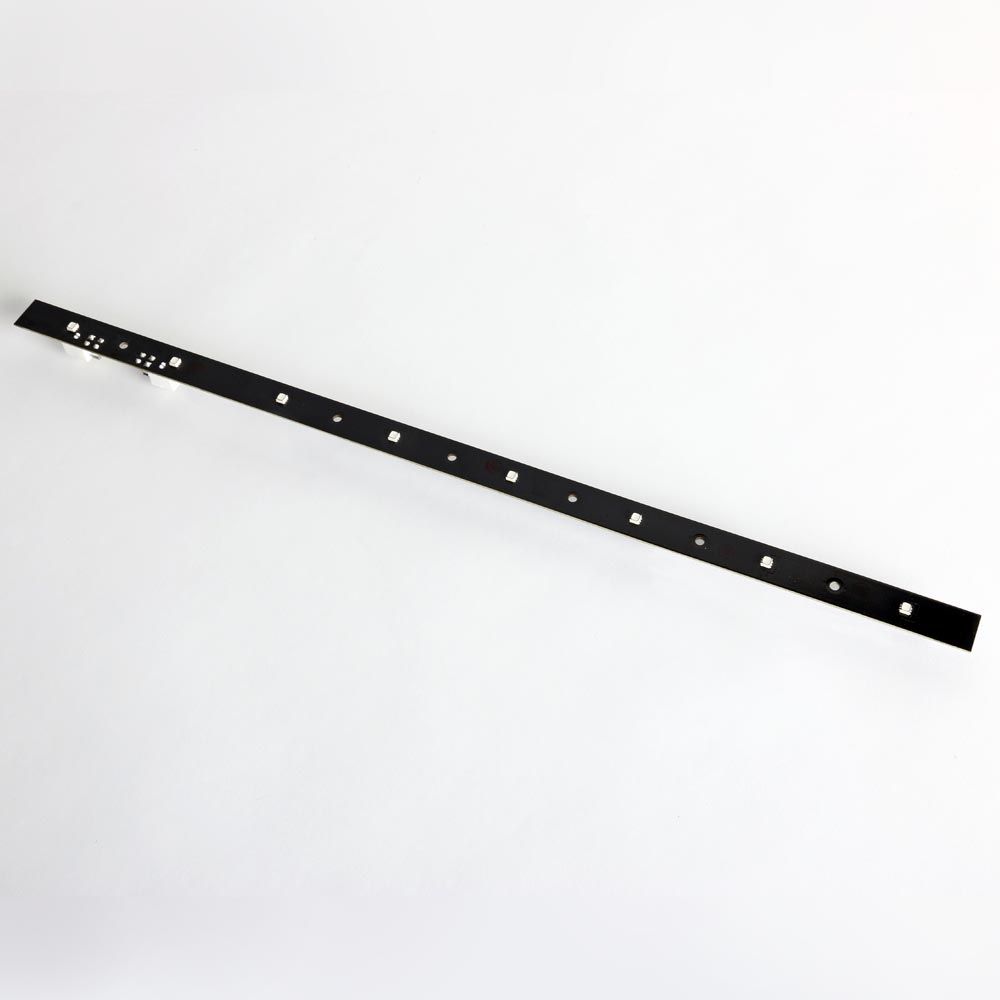

Martin VC-Strip 60 Creative 8x1 LED Video Strip
The VC-Strip 60 Creative delivers bright, calibrated LED output in a compact narrow-strip form factor designed for seamless integration into stage sets, interior installations, and custom design elements. Its modular construction with individually controllable pixels and field-cuttable length makes it a flexible solution for video mapping and dynamic lighting applications that demand precision color and brightness uniformity.
Optical Performance & Control Integration
This strip produces 750 nits of brightness with 135 lumen per meter output in calibrated mode, ensuring consistent image quality and color matching across installations. Pixel-level brightness and color calibration deliver optimal uniformity, while dual control architecture supports both Martin P3 System Controller with 16-bit per color processing and DMX control (8-bit, 24 channels in pixel mode), allowing real-time toggling between control modes via P3 Switch channel.
Design & Integration Flexibility
The 60mm pixel pitch with 8 individually controllable pixels per module balances visual resolution with scalable installation options. Combined 4-pin Molex power and data connectors simplify cabling, while support for daisy-chaining up to 63 modules and field-cuttable length accommodation enable custom on-site configuration without complex remapping.
Key Features
- 60mm pixel pitch center-to-center spacing
- 750 nits total brightness output (calibrated mode)
- 135 lumen per meter luminous output
- 8 individually controllable pixels per module
- 16-bit per color processing via P3 System Controller
- DMX control with 24 channels in pixel mode
- 120° x 120° viewing angle
- 48 VDC ±4% nominal input voltage
- IP20 protection rating with convection cooling

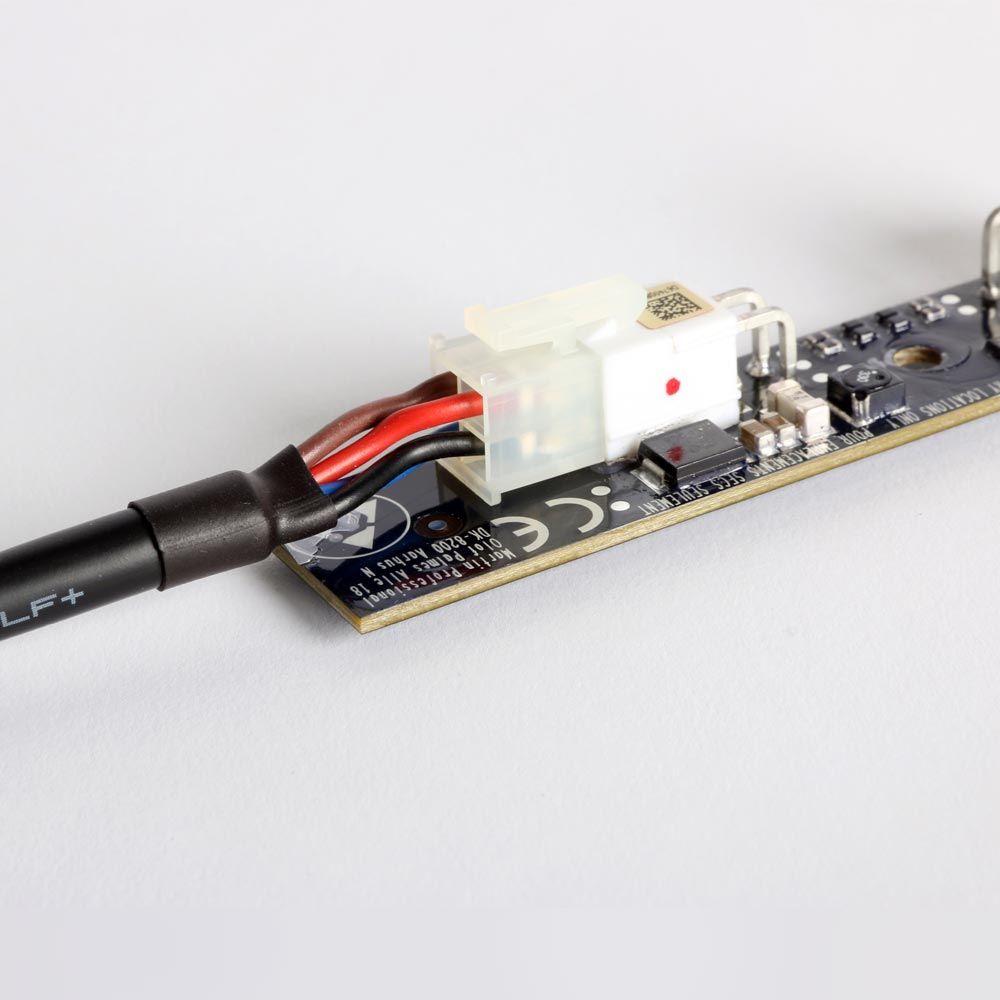

- 4-pin Molex power and data input/thru connectors
- Support for daisy-chaining up to 63 modules
- Field-cuttable length for custom integration
The VC-Strip 60 Creative combines calibrated optical performance with intuitive control and mechanical flexibility, making it a reliable choice for professional video mapping, set design, and architectural lighting installations.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin VC-Strip 60 Creative is a narrow-strip LED video light with 750 nits of brightness and pixel-level control, built for stage sets, live backdrops, and dynamic lighting design. It works with either the Martin P3 System Controller or standard DMX, supports field-cutting and daisy-chaining for custom configurations, and delivers uniform color and brightness across installations. Choose it for reliable, calibrated output that integrates seamlessly into touring rigs, venue installations, and performance environments where precise visual control matters.
Frequently Asked Questions
What control options does the VC-Strip 60 Creative support?
The strip supports dual control: the Martin P3 System Controller with 16-bit per color processing, or standard DMX control (8-bit, 24 channels in pixel mode). You can toggle between control modes in real-time via the P3 Switch channel.
Can I cut and customize the length of this strip for my installation?
Yes, the VC-Strip 60 Creative is field-cuttable, so you can trim it to fit your specific space on-site without complex remapping. You can also daisy-chain up to 63 modules to extend the length as needed.
What is the brightness and color output?
The strip produces 750 nits total brightness in calibrated mode with 135 lumen per meter output. Pixel-level brightness and color calibration deliver uniform image quality and consistent color matching across the installation.
What is the pixel pitch and how many pixels per module?
The VC-Strip 60 Creative has a 60mm pixel pitch center-to-center spacing with 8 individually controllable pixels per module, balancing visual resolution with flexible installation options.
What power and connectivity does it require?
The strip uses 48 VDC nominal input (±4%) and features 4-pin Molex connectors for both power and data input/thru, enabling simple cabling and daisy-chain connectivity between modules.
