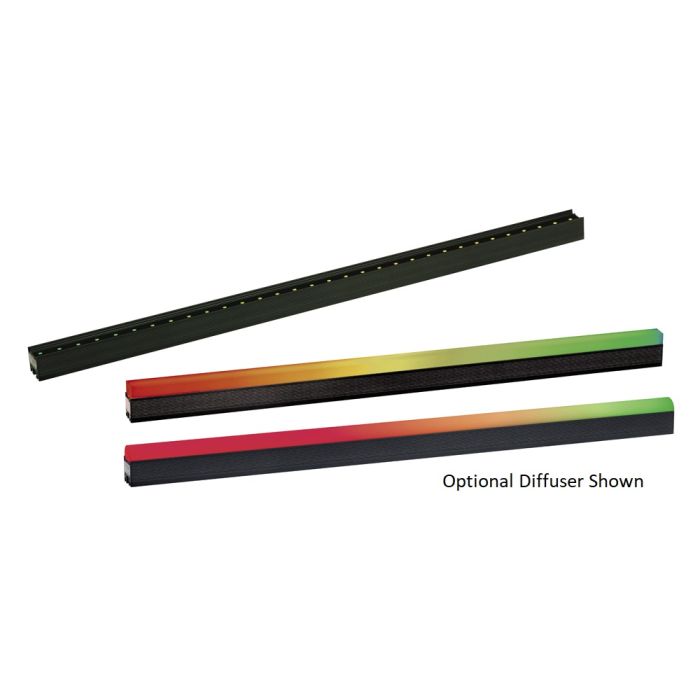

Martin VDO Sceptron 20 LED Video Batten 320 mm Long
Out of stock
- SKU
- 90357660HU
Description
Martin VDO Sceptron 20 LED Video Batten 320 mm
The VDO Sceptron 20 is a compact linear LED video fixture engineered for rental and touring applications where space efficiency and output consistency matter. Its 320 mm form factor delivers professional-grade brightness and color calibration in a footprint that integrates seamlessly into tight rigging scenarios, while field-exchangeable optics allow operators to dial in the exact visual character needed for each installation.
Optical Performance & Control
This fixture produces 375 lumens per meter at 125 cd per meter in calibrated mode, with pixel-level brightness and color uniformity across the 1 x 16 LED array at 20 mm pixel pitch. Dual refresh rates—1001 Hz in Standard Mode and 4004 Hz in High Refresh Mode—ensure flicker-free operation across all camera frame rates, while integrated 16-bit per color image processing guarantees smooth gradations and transitions.
Connectivity & Integration
The VDO Sceptron 20 operates via Martin P3 System Controller for full video mapping and real-time effects, while remaining backwards compatible with DMX for smaller setups. Integrated power and data cabling supports long daisy-chains with multiple fixtures per run, and the power supply can be positioned backstage up to 50 meters away, eliminating clutter and multiple driver boxes on set.
Key Features
- 320 mm length with 27 mm width and 28 mm height (without front diffuser)
- 1 x 16 LED array at 20 mm center-to-center pixel pitch
- 375 lumen per meter and 125 cd per meter in calibrated mode
- 6500 Kelvin CCT with 16-bit per color processing
- Dual refresh rates: 1001 Hz Standard / 4004 Hz High Refresh Mode
- 48 VDC +/- 4% input with maximum 5 W power consumption
- 6-pin custom BBD IP66-rated connectors for hot-pluggable power and data
- IP65 weatherproof rating with matte black extruded aluminum construction
- Field-exchangeable optical accessories (diffusers and lenses)
- P3 System Controller with VideoMapping and real-time DMX/P3 hybrid toggle
- RoHS, REACH, and WEEE compliant; 22.1 lm/W efficacy
- Weight: 0.40 kg without front / 0.50 kg with standard Square Diffuser
The VDO Sceptron 20 combines rental-grade durability, pixel-level calibration consistency, and flexible control architecture to deliver dependable video performance in compact, daisy-chainable form.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin VDO Sceptron 20 is a compact 320 mm linear LED video batten designed for touring and rental rigs where space and reliability are critical. Live sound and lighting crews will appreciate its 375 lumens-per-meter output, flicker-free dual refresh rates for all camera speeds, and field-swappable optics that let you dial in exactly the look you need on each stage. IP65 weatherproofing, daisy-chainable connectivity, and a remote power supply (up to 50 meters away) eliminate clutter and simplify rigging in tight venues.
Frequently Asked Questions
What refresh rates does the VDO Sceptron 20 support, and will it work with different camera frame rates?
The fixture offers dual refresh rates: 1001 Hz in Standard Mode and 4004 Hz in High Refresh Mode. Both modes ensure flicker-free operation across all standard camera frame rates, thanks to integrated 16-bit per color image processing that guarantees smooth gradations and transitions.
How is this fixture powered and controlled on a live gig or in a studio setup?
The VDO Sceptron 20 accepts 48 VDC power via 6-pin custom BBD IP66-rated connectors and consumes just 5 W maximum. It integrates with the Martin P3 System Controller for full video mapping and real-time effects, and remains backwards compatible with standard DMX for simpler setups. Power supplies can be positioned up to 50 meters away, reducing on-stage clutter.
Can I change the optical character of this fixture without swapping the whole unit?
Yes—the VDO Sceptron 20 features field-exchangeable optical accessories including diffusers and lenses, allowing you to adjust the beam spread and softness to match each production's visual requirements without breaking down the fixture.
What is the brightness output, and how bright does it appear on camera?
In calibrated mode, the fixture delivers 375 lumens per meter and 125 candelas per meter across its 1 x 16 LED array. Pixel-level brightness and color uniformity at 20 mm center-to-center spacing ensure consistent appearance on camera and in live video.
Is this fixture weatherproof for outdoor touring or rental use?
Yes—the VDO Sceptron 20 carries an IP65 weatherproof rating with a matte black extruded aluminum construction, making it suitable for rental, touring, and outdoor event applications. Its compact 320 mm length and daisy-chainable design simplify integration into mobile and fixed rigs.
