What is the output level and tone character of this pickup?

The SJB-2N Hot has a DC resistance of 15.02 kΩ with Alnico V rod magnets, delivering substantial high output while preserving articulation. Its 4.5 kHz resonant peak and balanced EQ voicing (4 Bass / 6 Mid / 4 Treble) produce a warm yet defined tone that cuts through without harshness.

Will this pickup fit my jazz bass and what's included?

The compact 3.6" × 0.72" footprint is sized for standard 4-string jazz bass neck cavities. Installation includes a single-conductor PVC cable, 2-wire connection, and logo cover; no routing or modification is required.

How does the hum cancellation work and is it potted?

The reverse-wound/reverse-polarity construction cancels hum while maintaining responsiveness, and the pickup is wax-potted to minimize feedback and microphonic noise. No battery or external power is needed—it's a fully passive design.

What genres and playing styles is this pickup best for?

The SJB-2N Hot excels in jazz, funk, and studio sessions, delivering clarity and punch ideal for intermediate, advanced, and professional players. It is not voiced for metal or hard rock applications.

How does this compare to other jazz bass neck pickups?

The SJB-2N Hot offers high output and hum cancellation in a compact format, bridging the gap between traditional jazz bass tone and modern clarity. Similar models include the SJB-2S Stack, Fender Original Jazz Bass Pickup, and Lindy Fralin Jazz Pickup, each with different output and EQ profiles.

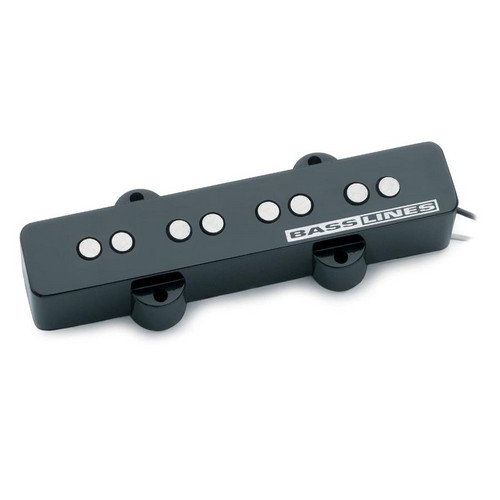

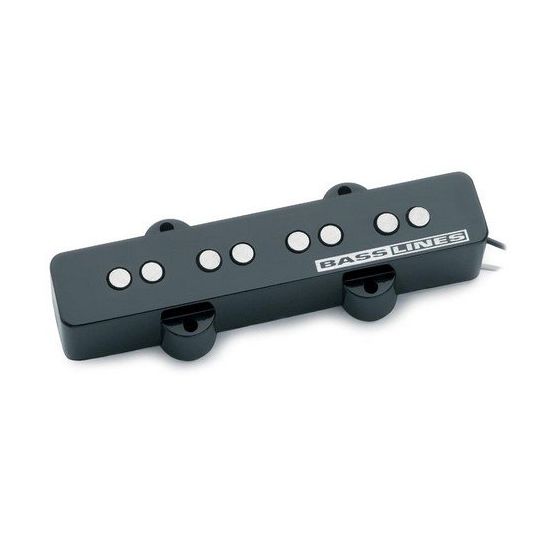

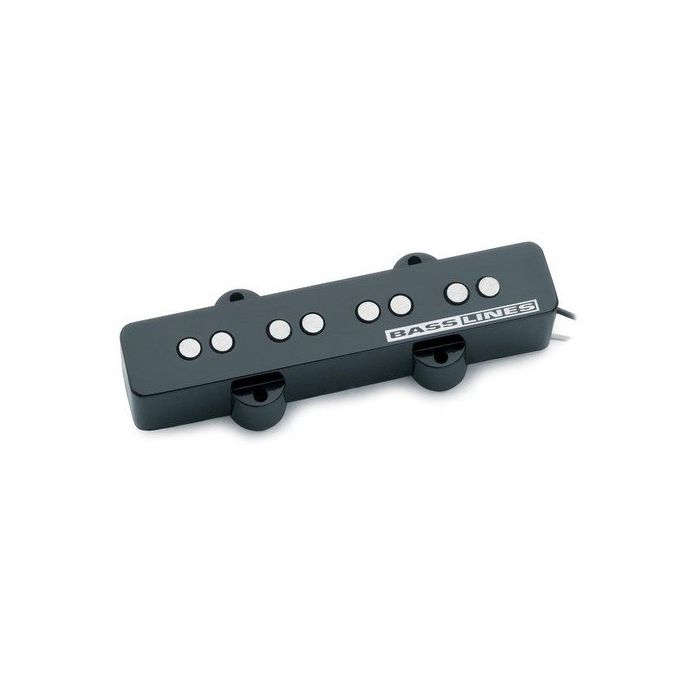

Seymour Duncan SJB-2N Hot 4-String Neck Pickup For Jazz Bass

The Seymour Duncan SJB-2N Hot is built for bass players who need articulate, punchy tone from the neck position without losing clarity or definition when you're on stage or in the studio. This reverse-wound/reverse-polarity design kills hum while keeping the responsiveness and presence that working players demand from a hot-output neck pickup. Robust construction and professional-grade materials mean it integrates into your existing jazz bass electronics and stays reliable night after night.

Tone & Output Character

A DC resistance of 15.02 kΩ with Alnico V rod magnets delivers substantial output while preserving note articulation across the entire frequency spectrum. The 4.5 kHz resonant peak paired with a balanced EQ voicing (4/6/4 Bass/Mid/Treble) produces a warm yet defined tone that cuts through a live mix without harshness, sitting well alongside drums and kick drum in any room.

Construction & Specifications

Potted in wax to minimize feedback and microphonic noise, the pickup features a compact 3.6" × .72" footprint that fits standard jazz bass neck cavities. The single-conductor PVC cable and included logo cover make installation straightforward, while the passive design requires no batteries or external power—one less thing to worry about on the road.

Key Features

DC Resistance: 15.02 kΩ (Neck)
Resonant Peak: 4.5 kHz
Alnico V rod magnets
EQ Profile: 4 Bass / 6 Mid / 4 Treble
Dimensions: 3.6" Long × .72" Wide (91.44mm × 18.29mm)
Reverse-wound/Reverse-polarity construction for hum cancellation
Wax potted for feedback reduction
Passive single-coil design (no battery required)
Single-conductor PVC cable
Includes logo cover
2-wire connection
4-string jazz bass neck position

The SJB-2N Hot combines balanced tonality with proven hum-canceling design, making it a solid upgrade for players chasing enhanced neck-position clarity and output without the hassle of re-routing or major modification.

Condition	New
Country of Manufacture	United States
