How does the D5 compare to the Shure SM58?

Both are supercardioid stage-proven dynamics, but the D5's variable-thickness Varimotion diaphragm delivers more articulate vocal clarity with less proximity effect, making it better for singers who move around the mic or work in dense mixes. The D5 also has tighter off-axis rejection and a presence peak optimized for cut-through.

Will this microphone work for studio vocal tracking?

Yes. The D5 captures full vocal range (20 Hz–17 kHz) with minimal proximity effect, making it reliable for clean overdubs and live-to-tape sessions. Its 147 dB SPL capacity also handles aggressive studio takes without clipping.

What's the polar pattern and why does it matter on stage?

The D5 uses a supercardioid pattern, which provides tight rejection of off-axis sound—monitor wedges, room reflections, and ambient crowd noise behind and to the sides of the mic are heavily reduced. This isolation helps prevent feedback and keeps vocals clean in loud live environments.

Do I need phantom power or batteries?

No. The D5 is a passive dynamic microphone that requires no external power, batteries, or phantom power—it connects directly to any standard mixing console or audio interface with a balanced XLR cable.

What accessories are included?

The D5 includes an integrated dual shock mount for handling-noise isolation, an integrated pop filter, and a spring-steel wire-mesh grille. You will need to purchase an XLR cable separately.

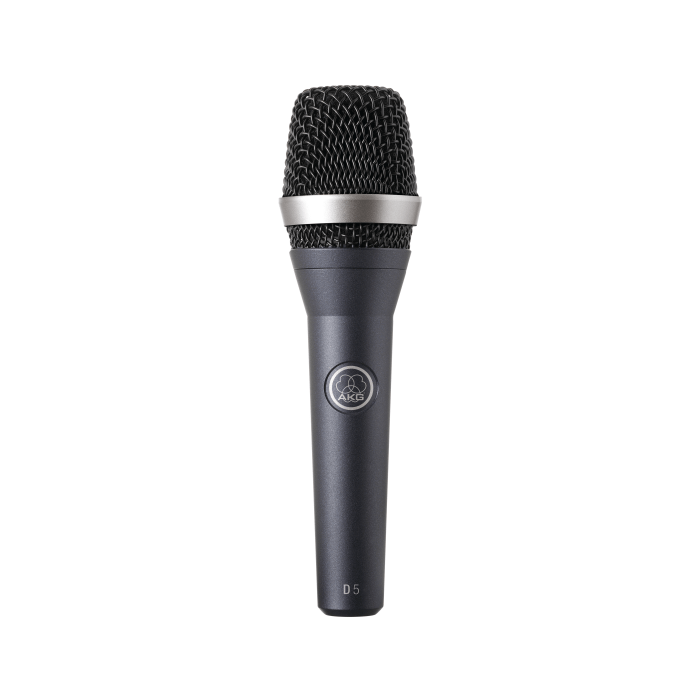

AKG D5 Professional Dynamic Vocal Microphone

The AKG D5 is a compact, hand-held dynamic microphone engineered for live vocal performance and studio work. Its supercardioid pattern and robust construction make it a reliable choice for touring musicians and sound engineers who demand consistent, articulate sound capture in demanding stage and venue environments.

Design & Build

Built around a variable-thickness laminated Varimotion diaphragm, the D5 delivers focused vocal articulation with minimal proximity effect coloration. The supercardioid polar pattern provides tight rejection of off-axis sound, making it essential for stage use where monitor bleed and crowd noise create challenges. Its rugged die-cast housing and spring-steel wire-mesh grille survive repeated touring, transit, and live handling, while the integrated dual shock mount isolates picking noise and stand vibration effectively.

Audio Performance

A frequency response of 20 Hz to 17 kHz captures the full tonal range required for natural vocal reproduction, with presence-peak characteristics suited to cutting through dense live mixes. The microphone's 147 dB SPL capacity handles aggressive singers and high-volume stage environments without distortion, while its 2.6 mV/Pa sensitivity and 600 Ohm electrical impedance ensure clean signal transfer to standard mixing consoles and live audio interfaces.

Key Features

Supercardioid polar pattern for tight rejection of off-axis sound
Variable-thickness laminated Varimotion diaphragm
Frequency response: 20 Hz to 17 kHz
Sensitivity: 2.6 mV/Pa
SPL capacity: 147 dB
Electrical impedance: 600 Ohms
Recommended load impedance: 2000 Ohms
Dual shock mount system
Integrated pop filter
Spring-steel wire-mesh grille
Rugged die-cast housing
Dynamic microphone (passive; no external power required)

The D5 combines proven engineering with practical durability, making it a workhorse microphone for vocalists and sound operators prioritizing direct, controlled sound capture on the road and in the studio.
