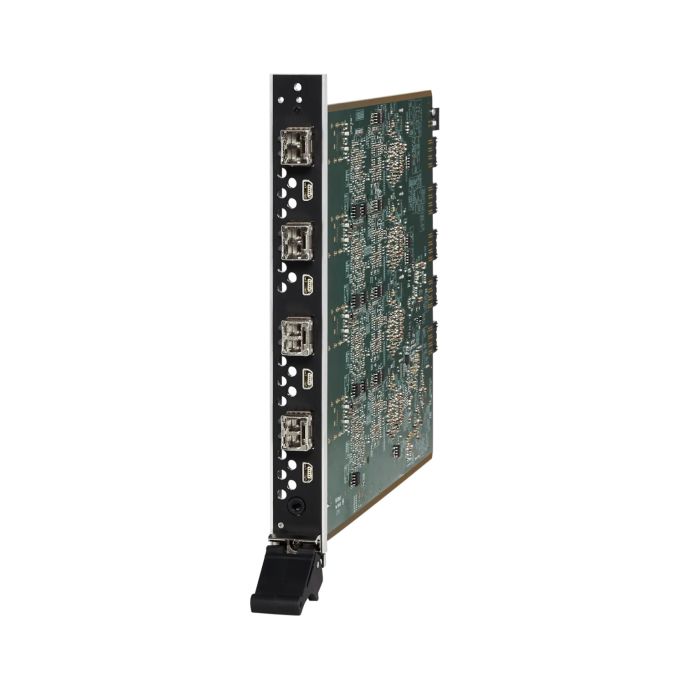

AMX DGX-O-DXFP-4K60 Enova DGX DXLink 4K60 Fiber Output Board
Share
- Brand new in original box
- Full AMX manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- FG1061-634
. Description
AMX DGX-O-DXFP-4K60 Enova DGX DXLink 4K60 Fiber Output Board
The AMX DGX-O-DXFP-4K60 is a professional fiber output expansion board purpose-built for live-sound operators, touring companies, and venue technical directors managing 4K video and multichannel audio distribution across extended distances. This output card slides directly into Enova DGX 100-Series enclosures, delivering four independent fiber-optic transmission paths without the need for external breakout boxes or extra rack space.
Transmission & Distance Capabilities
Each of the four outputs transmits complete audio, video, control, USB 2.0, and Ethernet signals over duplex fiber optic cable up to 300 meters, cutting through the distance limitations of traditional copper HDMI runs. The Multi-Mode Duplex (MMD) SFP connectors are user-replaceable, letting you upgrade to Single-Mode Duplex (SMD) SFP modules on site if extended-range or specialty fiber applications come up.
Video & Audio Specifications
Full 4K60 4:4:4 video with 36-bit Deep Color and HDR10 support runs across all four outputs simultaneously, with HDMI 2.0 and HDCP 2.2 compliance built in. Audio routing includes Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD MA, DTS-HD High Resolution, DTS, and 2–8 channel L-PCM, covering cinema, streaming, and immersive playback formats you'll encounter in live and touring applications.
Key Features
- Four independent fiber outputs with integrated audio, video, control, USB 2.0, and Ethernet transmission
- Supports 4K60 4:4:4 video with 36-bit Deep Color and HDR10
- HDMI 2.0 and HDCP 2.2 compliant
- Duplex LC Fiber connectors (ANSI TIA/EIA 604-10 / FOCIS 10A) on each output
- Multi-Mode Duplex (MMD) SFP modules standard; user-replaceable with Single-Mode Duplex (SMD) options
- Four Mini-USB AB ports for device connectivity
- Fiber transmission distance up to 300 meters per output
- Compatible with Enova DGX 100-Series enclosures and DXLink 4K60 receivers
- Dolby Atmos and Dolby TrueHD audio support
- DTS-HD MA and DTS-HD High Resolution audio support
The DGX-O-DXFP-4K60 consolidates multiformat video and audio routing with long-distance fiber distribution into a single modular card, keeping your system topology clean and your installation footprint minimal in demanding AV and live-sound environments.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX DGX-O-DXFP-4K60 is a professional fiber output expansion board that slots into Enova DGX enclosures to send four independent 4K60 signals with embedded audio, video, control, USB, and Ethernet over fiber-optic cable up to 300 meters. Built for AV integrators and live-event installers who need to distribute high-bandwidth content across large venues or fixed installations without distance constraints. Choose it when copper runs won't reach and you need bulletproof signal integrity across multiple points.
Who This Is For
Great for
- ✓ AV system integration
- ✓ Live event production
- ✓ Fixed installation
- ✓ Long-distance signal distribution
Not the best pick for
- – Portable/mobile applications
- – Budget-constrained installations
- – Single-point-to-point short-distance runs
Skill level: Professional
Frequently Asked Questions
What formats and codecs does this board support?
The DGX-O-DXFP-4K60 transmits 4K60 4:4:4 video with 36-bit Deep Color, HDR10, HDMI 2.0, and HDCP 2.2 compliance. Audio support includes Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD MA, DTS-HD High Resolution, DTS, and 2–8 channel L-PCM.
How far can the fiber signal travel?
Each of the four outputs transmits complete audio, video, control, USB 2.0, and Ethernet signals over duplex fiber-optic cable up to 300 meters per run, eliminating the distance and bandwidth limits of copper HDMI.
Can I upgrade the fiber modules later?
Yes. The board ships with standard Multi-Mode Duplex (MMD) SFP connectors that are user-replaceable, so you can upgrade to Single-Mode Duplex (SMD) modules if extended-range or specialty fiber applications require it.
What equipment does this plug into?
The DGX-O-DXFP-4K60 is an expansion board that slots directly into Enova DGX 100-Series enclosures and is compatible with DXLink 4K60 receivers at the far end of the fiber run.
What else does the fiber carry besides video?
Each fiber output carries video, audio, control, USB 2.0, and Ethernet in a single cable, reducing physical installation footprint and consolidating multiple signal types onto one transmission path.
