AMX HPX-CPTS100-W Cable Passthru Spacer module for Hydraport
Description

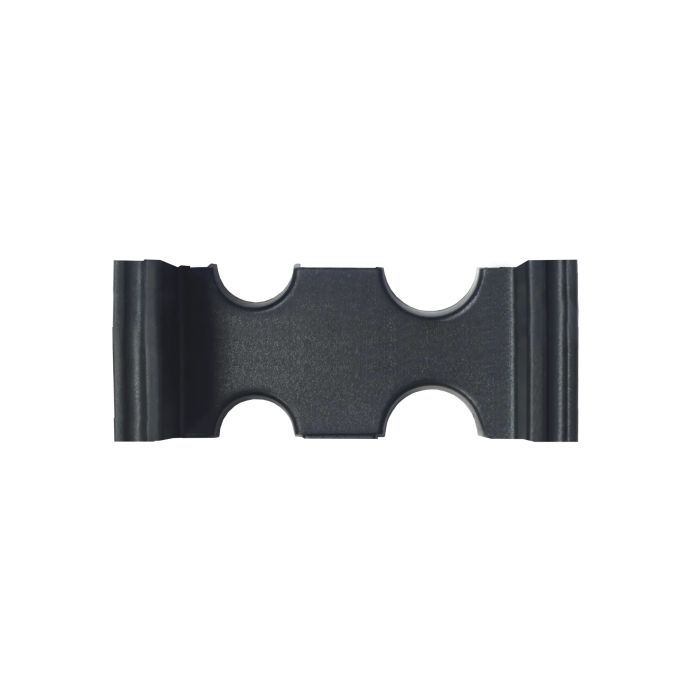

AMX HPX-CPTS100-W Cable Passthru Spacer Module for HydraPort
This passive spacer module integrates seamlessly into AMX HydraPort chassis systems, expanding cable management capacity without adding complexity or power draw. The HPX-CPTS100-W slides directly into a single HydraPort slot and works transparently with existing infrastructure, making it essential for sound engineers and venue techs managing multiple cable runs in compact rack environments.
Cable Management & Integration
The module adds two circular openings to the standard two openings already present in HydraPort chassis, yielding a total of four pass-thru points for cable routing. The dual aperture sizes—11.5mm small and 14mm large diameter holes—accommodate various connector types and cable gauges, providing flexibility for mixed live-sound installations without requiring adapter plates or secondary routing solutions.
System Compatibility & Design
Engineered as a passive spacer with zero power requirements, this module operates entirely through mechanical integration. It occupies one HydraPort Unit slot and maintains full compatibility with AMX HPX-600, HPX-900, and HPX-1200 chassis, ensuring drop-in installation across the current HydraPort product line.
Key Features
- Two additional circular cable pass-thru openings for expanded routing capacity
- Accommodates total of four cables when combined with existing HydraPort openings
- Small pass-thru hole size: 11.5mm diameter
- Large pass-thru hole size: 14mm diameter
- Utilizes one HydraPort Unit slot
- Compatible with AMX HPX-600 chassis
- Compatible with AMX HPX-900 chassis
- Compatible with AMX HPX-1200 chassis
- Passive spacer module—no power requirements
- Enables flexible multi-gauge cable management in professional installations
This straightforward yet essential component solves cable management constraints in HydraPort systems without introducing additional complexity or dependencies.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX HPX-CPTS100-W is a passive cable management spacer module that slides into any HydraPort chassis to add two extra cable pass-thru openings, bringing your total routing capacity to four ports with dual aperture sizes (11.5mm and 14mm) for mixed connector types. It's built for live-sound installers and system integrators who need to run multiple cables through tight rack spaces without adding power draw or complexity. Choose it to keep your cable runs organized and your HydraPort chassis working cleanly across HPX-600, HPX-900, and HPX-1200 systems.
Who This Is For
Great for
- ✓ Install Audio
- ✓ System Integration
- ✓ Rack Management
Skill level: Professional
Frequently Asked Questions
What HydraPort chassis models is this compatible with?
The HPX-CPTS100-W works with AMX HPX-600, HPX-900, and HPX-1200 chassis. It occupies one HydraPort Unit slot and installs as a direct drop-in without modifications.
How many cables can this module handle, and what sizes?
Combined with the two existing openings in the HydraPort chassis, this spacer adds two more pass-thru points for a total of four routing channels. The module includes both 11.5mm small and 14mm large diameter holes to accommodate different cable gauges and connector types.
Does this module require power or consume any power?
No. The HPX-CPTS100-W is a completely passive mechanical spacer with zero power requirements, making it ideal for installations where power budget or signal integrity is a concern.
What's the advantage of having dual aperture sizes?
The two different hole sizes (11.5mm and 14mm) let you route multiple cable gauges and connector families through a single module without needing adapter plates or secondary routing solutions, keeping your rack clean and reducing installation labor.
