AMX HPX-N102-RJ45 Dual RJ-45 module for Hydraport
Description

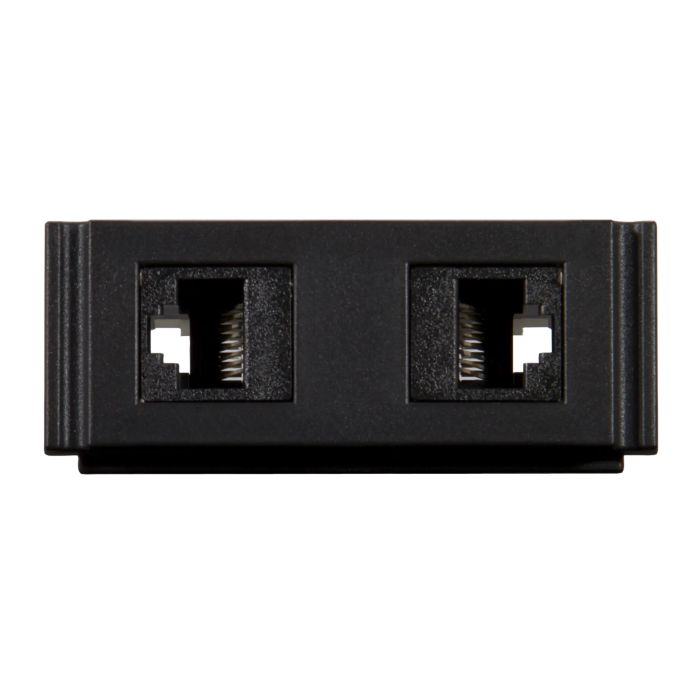

AMX HPX-N102-RJ45 Dual RJ-45 Module for HydraPort
The HPX-N102-RJ45 is a compact networked audio/video interface module designed for integration into AMX HydraPort chassis systems. This dual RJ-45 module provides straightforward Cat6 connectivity and occupies minimal physical space, making it a practical addition to modular AV installations that require standardized network integration.
Connectivity & Integration
This module brings two independent Cat6 RJ-45 connections to your HydraPort setup, with both front-panel connectors and rear punch-down blocks for flexible installation approaches. The dual-port design accommodates multiple network feeds or redundant signal paths within a single module footprint, ideal for venues running distributed audio systems or multi-room live-sound setups.
Physical Format & Installation
The HPX-N102-RJ45 slots directly into a HydraPort chassis, consuming exactly one unit of vertical space. This modular architecture lets you build out only the connectivity your venue or touring rig needs, keeping rack real estate focused on what matters for your show.
Key Features
- Two Cat6 RJ-45 connections
- Front panel: Two (2) RJ-45 connectors
- Rear panel: Two (2) 8-position punch-down blocks
- Occupies 1 HydraPort Unit of space
- Direct integration with HydraPort chassis
- Standardized network protocol support via Cat6
- Flexible front and rear connection options
- Compact modular form factor
The HPX-N102-RJ45 delivers straightforward network connectivity for live installations and permanent venues where HydraPort modularity and Cat6 standardization are required.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX HPX-N102-RJ45 is a dual RJ-45 network interface module that slots into AMX HydraPort chassis systems, providing two Cat6 connections for audio/video distribution in fixed installations. Built for live-sound and AV systems integrators who need modular, standardized networking within a compact footprint, it offers both front-panel connectors and rear punch-down blocks for flexible wiring approaches. Choose this module when your installation demands reliable network integration without the overhead of separate interface hardware.
Who This Is For
Great for
- ✓ Live Sound Installation
- ✓ AV Systems Integration
- ✓ Networked Audio/Video Distribution
Not the best pick for
- – Portable Live Sound
- – Home Studio
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What is this module, and what does it do?
The HPX-N102-RJ45 is a networked audio/video interface card that fits into an AMX HydraPort chassis. It provides two Cat6 RJ-45 connections—one pair on the front panel and one pair on rear punch-down blocks—allowing you to route network signals (audio, video, or control data) into and out of your HydraPort system.
How much space does this take up in a HydraPort chassis?
The module occupies exactly 1 unit of vertical space within a HydraPort chassis, so it fits neatly alongside other modules without wasting rack real estate.
What are the connection options on this module?
You get two front-panel RJ-45 connectors for direct patching and two 8-position punch-down blocks on the rear panel, giving you flexibility to hardwire permanent installations or use quick-connect front approaches.
Is this module suitable for portable live-sound setups?
No—this module is designed for fixed AV and live-sound installations where the HydraPort chassis is mounted permanently. It is not intended for portable or temporary live-sound applications.
What skill level do I need to install this?
Installation requires intermediate to advanced technical knowledge of HydraPort systems and network infrastructure; this is a professional-grade integration component best installed by experienced AV technicians.
